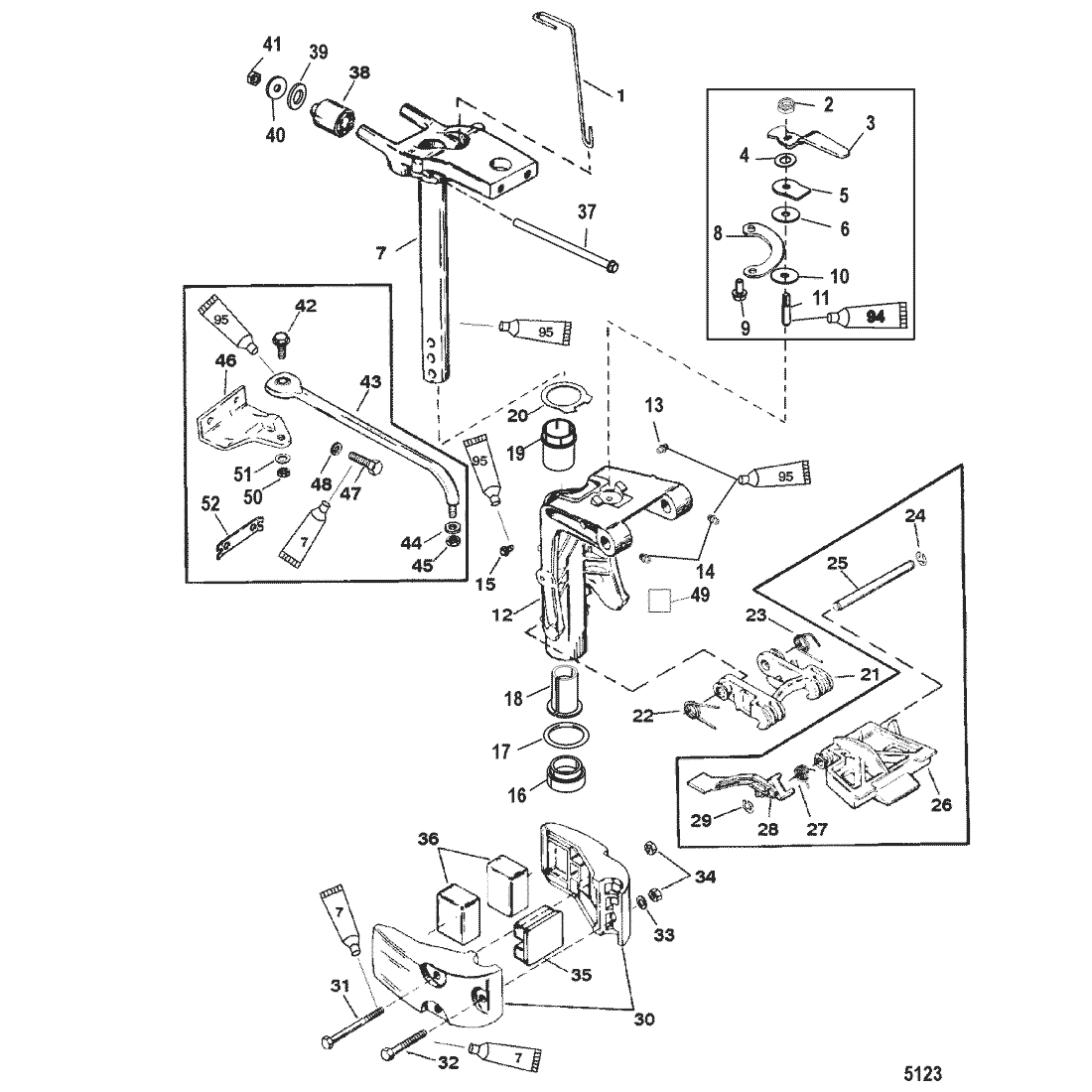

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 165541 ROD, Reverse Hook ACT $42.49 $41.57 1
2 8M0204726 NUT, (.375-24) Stainless Steel 826709113 SS $1.80 $1.76 1
3 821959 HANDLE ACT $18.29 $17.92 1
4 29330 WASHER ACT $1.50 $1.47 1
5 821957 BRAKE PLATE ACT $18.79 $18.42 1
6 8165621 DISC ACT $18.29 $17.85 1
7 822238A9 SWIVEL HEAD ACT $74.98 $72.12 1
8 821958A1 --PLATE KIT ACT $25.99 $25.45 1
9 40011126 --SCREW, (M6 x 13) Stainless Steel ACT $3.69 $3.59 2
10 8165621 DISC ACT $18.29 $17.85 1
11 821961 ROD ACT $15.59 $15.22 1
12 822237A3 SWIVEL BRACKET ACT $631.99 $594.25 1
13 8M0169589 --FITTING, Grease 74036 SS $4.79 $4.69 1
14 8M0169589 --FITTING, Grease 74036 SS $4.79 $4.69 2
15 8M0169589 --FITTING, Grease 74036 SS $4.79 $4.69 1
16 85154A1 --BUSHING KIT ACT $18.49 $18.17 1
17 86993 ----O-RING ACT $5.59 $5.47 1
18 NSS ----NOT SOLD SEPARATE, Bushing $0.00 $0.00 1
19 NSS ----NOT SOLD SEPARATE, Bushing $0.00 $0.00 1
20 NSS ----NOT SOLD SEPARATE, Washer $0.00 $0.00 1
21 98830A3 HOOK ASSEMBLY, Reverse Lock NLA $0.00 $0.00 1
22 97427 --SPRING ACT $15.19 $14.83 1
22 879894 --SPRING ACT $7.19 $7.03 1
23 96018 --SPRING ACT $17.29 $16.94 1
24 13194 RING, Retaining ACT $1.23 $1.21 1
25 13195 PIN ACT $28.09 $27.58 1
26 12756 BRACKET ACT $44.99 $44.11 1
27 12754 SPRING ACT $7.09 $6.93 1
28 12758 LEVER ACT $13.39 $13.07 1
29 13194 RING, Retaining ACT $1.23 $1.21 1
30 17232A1 COVER ACT $106.49 $100.06 2
31 19943100 --SCREW, (M8 x 100) ACT $10.99 $10.73 2
32 1994360 --SCREW, (M8 x 60) ACT $8.29 $8.10 1
33 36001 --WASHER ACT $1.50 $1.47 3
34 400213 --NUT, (M8) Stainless Steel ACT $2.89 $2.82 3
35 85123001 BUMPER, Front ACT $27.49 $26.93 1
36 85122001 MOUNT, Lower ACT $21.49 $21.03 2
37 125161 SCREW, (M8 x 133) ACT $50.49 $48.50 2
38 14894 MOUNT NLA $0.00 $0.00 2
39 85172 WASHER, Upper Mount Screw ACT $5.89 $5.76 2
40 43430 WASHER ACT $3.19 $3.11 2
41 400213 NUT, (M8) Stainless Steel ACT $2.89 $2.82 2
42 849838 SCREW, (.375-24 x 1.250) ACT $22.09 $21.69 1
43 41323A03 ATTACHING KIT, Steering Link 41323A2 SS $140.16 $131.98 1
44 37828 WASHER, (.390 x .625 x .062) Stainless Steel ACT $0.80 $0.79 1
45 8M0204726 NUT, (.375-24) Stainless Steel 826709113 SS $1.80 $1.76 1
46 96186A2 BRACKET ASSEMBLY ACT $43.32 $42.55 1
47 1993325 --SCREW, (M10 x 25) ACT $7.16 $7.04 2
48 400248 --LOCKWASHER, (M10) ACT $1.70 $1.66 2
49 NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate $0.00 $0.00 1
50 8M0204726 NUT, (.375-24) Stainless Steel 826709113 SS $1.80 $1.76 1
51 37828 WASHER, (.390 x .625 x .062) Stainless Steel ACT $0.80 $0.79 1
52 96201 STRAP, Key (Included with Ride Guide Bracket) ACT $2.07 $2.03 1
- 41499A88 GASKET SET ACT $154.49 $145.26 1
