Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

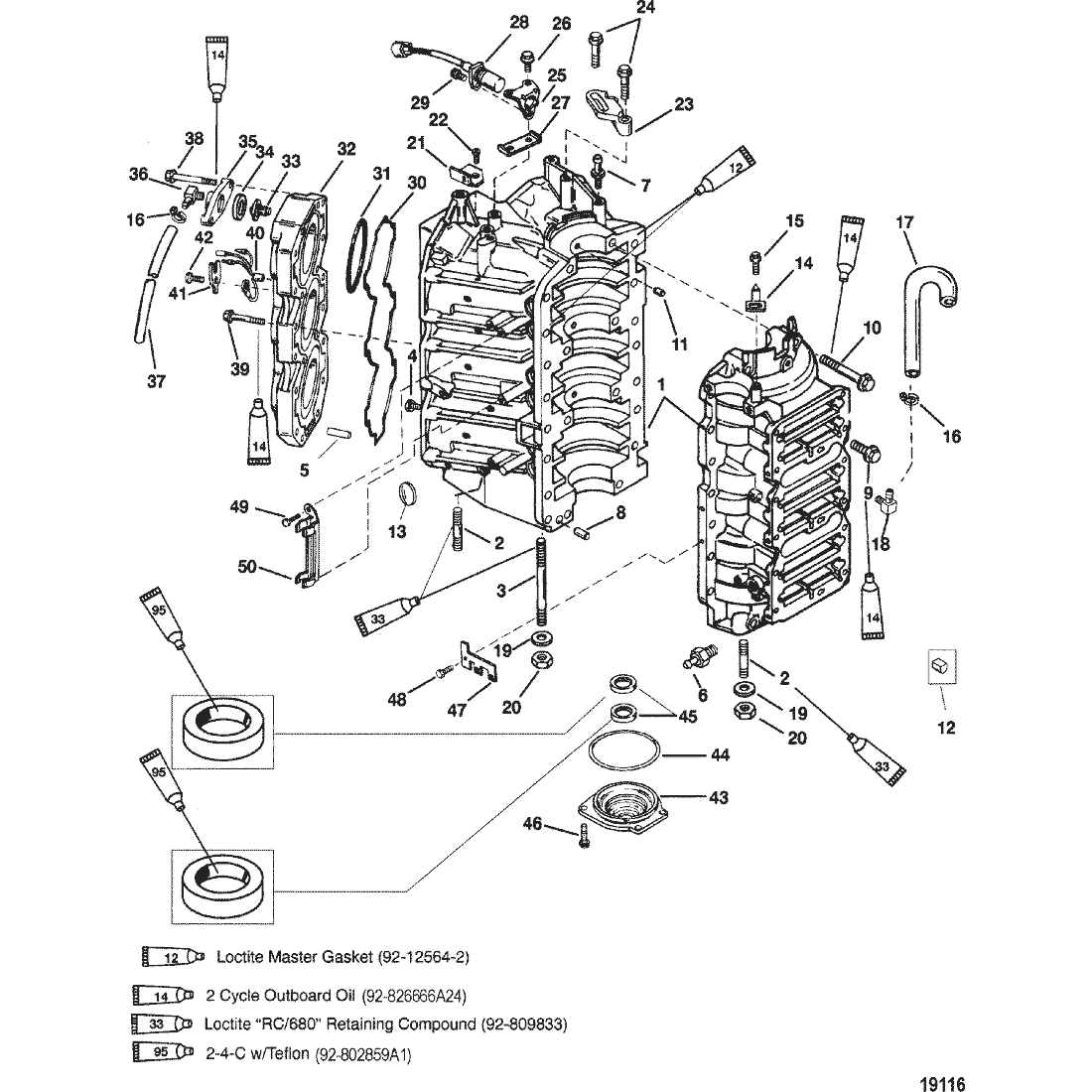

1 9811A57 CYLINDER BLOCK NLA $0.00 $0.00 1
1 9811A58 CYLINDER BLOCK NLA $0.00 $0.00 1
1 9811A19 CYLINDER BLOCK NLA $0.00 $0.00 1
2 903509 --STUD, (M10 x 1.5 x 64) ACT $17.89 $17.52 4
3 8154431 --STUD, (M10 x 1.5 x 155) ACT $33.99 $33.31 6
4 328022 --PLUG, Pipe (.125-27) Brass ACT $7.59 $7.42 1
5 8248577 --DEFLECTOR, Water 8248572 SS $2.59 $2.53 4
6 8781051 --CHECK VALVE 432783 SS $45.99 $45.09 1
7 8215832 --PIN 821583 SS $17.09 $16.78 2
8 43044 --PIN, Dowel - Without Hole (.375 x .625) ACT $2.49 $2.43 1
9 81893435 --SCREW, (M8 x 35) ACT $3.99 $3.91 14
10 82446180 --SCREW, (M10 x 80) ACT $15.69 $15.31 8
11 8M0036405 --PIN 67296 SS $4.39 $4.30 3
12 850309001 --PLUG 850309 SS $2.39 $2.33 6
13 NSS NOT SOLD SEPARATE, Plug-Serial Number $0.00 $0.00 1
14 8217621 TIMING POINTER NLA $0.00 $0.00 1
15 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 1
16 816311T TIE STRAP, (8.00 Inches) ACT $0.60 $0.59 AR
17 826544A1 TUBING KIT NLA $0.00 $0.00 1
18 687271 --FITTING, (.250-18) 90 Degree - Brass ACT $31.99 $31.34 1
19 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 10
20 4013610 NUT, (M10) Stainless Steel ACT $7.79 $7.61 10
21 8256751 BRACKET NLA $0.00 $0.00 1
22 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 1
23 8211051 BRACKET, Alternator ACT $17.09 $16.68 1
24 81893450 SCREW, (M8 x 50) ACT $5.29 $5.17 2
25 8212251 BRACKET NLA $0.00 $0.00 1
26 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 2
27 822486 BRACKET, Guide NLA $0.00 $0.00 1
28 821909 SENSOR ACT $148.99 $139.93 1
29 82104510 SCREW, (M5 x 10) ACT $1.10 $1.08 1
30 818574 SEAL, Cylinder Head ACT $27.69 $27.17 2
31 818573 O-RING ACT $16.99 $16.62 6
32 812851A16 CYLINDER HEAD NLA $0.00 $0.00 2
32 812851A2 CYLINDER HEAD NLA $0.00 $0.00 1
33 833072003 THERMOSTAT, 62° Celsius (143° Fahrenheit) 833072 SS $52.49 $50.34 2
34 8M0204714 GASKET, Thermostat 62386 SS $2.89 $2.82 2
35 19801A1 THERMOSTAT COVER ACT $54.99 $52.88 1
36 8167811 --ELBOW ACT $9.09 $8.88 2
37 77653101 HOSE, (48.00 Inches Bulk) (19 IN.) ACT $61.99 $59.56 1
37 77653101 HOSE, (48.00 Inches Bulk) (20-1/2 IN.) ACT $61.99 $59.56 1
38 82446090 SCREW, (M8 x 90) ACT $17.79 $17.36 4
39 8M0045380 SCREW, (M8 x 50) 82446050 SS $6.89 $6.73 36
40 13536A14 SENSOR ASSEMBLY, Temperature ACT $62.99 $60.36 1
41 137151 RETAINER ACT $4.29 $4.20 1
42 81893414 SCREW, (M8 x 14) ACT $3.39 $3.30 1
43 9787A4 END CAP ASSEMBLY ACT $100.49 $94.57 1
44 62700 --O-RING, (3.237 x .103) ACT $3.99 $3.91 1
45 8308981 --SEAL ACT $27.39 $26.84 2
46 82130020 SCREW, (M6 x 20) ACT $2.69 $2.62 4
47 8261211 BRACKET NLA $0.00 $0.00 1
48 48408 SCREW, (#10-16 x .500) ACT $2.29 $2.25 1
49 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 2
50 8266241 CLAMP ACT $26.59 $26.11 1
- 809794R97 POWERHEAD ASSEMBLY 809794A97 NLA $0.00 $0.00 1
- 804799A00 POWERHEAD ASSEMBLY NLA $0.00 $0.00 1
- 804800R00 POWERHEAD ASSEMBLY 804800A00 NLA $0.00 $0.00 1
