Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

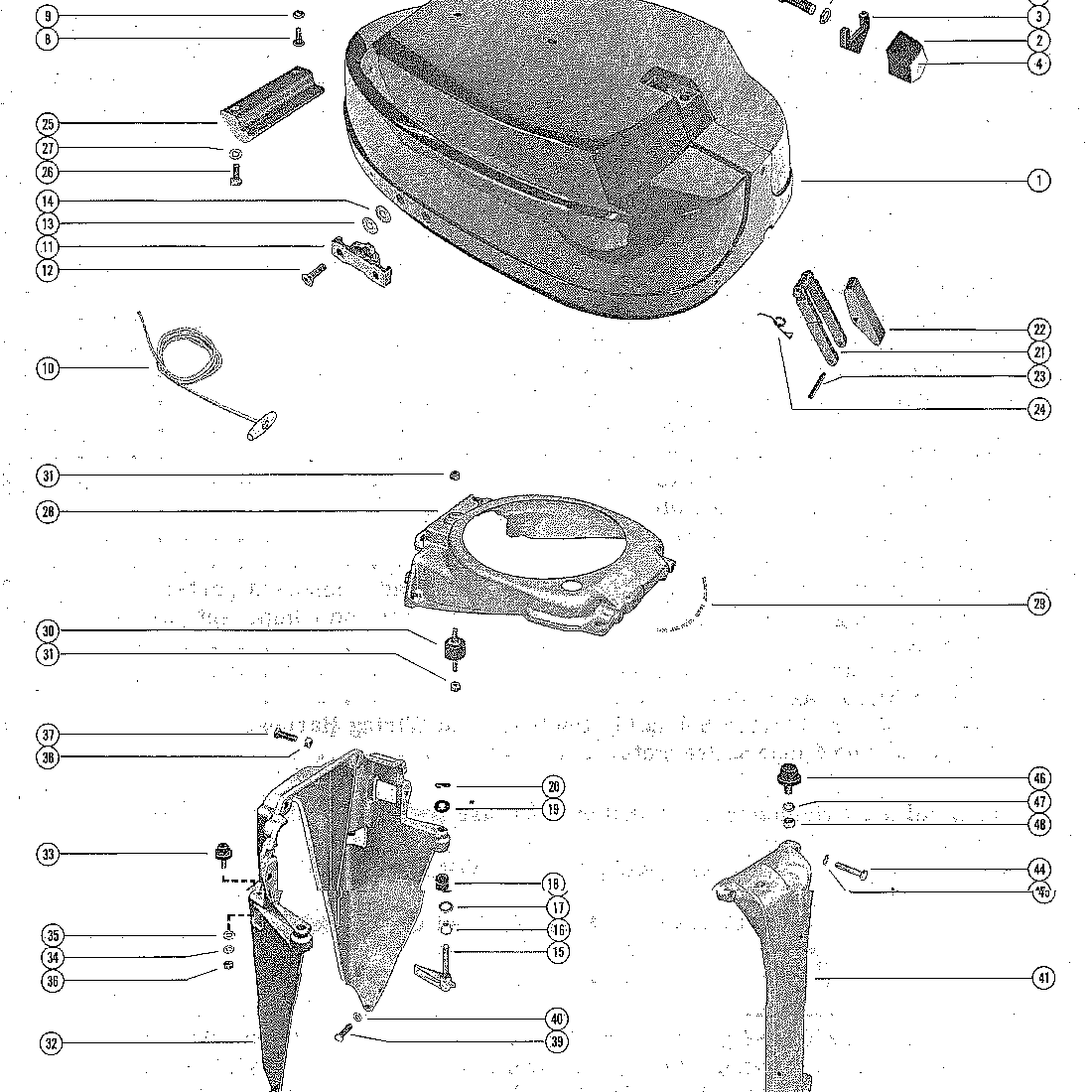

1 3806 COWL, TOP 3168 SS $0.00 $0.00 1,
1 3806 COWL, TOP 3591 SS $0.00 $0.00 ,1
2 47555A1 RETAINER ASSEMBLY, TOP COWL NLA $0.00 $0.00 1,
2 52733A9 RETAINER ASSEMBLY, TOP COWL 52733A1 SS $0.00 $0.00 ,1
3 35496 --PAD, BUMPER _ TOP COWL RETAINER NLA $0.00 $0.00 1,1
4 61018A1 --EMBLEM, TOP COWL RETAINER 46141 SS $0.00 $0.00 1,1
5 74824 SCREW, RETAINER TO TOP COWL (1 1/4") 37558 SS $1.80 $1.76 1,1
6 39107 LOCKWASHER, RETAINER TO TOP COWL SCREW ACT $1.50 $1.47 1,1
7 76370 SHIELD, SHIELD TO TOP COWL (5/8") 49448 SS $0.00 $0.00 1,1
8 37371 LOCKWASHER, SHIELD SCREW NLA $0.00 $0.00 3,3
10 47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY) 47341A1 SS $18.19 $17.84 1,1
11 46144 BRACKET, COWL LATCH TOP COWL FASTENING NLA $0.00 $0.00 2,
12 21091 SCREW, COWL LATCH BRACKET TO TOP COWL (1 1/8") NLA $0.00 $0.00 4,
13 37998 WASHER, LATCH BRACKET SCREW (1/16" THICK) ACT $0.70 $0.69 AR,
14 37998 WASHER, LATCH BRACKET SCREW (1/32" THICK) ACT $0.70 $0.69 AR,
15 37412 LEVER, CLAMPING - TO COWL MOUNTING NLA $0.00 $0.00 2,
16 26819 BUSHING, NYLON - CLAMPING LEVER NLA $0.00 $0.00 2,
17 38006 WASHER, CLAMPING LEVER NLA $0.00 $0.00 2,
18 31293 BUSHING, RUBBER - CLAMPING LEVER NLA $0.00 $0.00 2,
19 30428 FASTNER, CLAMPING LEVER NLA $0.00 $0.00 2,
20 29077 PIN, ROLL - CLAMPING LEVER NLA $0.00 $0.00 2,
21 52739 HINGE, COWL LATCH - TOP COWL NLA $0.00 $0.00 ,1
22 94918F1 LEVER, COWL LATCH HINGE 52737 SS $31.69 $31.10 ,1
23 58998 PIN, ROLL - COWL LATCH LEVER TO HINGE 33522 SS $7.01 $6.85 ,1
24 53019 SPRING, COWL LATCH HINGE NLA $0.00 $0.00 ,1
25 55455 HOOK, TOP COWL LATCH - REAR 52738 SS $0.00 $0.00 ,1
26 22956 SCREW, REAR HOOK TO TOP COWL (7/8") NLA $0.67 $0.66 ,2
27 26992 LOCKWASHER, REAR HOOK MOUNTING SCREW ACT $1.20 $1.18 ,2
28 79897A4 FRAME, TOP COWL SUPPORT 47271 SS $0.00 $0.00 1,1
29 45201 DECAL, TIMING NLA $0.00 $0.00 1,1
30 90435 MOUNT, RUBBER - TOP COWL FRAME 37639 SS $59.99 $56.51 3,3
30 46096 MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY) NLA $0.00 $0.00 OPT,OPT
31 8267089 NUT, RUBBER MOUNT TO TOP COWL FRAME 20361 SS $1.50 $1.47 6,6
32 47272 BRACKET, TOP COWL SUPPORT - REAR NLA $0.00 $0.00 1,1
32 54685 BRACKET, TOP COWL SUPPORT - REAR NLA $0.00 $0.00 1,
33 31014 MOUNT, RUBBER - REAR SUPPORT BRACKET NLA $0.00 $0.00 ,2
34 26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET ACT $1.20 $1.18 2,2
35 69057 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET 20346 SS $1.80 $1.76 2,2
36 20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET NLA $0.00 $0.00 2,2
37 26065 SCREW, REAR BRACKET TO TOP COWL FRAME (1") NLA $0.00 $0.00 4,4
38 29250 NUT, REAR BRACKET SCREW 46793 SS $2.89 $2.82 4,4
39 35386 SCREW, REAR BRACKET TO BOTTOM COWL (1") 24234 SS $1.10 $1.08 4,4
40 8M0204647 LOCKWASHER, REAR SUPPORT BRACKET SCREW 26993 SS $1.80 $1.76 4,4
41 47210A2 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT NLA $0.00 $0.00 1,
41 77116A1 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT 52725A2 SS $0.00 $0.00 ,1
42 78841 SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2") 22040 SS $0.00 $0.00 2,2
43 29250 NUT, FRONT SUPPORT BRACKET SCREW 46793 SS $2.89 $2.82 2,2
44 73657 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2") 20362 SS $3.39 $3.30 2,2
45 8M0204647 LOCKWASHER, FRONT SUPPORT BRACKET SCREW 26993 SS $1.80 $1.76 2,2
46 37640 MOUNT, RUBBER - FRONT SUPPORT BRACKET NLA $0.00 $0.00 1,1
47 8M0204647 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET 26993 SS $1.80 $1.76 1,1
48 22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET ACT $0.20 $0.20 1,1
