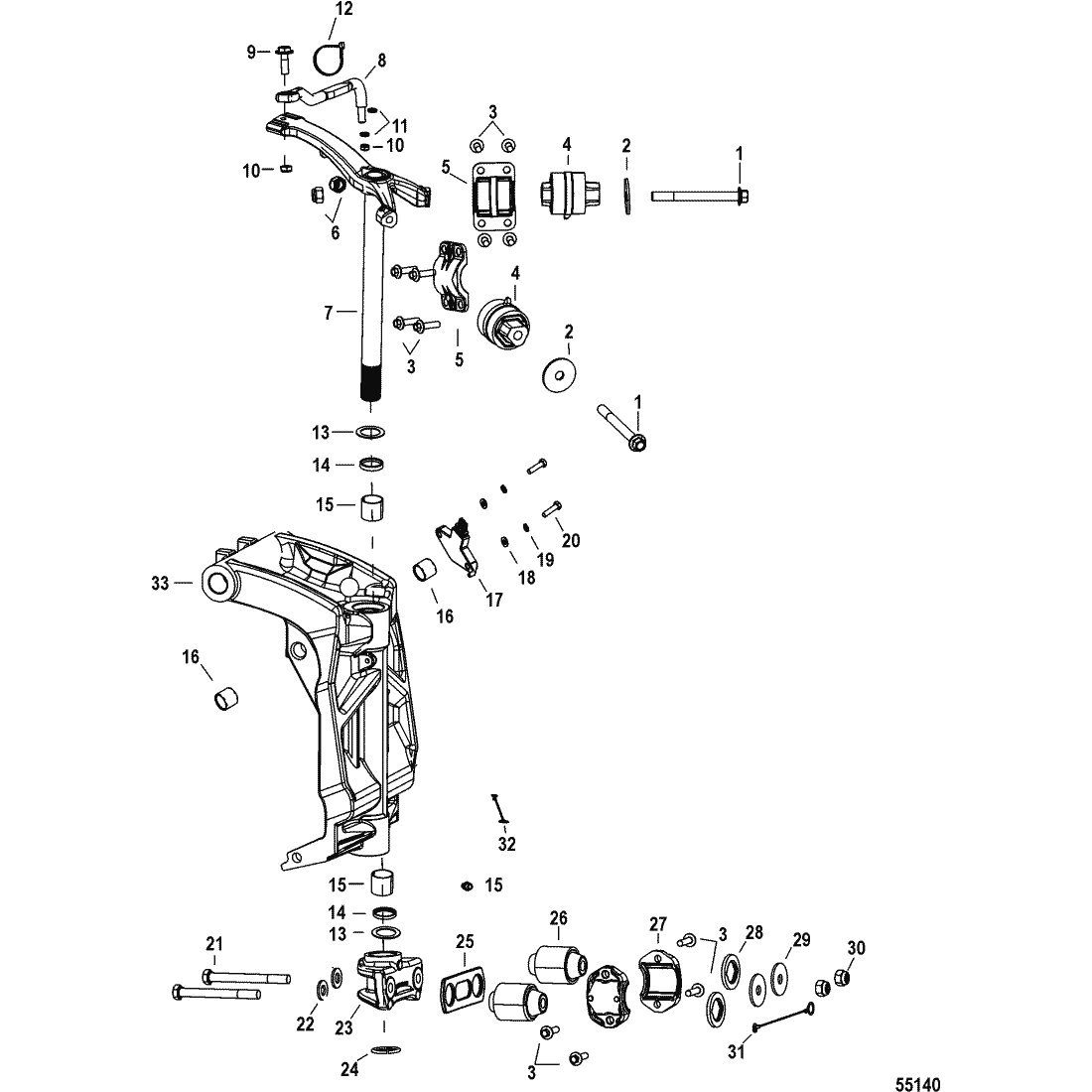

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0178149 | SCREW , (M12 X 120 Flg HEX HD) | 8M0088194 | SS |
|
$6.89 | $6.73 | 2 | |
| 2 | 8M0056839 | WASHER - UPPER MOUNT SNUBBER | ACT | $6.59 | $6.44 | 2 | |||
| 3 | 8M0231451 | SCREW, (M8 x 30) | 4010730 | SS |
|
$5.19 | $5.08 | 12 | |
| 4 | 8M0056774 | UPPER MOUNT ASSEMBLY | ACT | $53.99 | $51.94 | 2 | |||
| 4 | 8M0096243 | MOUNTS - UPPER | ACT |
|
$55.49 | $53.30 | 2 | ||
| 5 | 8M0056564 | COVER - UPPER MOUNT | ACT | $11.89 | $11.61 | 2 | |||
| 6 | 8M0088290 | NUT, (HEX M12 X 1.75) | ACT | $3.29 | $3.21 | 1 | |||
| 7 | 8M0164961 | SWIVEL TUBE ASSEMBLY | 8M0091530 | SS |
|
$406.49 | $388.56 | 1 | |
| 8 | 92876A12 | LINK ROD ASSEMBLY | ACT |
|
$93.68 | $90.13 | 1 | ||
| 9 | 849838 | --SCREW, (.375-24 x 1.250) | ACT | $22.09 | $21.69 | 1 | |||
| 10 | 8M0204726 | --NUT, (.375-24) Brass | 8M0042636 | SS |
|
$1.80 | $1.76 | 2 | |
| 11 | 37828 | --WASHER, (.390 x .625 x .062) Stainless Steel | ACT | $0.80 | $0.79 | 2 | |||
| 12 | 816311T | --TIE STRAP, (8.00 Inches) | ACT | $0.60 | $0.59 | 1 | |||
| 13 | 816432 | THRUST WASHER | ACT | $6.99 | $6.83 | 2 | |||
| 14 | 8M0034870 | SEAL, Swivel Tube | ACT | $22.39 | $21.93 | 2 | |||
| 15 | 8M0220988 | BUSHING, Swivel Tube Pivot | 8M0034861 | SS |
|
$4.29 | $4.20 | 2 | |
| 16 | 821207 | BUSHING | ACT | $12.79 | $12.49 | 2 | |||
| 17 | 8M0094923 | SENSOR ASSEMBLY - TRIM | ACT |
|
$129.99 | $122.35 | 1 | ||
| 18 | 89302 | --WASHER, (.203 x .406 x .040) | ACT | $1.80 | $1.76 | 2 | |||
| 19 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 20 | 852368 | --SCREW, (#10-24 x .750) | ACT | $1.70 | $1.66 | 2 | |||
| 21 | 40003111 | SCREW , (M12 x 120 HEX HD) | ACT | $8.19 | $8.00 | 2 | |||
| 22 | 8M0204704 | WASHER | 895062 | SS |
|
$1.90 | $1.86 | 2 | |
| 23 | 8M0217270 | YOKE - BOTTOM | 8M0091533 | SS |
|
$94.49 | $90.65 | 1 | |
| 24 | 67684 | RING, Retaining | ACT | $4.49 | $4.39 | 1 | |||
| 25 | 8M0084888 | SNUBBER | ACT | $4.09 | $4.00 | 1 | |||
| 26 | 8M0056573 | LOWER MOUNT ASSEMBLY | ACT | $41.99 | $41.07 | 2 | |||
| 27 | 8M0056181 | COVER - LOWER MOUNT | ACT | $11.39 | $11.12 | 2 | |||
| 28 | 8M0082052 | WASHER - SNUBBER | ACT | $2.29 | $2.24 | 2 | |||
| 29 | 8M0075817 | WASHER , (.50 X 1.75 X .125) | ACT | $6.69 | $6.54 | 2 | |||
| 30 | 897926 | NUT, (M12), Nylon Insert | ACT | $22.49 | $22.02 | 2 | |||
| 31 | 88238A20 | CABLE ASSEMBLY | ACT | $7.94 | $7.84 | 1 | |||
| 32 | 8M0079640 | CABLE ASSEMBLY | ACT | $4.19 | $4.10 | 1 | |||
| 33 | 8M0220957 | SWIVEL BRACKET ASSEMBLY | 8M0088881 | SS |
|
$1,057.49 | $969.04 | 1 |
