Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

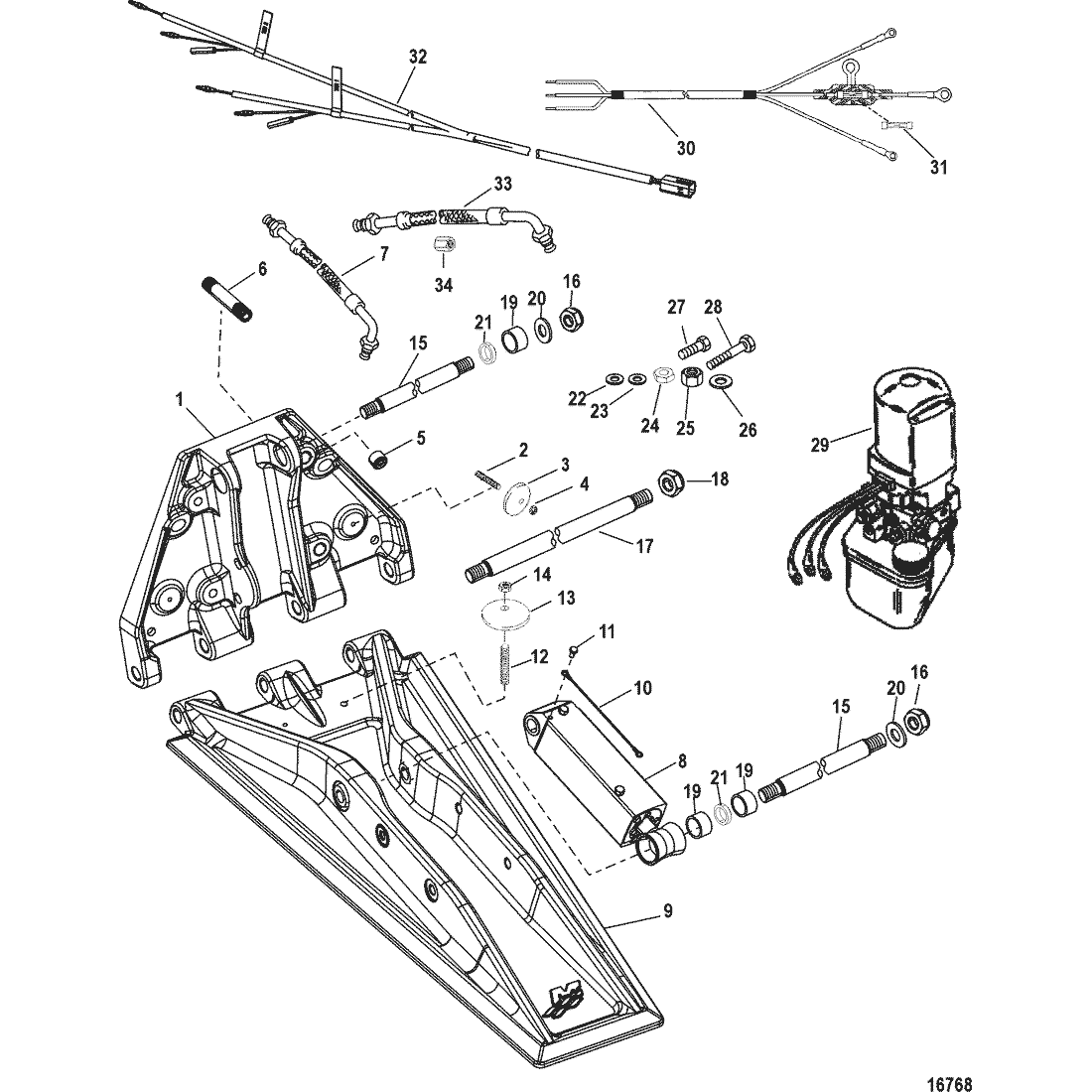

- 841945A02 K-PLANE, 380S - Trim Tab 841945A01 SS $6,453.30 $5,937.04 1
- 841945A02 K-PLANE, 380S - TrimTab With Digital Position Indicator ACT $6,453.30 $5,937.04 1
- 891574A03 --PLATE ASSEMBLY, (380) ACT $2,818.74 $2,583.23 1
- 8M0088244 --PLATE ASSEMBLY, (380) Stbd - with Digital Position Indicator 891574A05 SS $2,872.77 $2,632.75 1
- 891574A02 --PLATE ASSEMBLY, (380) ACT $2,818.74 $2,583.23 1
- 8M0088243 --PLATE ASSEMBLY, (380) Port - with Digital Position Indicator 891574A04 SS $2,900.16 $2,657.84 1
1 841215T01 ----PLATE ASSEMBLY, Upper ACT $527.00 $495.66 1
1 841215T02 ----PLATE ASSEMBLY, Upper ACT $527.44 $496.08 1
2 8M0034461 ------STUD, (#10-32 x .930) 21085 SS $21.09 $20.71 2
3 847266 ------ANODE ACT $6.22 $6.15 2
4 8267096 ------NUT, (#10-32) Stainless Steel ACT $3.69 $3.59 2
5 844127 ------PLUG, (.50-14) Pipe ACT $19.89 $19.41 2
6 844142A01 ------STUD, With Insert ACT $95.49 $91.62 2
7 845975 ----HOSE, Hydraulic (9.375 Inches) ACT $54.34 $52.75 2
8 845760T09 ----CYLINDER ASSEMBLY, Trim Tab ACT $746.66 $702.26 1
9 891574T01 ----PLATE ASSEMBLY, Lower ACT $1,157.86 $1,061.12 1
10 8M0207768 ------CABLE ASSEMBLY, Ground 88238A13 SS $14.09 $13.75 1
11 68513 ------SCREW, (#10-32 x .375) Stainless Steel ACT $1.40 $1.37 1
12 8M0034465 ------STUD, (1.32 x .375) 842724 SS $17.79 $17.36 1
13 848653T ------ANODE ACT $51.90 $50.38 1
14 8M0204726 ------NUT, (.375-24) Stainless Steel 826709113 SS $1.80 $1.76 1
15 8M0008636 ----PIN, Stainless Steel, Upper and Lower Trim Cylinder Mount 891579 SS $51.34 $49.83 2
16 35000 ----NUT, (.500-20) Stainless Steel ACT $14.59 $14.24 4
17 847195T01 ----PIN, Hinge Upper and Lower Plate ACT $104.64 $100.00 1
18 842751 ----NUT, (.437-20) ACT $10.52 $10.37 2
19 895741 ----BUSHING ACT $6.19 $6.12 6
20 846377 ----WASHER, (.531 x 1.06 x .095) Stainless Steel ACT $12.99 $12.68 4
21 891576 ----SPACER, (.875 x .635) ACT $6.70 $6.61 4
22 841388 --WASHER, (.410 x .810 x .050) Stainless Steel, Mounting ACT $0.90 $0.88 8
23 845998 --WASHER, (.406 x 1.250 x .089), Mounting ACT $3.79 $3.69 8
24 82670912 --NUT, (.375-16) Stainless Steel, Mounting ACT $6.79 $6.64 8
25 845997 --NUT, (.625-18), Mounting ACT $5.09 $4.98 8
26 844850 --WASHER, (.660 x 1.310 x .09) Stainless Steel, Mounting ACT $1.24 $1.23 4
27 843373 --SCREW, (.375-16 x 3.500), Mounting ACT $4.49 $4.43 4
28 843575 --SCREW, (.375-16 x 4.00) Stainless Steel, Mounting ACT $8.69 $8.49 4
29 8M0083288 --PUMP/MOTOR ASSEMBLY, Trim, Plastic 849670A05 SS $1,351.64 $1,238.72 2
30 846160A2 --HARNESS ASSEMBLY ACT $110.25 $105.53 2
31 846159 ----FUSE, 10 Ampere ACT $1.53 $1.51 1
32 895820T02 --HARNESS ASSEMBLY (For Use on 841945A02 -Digital Tab Position Indicator Model) ACT $249.90 $239.20 1
33 843556A1 K-Planes Hose Kit ACT $307.77 $294.09 OPT
33 843675A1 K-Planes Hose Kit ACT $388.39 $371.13 OPT
33 845976 --HOSE ASSEMBLY, Hydraulic (30.00 Inches) ACT $76.97 $74.72 4
33 845977 --HOSE, Hydraulic (60.00 Inches Bulk) ACT $119.39 $114.09 4
33 846051 HOSE, Hydraulic (96.00 Inches Bulk) ACT $156.43 $149.49 OPT
33 848789 HOSE, Hydraulic (115.00 Inches Bulk) ACT $197.49 $188.72 OPT
34 38402 ----FITTING, (.375-24 x 6.250) Brass ACT $10.29 $10.05 4
- 845532A02 ACTUATOR KIT (Stainless Steel Grip) ACT $453.06 $432.94 AR
- 845630A02 ACTUATOR KIT (Plastic Grip) ACT $267.68 $255.79 AR
- 884359A03 GAUGE DRIVER KIT, Analog ACT $377.59 $360.82 AR
