| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

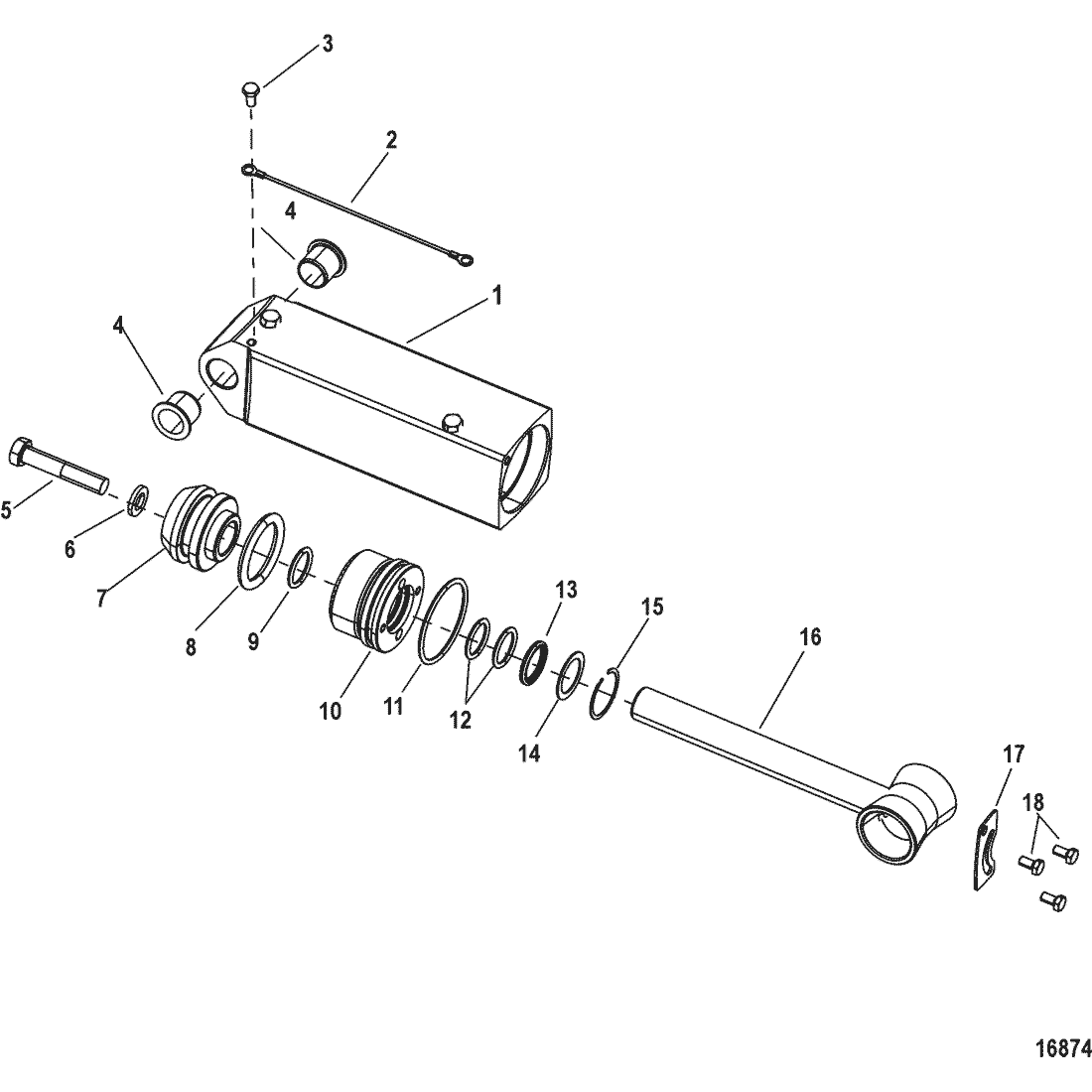

| - | 845760T09 | CYLINDER ASSEMBLY, Trim Tab | ACT |
 |
$724.77 | $681.67 | AR | ||
| 1 | NSS | --NOT SOLD SEPARATE, Cylinder Body |
|
$0.00 | $0.00 | 1 | |||
| 2 | 88238A13 | --CABLE ASSEMBLY, Ground | ACT | $13.60 | $13.27 | 1 | |||
| 3 | 10-68513 | --SCREW, (#10-32 x .375) Stainless Steel | ACT | $1.30 | $1.27 | 1 | |||
| 4 | 23-8M0214952 | --BUSHING | ACT | $11.80 | $11.51 | 2 | |||
| 5 | 10-35871 | --SCREW, (.375-24 x 1.500) | ACT | $2.70 | $2.64 | 1 | |||
| 6 | 12-27880 | --WASHER | ACT | $1.60 | $1.57 | 1 | |||
| 7 | 8M0052327 | --PISTON, Hydraulic | 840763 | SS/ACT |
|
$58.36 | $56.65 | 1 | |
| 8 | 25-845742 | --O-RING | ACT | $6.76 | $6.67 | 1 | |||
| 9 | 25-8M0214979 | --O-RING | ACT | $0.60 | $0.59 | 1 | |||
| 10 | 8M0050236 | --END CAP | 840768 | SS/ACT |
|
$100.36 | $95.90 | 1 | |
| 11 | 25-845749 | --O-RING | ACT | $3.63 | $3.58 | 1 | |||
| 12 | 25-8M0214979 | --O-RING | ACT | $0.60 | $0.59 | 2 | |||
| 13 | 36039 | --SCRAPER, Rod | ACT | $33.92 | $33.31 | 1 | |||
| 14 | 12-85382 | --WASHER, (1.10 x .81 x .031) | ACT | $1.10 | $1.08 | 1 | |||
| 15 | 53-85202 | --RING, Retaining | ACT | $4.30 | $4.20 | 1 | |||
| 16 | 8M0080802 | --ROD, Hydraulic Cylinder | 842743 | SS/ACT |
|
$391.92 | $374.51 | 1 | |
| 17 | 891538 | --PLATE | ACT | $22.44 | $22.12 | 1 | |||
| 19 | 10-68513 | --SCREW, (#10-32 x .375) Stainless Steel | ACT | $1.30 | $1.27 | 3 |
