| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

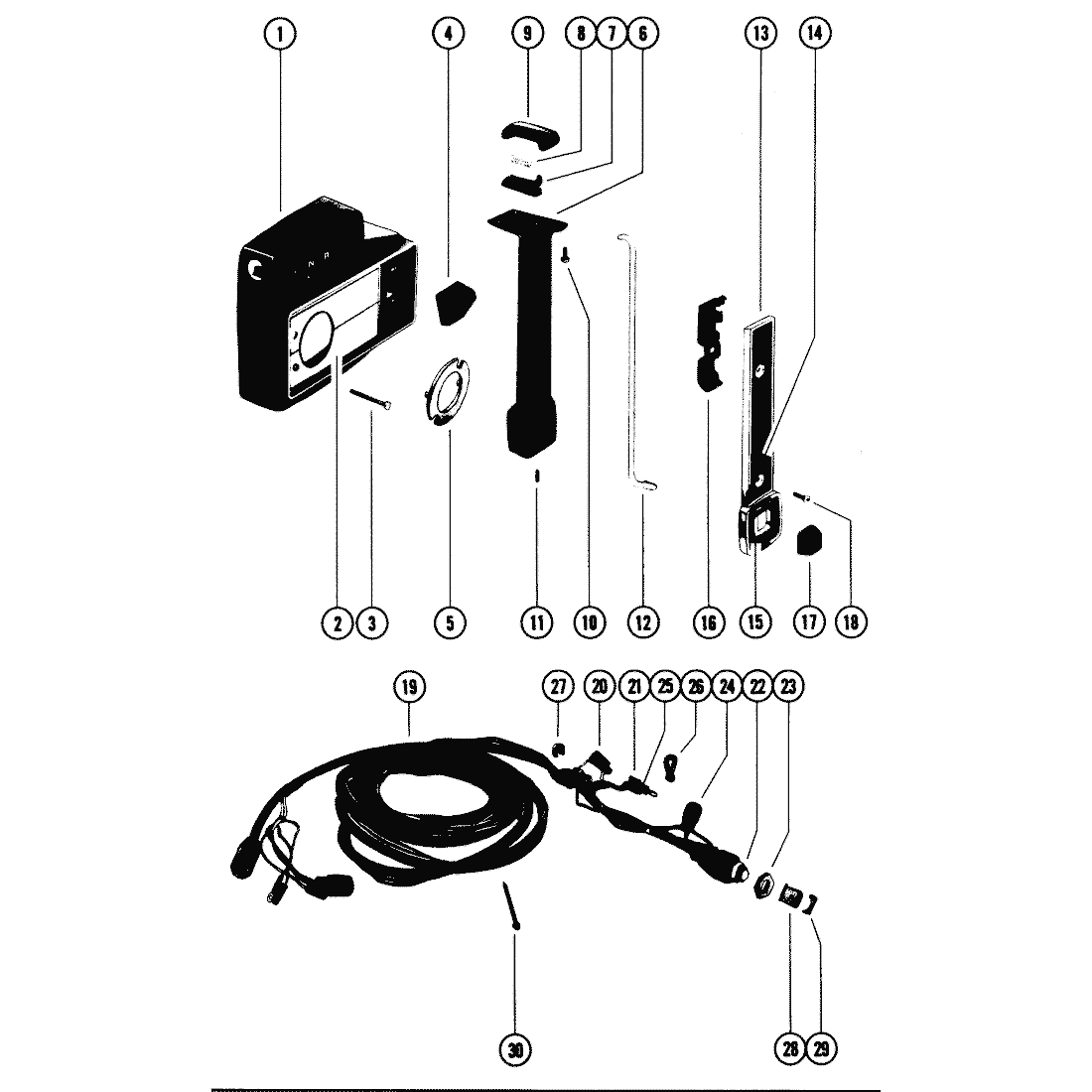

| - | 13795A15 | REMOTE CONTROL ASSEMBLY, ELECTRIC | 87729A15 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 92984A2 | --COVER, REMOTE CONTROL | 85859 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | 135306 | --DECAL, REMOTE CONTROL COVER (QUICKSILVER) | 87312 | SS |
|
$0.00 | $0.00 | 1 | |
| 3 | 86087 | --SCREW, REMOTE CONTROL COVER (3 1/2") | NLA |
|
$0.00 | $0.00 | 3 | ||
| 4 | 94208 | --COVER, TOGGLE SWITCH | 86351 | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | 94181 | --LOCK RING ASSEMBLY | 85897A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 6 | 95070A1 | --CONTROL HANDLE ASSEMBLY | 91070A3 | SS |
|
$0.00 | $0.00 | 1 | |
| 7 | 85898 | --TRIGGER, CONTROL HANDLE | ACT | $9.70 | $9.51 | 1 | |||
| 8 | NSS | --SPRING, TENSION - CONTROL HANDLE |
|
$0.00 | $0.00 | 1 | |||
| 9 | 85894 | --CAP, CONTROL HANDLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 95700 | --SCREW, CONTROL HANDLE CAP (1/2 ") | 75710 | SS |
|
$6.63 | $6.52 | 2 | |
| 11 | 85797 | --SCREW, SET - CONTROL HANDLE (1/4 -20 THREAD) | NLA |
|
$0.00 | $0.00 | OPT | ||
| 11 | 91051 | --SCREW, SET - CONTROL HANDLE (5/16-18 THREAD) | NLA |
|
$3.69 | $3.61 | OPT | ||
| 12 | 85895 | --ROD, LOCKING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 92985A2 | --COVER, CONTROL HANDLE | 87313 | SS |
|
$0.00 | $0.00 | 1 | |
| 14 | 1353013 | --DECAL, COVER | 87815 | SS |
|
$0.00 | $0.00 | 1 | |
| 15 | 135303 | --DECAL, COVER - LOWER | 85863 | SS |
|
$0.00 | $0.00 | 1 | |
| 16 | 89987T | --RETAINER, TRIM SWITCH | 89987 | SS |
|
$5.93 | $5.81 | 1 | |
| 17 | 85896 | --BUTTON, THROTTLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 58376 | --SCREW, COVER TO CONTROL HANDLE (3/8") | ACT | $1.23 | $1.21 | 2 | |||
| 19 | NSS | --WIRING HARNESS ASSEMBLY |
|
$0.00 | $0.00 | 1 | |||
| 20 | 817724 | ----MICRO SWITCH | 86320 | SS |
|
$0.00 | $0.00 | 1 | |
| 21 | 91941 | ----TOGGLE SWITCH | 86350 | SS |
|
$0.00 | $0.00 | 1 | |
| 22 | 88107A5 | ----IGNITION SWITCH(SEE CHART FOR KEY) | 88107 | SS |
|
$79.48 | $74.85 | 1 | |
| 23 | 879755 | ------NUT, IGNITION SWITCH | 93543 | SS |
|
$6.09 | $5.95 | 1 | |
| 24 | 86319 | ----INSULATOR, WIRING HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 27052 | --NUT, TOGGLE SWITCH | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 15920Q54 | --KEY, TOGGLE SWITCH | 86352 | SS |
|
$0.00 | $0.00 | 2 | |
| 27 | 85879 | --GROMMET, WIRING HARNESS | ACT | $3.15 | $3.09 | 1 | |||
| 28 | 90468A1 | --COVER, IGNITION SWITCH KEYS | 87870 | SS |
|
$4.86 | $4.80 | 2 | |
| 29 | 90468A1 | --RETAINER, IGNITION SWITCH KEYS | 87869 | SS |
|
$4.86 | $4.80 | 2 | |
| 30 | 61990 | --STA-STRAP, WIRING HARNESS | ACT | $0.70 | $0.69 | 2 | |||
| - | 894911 | KEY 1A | ACT |
|
$5.67 | $5.57 | |||
| - | 894912 | KEY 1B | ACT |
|
$5.67 | $5.57 | |||
| - | 894913 | KEY 1C | ACT |
|
$5.67 | $5.57 | |||
| - | 894914 | KEY 1D | ACT |
|
$5.67 | $5.57 | |||
| - | 894915 | KEY 1E | ACT |
|
$5.67 | $5.57 | |||
| - | 894916 | KEY 1F | ACT |
|
$5.67 | $5.57 | |||
| - | 894917 | KEY 2A | ACT |
|
$5.67 | $5.57 | |||
| - | 894918 | KEY 2B | ACT |
|
$5.67 | $5.57 | |||
| - | 894919 | KEY 2C | ACT |
|
$5.67 | $5.57 | |||
| - | 8949110 | KEY 2D | ACT |
|
$5.67 | $5.57 | |||
| - | 8949111 | KEY 2E | ACT |
|
$5.67 | $5.57 | |||
| - | 8949112 | KEY 2F | ACT |
|
$5.67 | $5.57 |
