Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

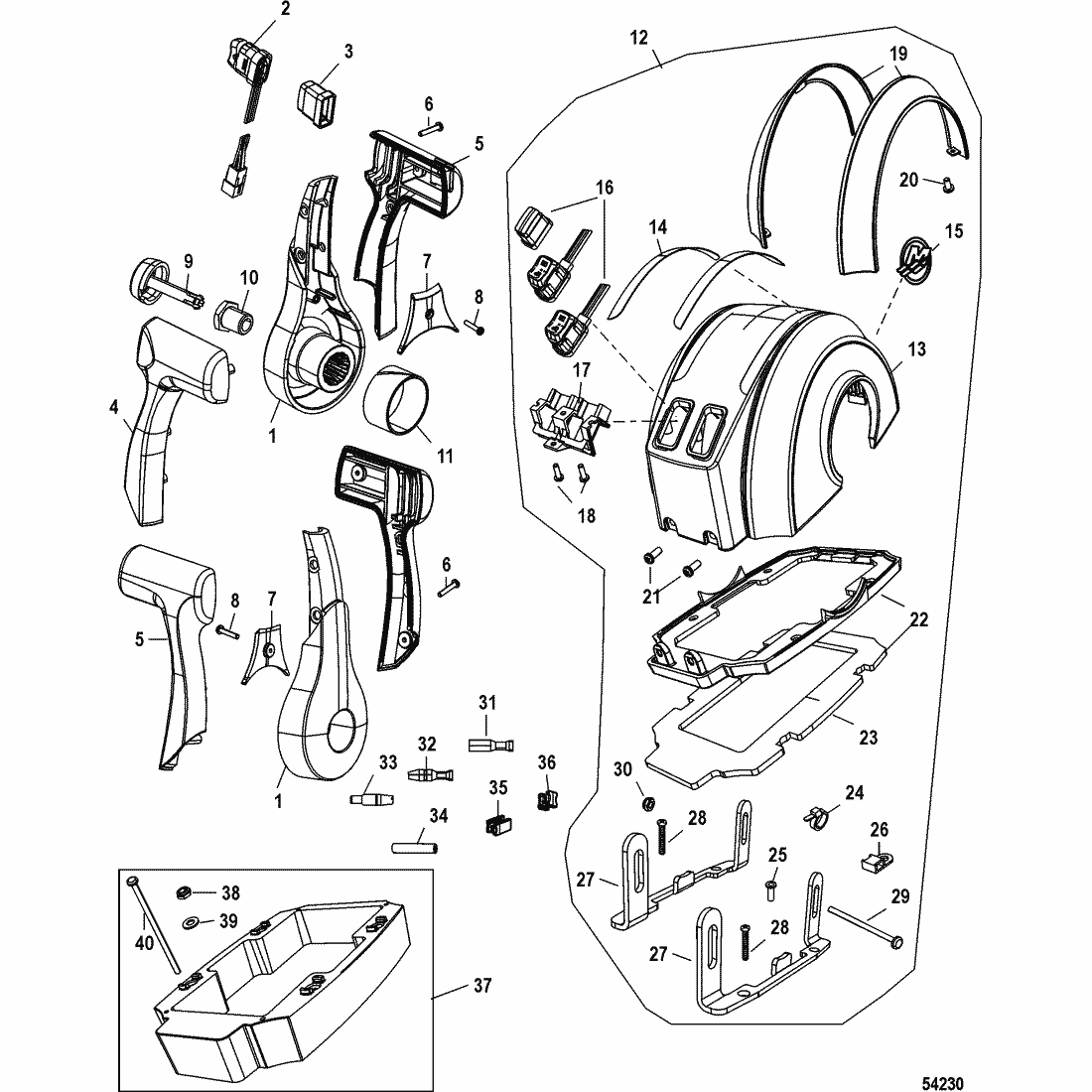

- 8M0075244 REMOTE CONTROL CONSOLE MOUNT, 4500-Dual Non Trim ACT $758.46 $668.55 1
- 8M0075245 REMOTE CONTROL CONSOLE MOUNT, 4500-Dual OB ACT $1,014.61 $873.88 1
- 8M0075246 REMOTE CONTROL CONSOLE MOUNT, 4500-Dual MCM ACT $1,047.69 $902.39 1
1 877710T1 --HANDLE ASSEMBLY ACT $128.05 $115.46 1
1 877710T2 --HANDLE ASSEMBLY ACT $148.68 $134.03 1
1 877710T3 --HANDLE ASSEMBLY ACT $148.68 $138.79 1
1 877710T11 --HANDLE ASSEMBLY ACT $128.05 $115.46 1
2 859032T3 ----SWITCH /HARNESS ASSEMBLY (OB Trim - Port) ACT $95.49 $89.86 1
2 858679T2 ----SWITCH/HARNESS ASSEMBLY (MCM Trim-Port) ACT $98.49 $92.61 1
3 877720 ----PLUG ACT $3.06 $3.00 1
4 NSS ----NOT SOLD SEPARATE, Grip, Back $0.00 $0.00 1
5 NSS ----NOT SOLD SEPARATE, Grip, Front $0.00 $0.00 1
6 88533516 ----SCREW, Pan Head (K30-1.34 x 16mm) ACT $1.82 $1.79 5
7 877711 ----COVER, Handle Hub ACT $4.29 $4.22 1
8 858686 ----SCREW, (#8) ACT $1.20 $1.18 1
9 877717 --BUTTON, Throttle Only ACT $4.29 $4.22 1
10 8222131 --BOLT, Locking, Special ACT $6.06 $5.95 1
11 859016 --BUSHING, Handle ACT $8.69 $8.49 1
12 8M0085733 --CONVERSION KIT, RC Dual - Non Trim ACT $300.85 $271.22 1
12 8M0085735 --CONVERSION KIT, RC Dual-OB Trim ACT $455.96 $411.04 1
12 8M0085736 --CONVERSION KIT, RC Dual-MC Trim ACT $472.69 $426.13 1
13 8M0087189 ----COVER ASSEMBLY, Remote Control GEN II, Dual, Non Trim NLA $0.00 $0.00 1
13 8M0087190 ----COVER ASSEMBLY, Remote Control GEN II, Dual, OB Trim ACT $159.60 $143.87 1
13 8M0087191 ----COVER ASSEMBLY, Remote Control GEN II, Dual, MC Trim ACT $168.06 $151.53 1
14 8M0060478 ------DECAL (F-N-R) ACT $20.88 $20.36 2
15 8M6001063 ------DECAL, M-ICON ACT $7.52 $7.34 1
16 877720 ------PLUG (Non Trim) ACT $3.06 $3.00 2
16 824783T20 ------HARNESS/SWITCH ASSEMBLY (Outboard Trim) ACT $164.33 $148.11 2
16 824783T21 ------HARNESS/SWITCH ASSEMBLY (MerCruiser Trim) ACT $164.33 $148.11 2
17 8M0082233 ------BRACKET, Switch Retainer ACT $0.00 $0.00 1
18 88533510 ------SCREW, Pan Head (K30-1.34 x 10mm) ACT $2.45 $2.41 4
19 8M0087192 ----TRIM KIT, Dual Remote Control (Includes two trim plates) NLA $0.00 $0.00 1
22 8M0087188 ----BASE ASSEMBLY, Dual Console Remote Control ACT $20.32 $19.95 1
23 8M0075259 ------GASKET, Base Assembly-Dual ACT $3.26 $3.19 1
24 859671 ----TIE STRAP, (8.00 Inches) ACT $1.50 $1.47 3
25 42290 ----WELL NUT, (#10-32) ACT $2.29 $2.25 4
26 822434 ----ANCHOR ACT $1.58 $1.55 1
27 8M0059444 ----BRACKET ACT $33.24 $32.65 2
28 66687 ----SCREW, (#10-32 x 1.50) ACT $1.82 $1.79 4
29 89044 ----SCREW, (#10-32 x 2.25) ACT $1.82 $1.79 2
30 8M0204718 ----NUT, (#10-32) Stainless Steel 826709106 SS $4.69 $4.59 2
31 814433T --BULLET TERMINAL RECEPTACLE ACT $11.29 $11.02 1
32 814434T --BULLET TERMINAL PLUG ACT $15.99 $15.61 1
33 8M0214913 --BULLET TERMINAL RECEPTACLE, Male 17198 SS $0.80 $0.79 1
34 8M0214914 --BULLET TERMINAL RECEPTACLE, Female 17199 SS $1.20 $1.18 1
35 891907002 --SPACER, Cable Dual ACT $2.29 $2.25 1
36 891907001 --SPACER, Cable Single ACT $2.29 $2.25 2
37 8M0085790 SPACER KIT, Dual ACT $71.09 $66.94 1
38 8M0204718 --NUT, (#10-32) Stainless Steel 826709106 SS $4.69 $4.59 4
39 8M0204666 --WASHER, (.203 x .500 x .032) 56681 SS $1.80 $1.76 4
40 8M0204672 --SCREW, (#10-32 x 4.00) 89043 SS $7.13 $6.98 4
