Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

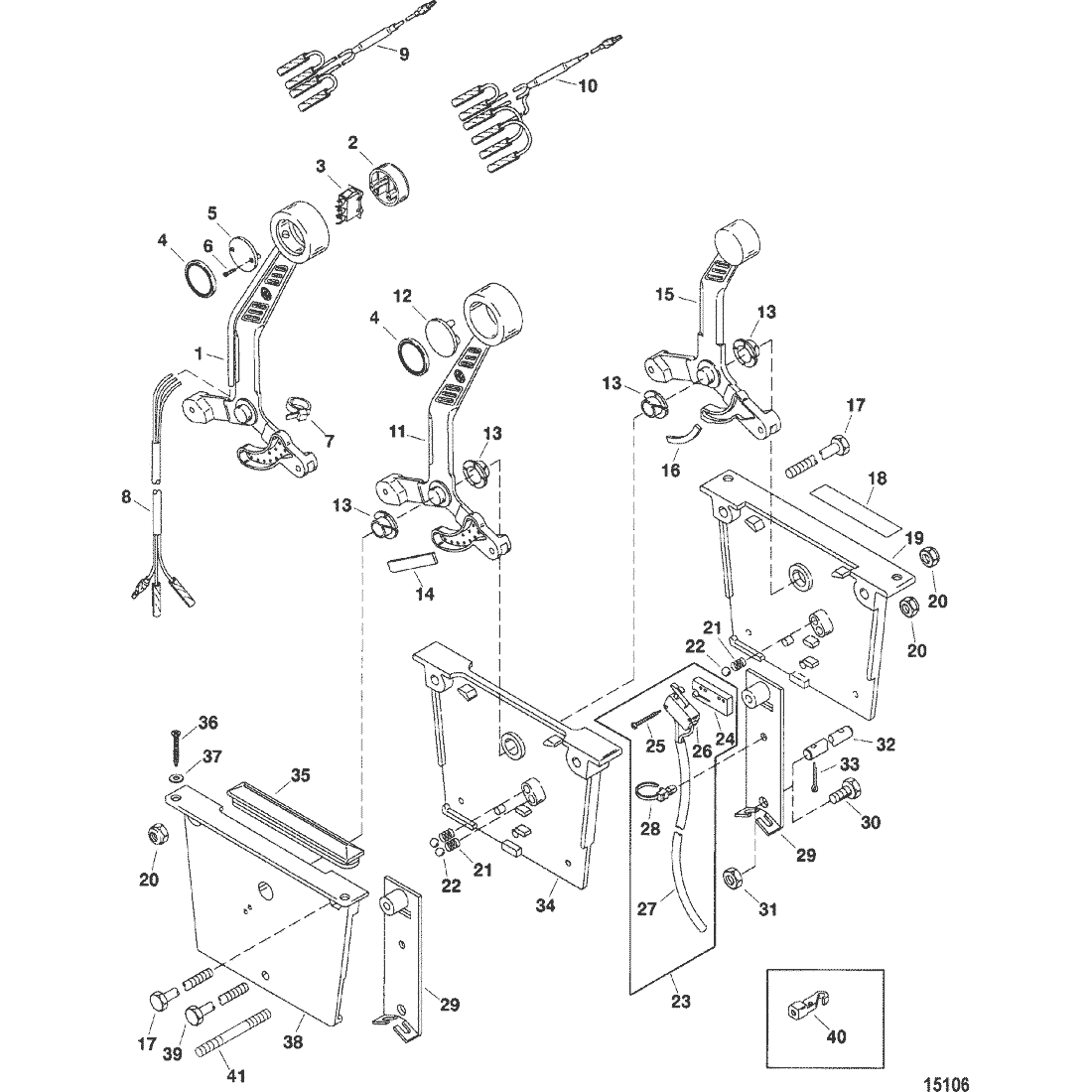

1 848924A5 LEVER ASSEMBLY, Throttle (Black) With Switch, Starboard - Forward NLA $0.00 $0.00 1
1 848924A6 LEVER ASSEMBLY, Throttle (White) With Switch, Starboard - Forward NLA $0.00 $0.00 1
1 848924A7 LEVER ASSEMBLY, Throttle (Black) With Switch, Starboard - AFT NLA $0.00 $0.00 1
1 848924A8 LEVER ASSEMBLY, Throttle (White) With Switch, Starboard - AFT NLA $0.00 $0.00 1
2 848922 --SWITCH, Trim Switch ACT $24.20 $23.85 1
3 848926A2 --SWITCH KIT, Trim ACT $91.29 $87.23 1
4 844848 ----EMBLEM, Throttle Lever (Self Adhesive) ACT $46.48 $45.82 1/8
5 848923 --BACKPLATE, Switch Block ACT $19.15 $18.88 1
6 845587 --SCREW, (#4 x .620) ACT $0.44 $0.44 2
7 8M0214940 --TIE STRAP, (5.50 Inches) 69355 SS $0.80 $0.79 1
8 NSS --NOT SOLD SEPARATE, Harness Assembly, Trim Switch $0.00 $0.00 1
9 812497T03 DIODE KIT 812497A3 SS $52.85 $50.51 1
9 812497A4 DIODE KIT ACT $50.18 $47.96 1
10 812497A5 DIODE KIT ACT $307.94 $284.99 1
10 812497A6 DIODE KIT ACT $302.79 $280.23 1
11 8447211 LEVER, Throttle - Black NLA $0.00 $0.00 1/4
11 8447212 LEVER, Throttle - White NLA $0.00 $0.00 1/4
12 844847 INSERT, Locking - Throttle Lever ACT $3.22 $3.17 2/8
13 812707 BUSHING, Throttle and Shift Levers ACT $8.29 $8.10 2/12
14 844839 SLIDE, Throttle Lever ACT $3.02 $2.98 1/4
15 8447221 LEVER, Shift - Black ACT $513.68 $467.68 1/4
15 8447222 LEVER, Shift - White ACT $503.91 $458.78 1/4
15 8468381 LEVER, Shift, Black NLA $0.00 $0.00 1/3
15 8468382 LEVER, Shift, White NLA $0.00 $0.00 1/3
16 844840 SLIDE, Shift Lever ACT $1.95 $1.92 1/4
17 28636 SCREW, (.250-20 x .750) ACT $1.80 $1.76 2
17 73015 SCREW, (.250-20 x 1.75) ACT $1.80 $1.76 2
17 846713 SCREW, (.250-20 x 2.250) NLA $0.00 $0.00 2
17 35049 SCREW, (.250-20 x 2.75) ACT $3.09 $3.01 2
17 844884 SCREW, (.250-20 x 3.62) ACT $6.15 $6.06 2
17 845674 SCREW, (.250-20 x 4) 90088 SS $6.89 $6.73 2
17 844665 SCREW, (.250-20 x 5.500) NLA $0.00 $0.00 2
17 847148 SCREW, (.250-20 x 6.000) NLA $0.00 $0.00 2
18 844846 DECAL, Shift Warning NLA $0.00 $0.00 1
19 8M0051369 HOUSING, With Boss, Black 8452821 SS $113.62 $105.16 1
19 8M0050910 HOUSING, With Boss, White 8452822 SS $116.21 $107.55 1
20 8M0207776 NUT, (.250-20) Stainless Steel 814101 SS $7.09 $6.93 2/4
21 844657 SPRING ACT $5.58 $5.51 2/9
22 842651 BALL, (.250) ACT $0.77 $0.77 1/9
23 8M0078612 SWITCH ASSEMBLY 846295A1 SS $200.11 $185.21 1/4
24 845512 --BLOCK, Switch Mounting NLA $0.00 $0.00 1
25 845587 --SCREW, (#4 x .620) ACT $0.44 $0.44 2
26 8M0078612 --SWITCH 846177 SS $200.11 $185.21 1
27 8M0078612 --WIRE ASSEMBLY, Switch 844808 SS $200.11 $185.21 1
28 847509 --TIE STRAP, (7.50 Inches) ACT $1.59 $1.57 1
29 847492 BRACKET ACT $77.75 $74.30 1/6
30 88909 SCREW, (.375-24 x .620), 1 Lever Control NLA $0.00 $0.00 1
31 8M0204726 NUT, (.375-24), 1 Lever Control 34863 SS $1.80 $1.76 1
32 847498 PIN, Cable Anchor ACT $21.67 $21.37 1
32 847499 PIN, Cable Anchor NLA $0.00 $0.00 1
32 847500 PIN, Cable Anchor ACT $38.96 $38.40 1
32 847501 PIN, Cable Anchor NLA $0.00 $0.00 1
32 847502 PIN, Cable Anchor NLA $0.00 $0.00 1
32 847504 PIN, Cable Anchor NLA $0.00 $0.00 1
32 847505 PIN, Cable Anchor NLA $0.00 $0.00 1
33 56206 COTTER PIN ACT $3.39 $3.30 2
34 8401671 HOUSING, Inner 8452831 SS $0.00 $0.00 1/5
34 8M0050241 HOUSING, Inner 8452832 SS $115.82 $107.19 1/5
34 8401691 HOUSING, Inner NLA $0.00 $0.00 1
34 8401692 HOUSING, Inner NLA $0.00 $0.00 1
34 8401701 HOUSING, Inner NLA $0.00 $0.00 1
34 8401702 HOUSING, Inner NLA $0.00 $0.00 1
35 8M0047219 BOOT 844458 SS $8.89 $8.77 1/6
36 845522 SCREW, (#8 x 1.250), Housing Mount ACT $0.47 $0.47 4
37 845523 WASHER, Nylon, Housing Mount Screw ACT $0.31 $0.31 4
38 8M0050954 HOUSING, With Out Boss 8459691 SS $111.40 $103.11 1
38 8401682 HOUSING, With Out Boss 8459692 SS $115.82 $107.19 1
39 86885 SCREW, (.250-20 x 1.500) Stainless Steel ACT $3.19 $3.11 1
39 53155 SCREW, (.250-20 x 2.50) ACT $1.30 $1.27 1
39 846712 SCREW, (.250-20 x 2.880) NLA $0.00 $0.00 1
39 844885 SCREW, (.250-20 x 3.250) ACT $1.73 $1.71 1
39 844886 SCREW, (.250-20 x 4.250) ACT $6.63 $6.54 1
39 846699 SCREW, (.250-20 x 4.750) NLA $0.00 $0.00 1
39 844888 SCREW, (.250-20 x 6.125) NLA $0.00 $0.00 1
40 845281 CLEVIS, Control Cable ACT $61.38 $58.65 1/6
41 848237 STUD, (.250-20 x 6.880) NLA $0.00 $0.00 1
