- Also See Modular Components (Design IV) For Component Parts.

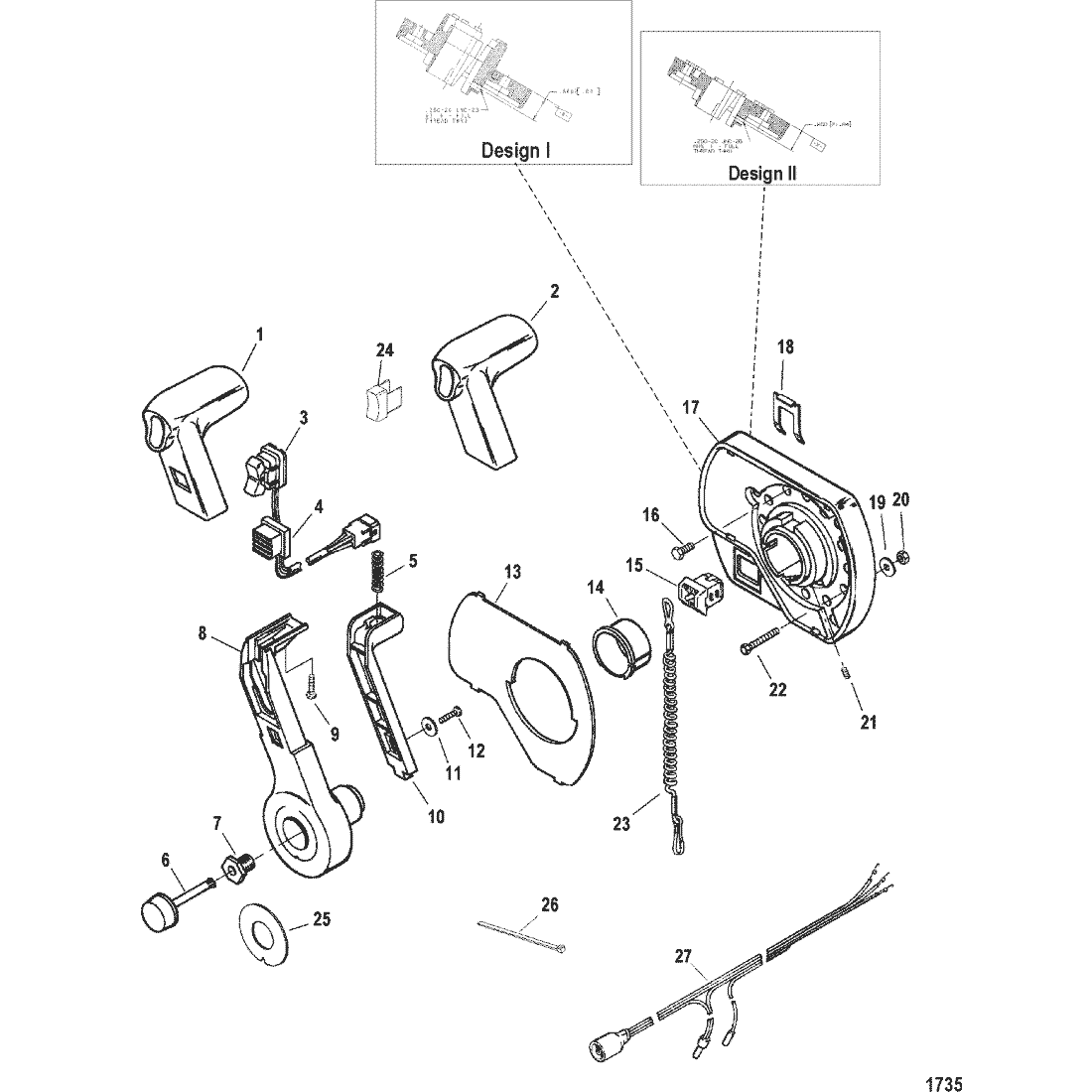

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 827270A56 | REMOTE CONTROL | SS |
 |
$0.00 | $0.00 | 1 | ||
| - | 827270A57 | REMOTE CONTROL | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 827270A58 | REMOTE CONTROL | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 817257 | --GRIP | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8172581 | --GRIP | ACT |
|
$15.86 | $15.53 | 1 | ||
| 3 | 87-18286T31 | --SWITCH ASSEMBLY, Trim/Trailer | 18286A31 | SS/ACT |
|
$51.00 | $49.52 | 1 | |
| 4 | 87-18286T34 | --SWITCH ASSEMBLY, Trim/Trailer | 18286A33 | SS/ACT |
|
$94.65 | $91.02 | 1 | |
| 5 | 24-16924 | --SPRING | ACT | $1.47 | $1.45 | 1 | |||
| 6 | 822212T | --BUTTON, Throttle Only | 822212 | SS/ACT |
|
$4.94 | $4.84 | 1 | |
| 7 | 10-8222131 | --BOLT, Locking, Special | ACT | $5.65 | $5.55 | 1 | |||
| 8 | 822211T1 | --HANDLE, Control, Black | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 10-58376 | --SCREW, (.164-18 x .375) | ACT | $1.15 | $1.13 | 1 | |||
| 10 | 817259 | --RELEASE, Shift | ACT | $8.06 | $7.93 | 1 | |||
| 11 | 12-28001 | --WASHER, (.188 x .438 x .049) | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 10-4005685 | --SCREW, (M4 x 10) | ACT | $1.70 | $1.67 | 1 | |||
| 13 | 37-82728916 | --DECAL, Bezel, Quicksilver | ACT |
|
$26.00 | $25.53 | 1 | ||
| 14 | 23-822980 | --BUSHING, Firm, White | ACT | $2.86 | $2.80 | 1 | |||
| 15 | 87-133982 | --SWITCH ASSEMBLY, Stop | ACT |
|
$62.69 | $60.29 | 1 | ||
| 15 | 87-133983 | --SWITCH ASSEMBLY, Stop | ACT |
|
$62.69 | $60.29 | 1 | ||
| 16 | 10-19923088 | --SCREW, (.250-20 x .875) | ACT | $3.35 | $3.29 | 3 | |||
| 17 | 881173T1 | --BEZEL | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 881173T1 | --BEZEL | SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 8M0032846 | --RETAINER, Brass | 120441 | SS/ACT |
|
$4.32 | $4.23 | 1 | |
| 19 | 12-69057 | --WASHER, (.281 x .734 x .063) | ACT | $1.70 | $1.66 | 3 | |||
| 20 | 11-8M0207776 | --NUT, (.250-20) Stainless Steel | 814101 | SS/ACT |
|
$6.80 | $6.64 | 3 | |
| 21 | 10-8229811 | --SET SCREW, (.250-20 x .187), Friction | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 10-822214 | --SCREW, (.250-20 x 1.750) | ACT | $1.70 | $1.67 | 3 | |||
| 23 | 15920Q54 | --LANYARD ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 24 | 817697 | --PLUG, Stop Switch Hole | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 37-8272881 | --DECAL, Hub | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 54-816311T | --TIE STRAP, (8.00 Inches) | ACT | $0.60 | $0.59 | AR | |||
| 27 | 84-817659A1 | --HARNESS ASSEMBLY, Trim - 16 Foot | ACT |
|
$29.37 | $28.86 | 1 |
