| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

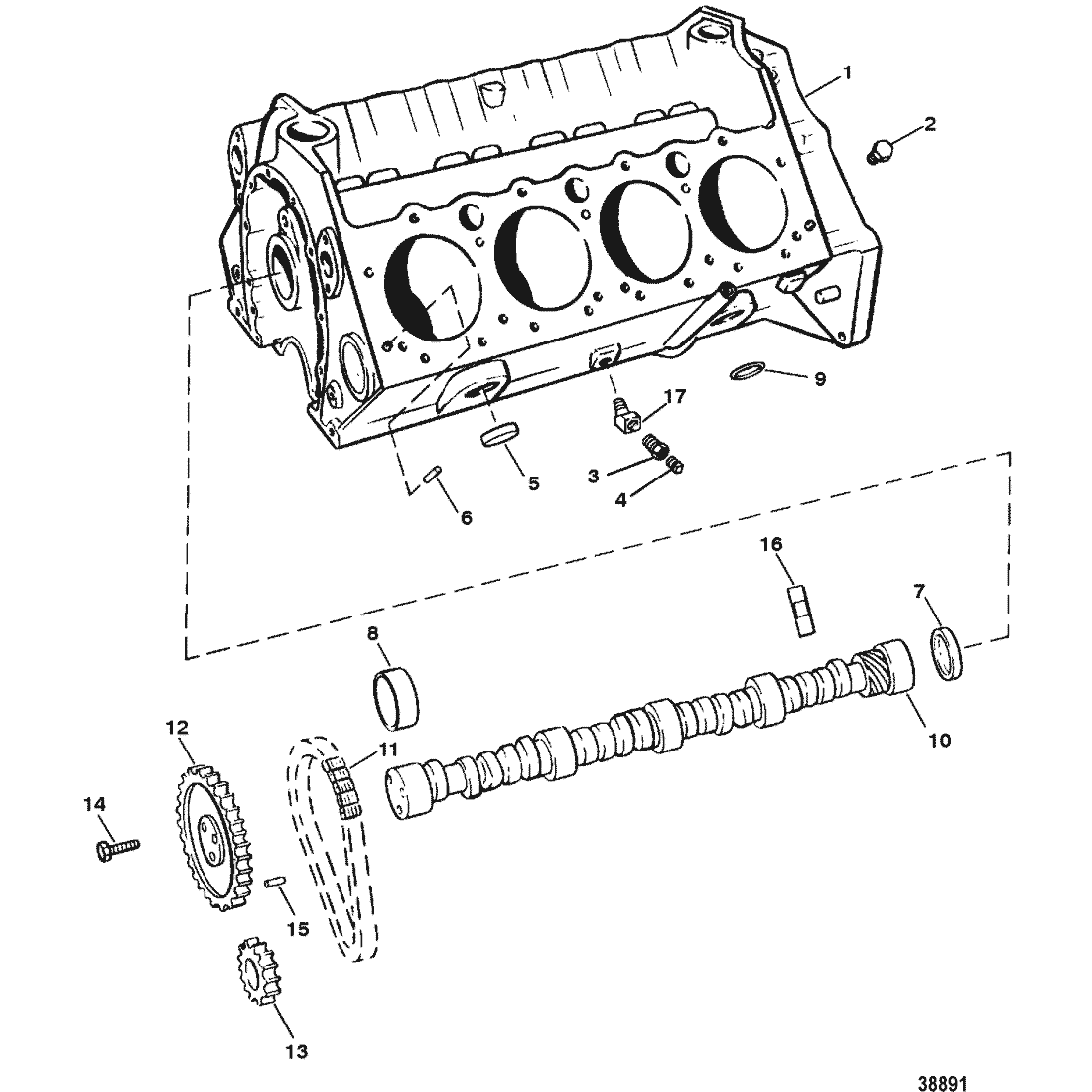

| 1 | NSS | NOT SOLD SEPARATE, CYLINDER BLOCK |
|
$0.00 | $0.00 | 1 | |||
| 2 | 8M0204652 | --PLUG, (.250-18 x .41) | 48340 | SS |
|
$6.79 | $6.64 | 4 | |
| 2 | 12524 | --PLUG, (.375) | 48358 | SS |
|
$5.09 | $4.98 | 2 | |
| 3 | 48556 | --BUSHING , Reducer (.250 To .125) | ACT | $7.99 | $7.81 | 2 | |||
| 4 | 328022 | --PLUG, Pipe (.125-27) | 328021 | SS |
|
$7.59 | $7.42 | 2 | |
| 5 | 34270 | --EXPANSION PLUG, (1.625) | ACT | $9.79 | $9.56 | 8 | |||
| 6 | 52190 | --PIN | ACT | $10.89 | $10.63 | 4 | |||
| 7 | 94140 | --EXPANSION PLUG | ACT | $4.99 | $4.88 | 1 | |||
| 8 | 85684 | --BEARING SET | ACT | $124.49 | $117.25 | 1 | |||
| 9 | 69756 | --O-RING, (.500 Inch) | 811528 | SS |
|
$3.59 | $3.50 | 1 | |
| 10 | 4734 | CAMSHAFT | ACT |
|
$393.99 | $376.61 | 1 | ||
| 11 | 845796T | CHAIN | 811580 | SS |
|
$281.49 | $264.70 | 1 | |
| 12 | 811578 | SPROCKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 845794T | SPROCKET | 811579 | SS |
|
$125.12 | $119.57 | 1 | |
| 10 | 9830 | CAMSHAFT | ACT |
|
$421.49 | $402.69 | 1 | ||
| 11 | 61728 | CHAIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 61726 | SPROCKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 61727 | SPROCKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 8M0043993 | SCREW, (.312-18 x .750) | 35339 | SS |
|
$1.70 | $1.66 | 3 | |
| 15 | 843378 | PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.) | 35312 | SS |
|
$15.99 | $15.61 | 1 | |
| 16 | 811584 | LIFTER (7.4L BRAVO) | ACT | $62.49 | $59.88 | 16 | |||
| 16 | 811583 | LIFTER (454 MAGNUM) | ACT | $28.49 | $27.99 | 16 | |||
| 17 | 37682 | FITTING, Elbow (45 Degree) | ACT | $17.49 | $17.19 | 1 | |||
| - | 806351R5 | MARINE LONG BLOCK (7.4L BRAVO I & II) | 806351A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| - | 806351R5 | MARINE LONG BLOCK (7.4L BRAVO III) | 806359A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| - | 806352R5 | MARINE LONG BLOCK (454 MAGNUM) | 806352A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| - | 811547A92 | GASKET SET, Engine | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 811572A92 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue | ACT | $21.99 | $21.57 | 1 | |||
| - | 8M0170149 | SEALING COMPOUND, (16 Ounce) | 342271 | SS |
|
$49.99 | $49.00 | 1 |
