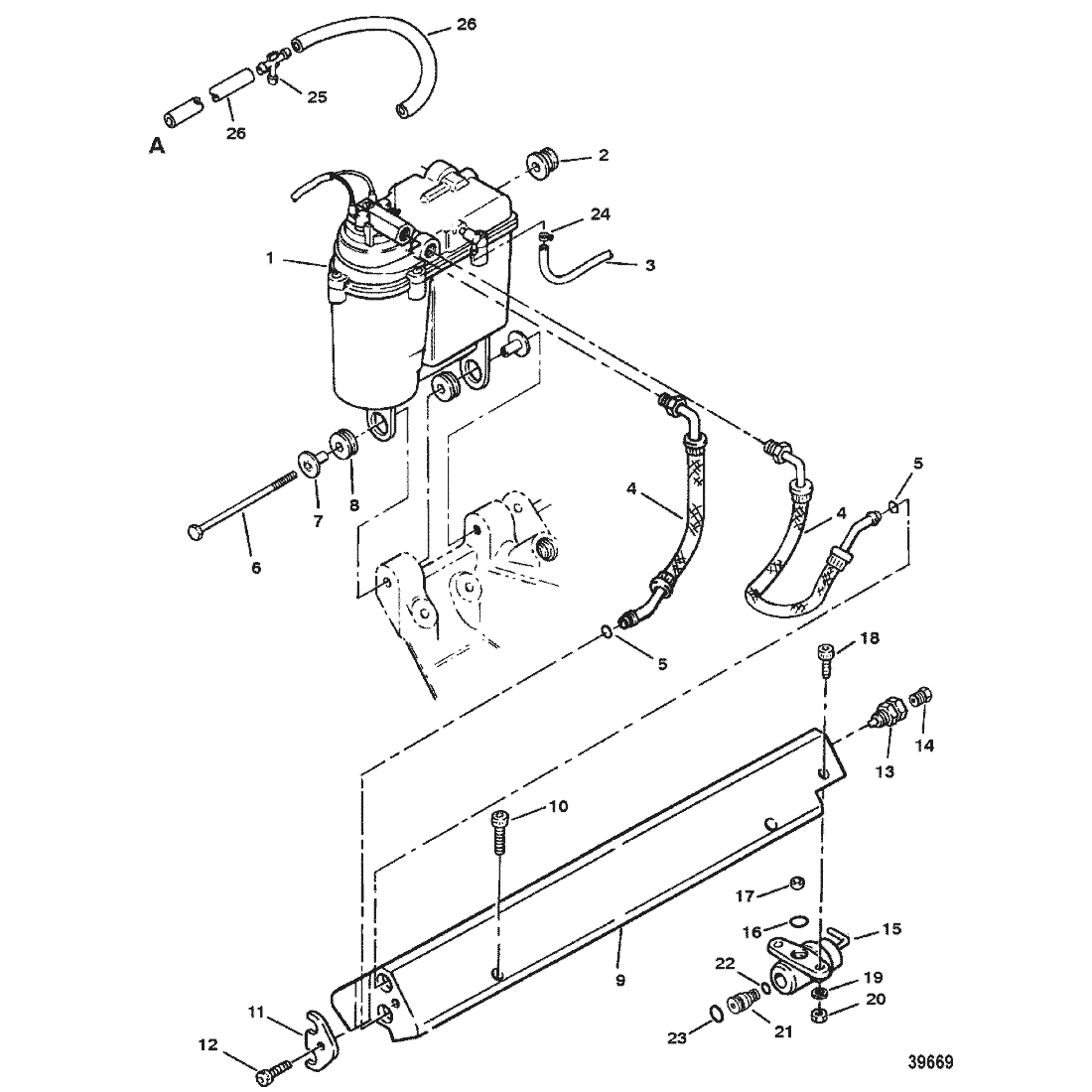

- A = TO FLAME ARRESTOR
- 454 EFI - Serial #0F130439 AND UP
- 502 EFI - Serial #0F128963 AND UP
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806787A3 | TANK ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 25-880331 | GROMMET | SS |
|
$0.00 | $0.00 | 1 | ||
| 3 | 32-80568932 | HOSE | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 32-805435A1 | LINE ASSEMBLY, Fuel | SS |
|
$0.00 | $0.00 | 2 | ||
| 5 | 25-805970 | O-RING | ACT |
|
$3.50 | $3.42 | 2 | ||
| 6 | 10-805392 | SCREW, (1/4-20 x 5.0) | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 23-19064 | BUSHING | ACT | $18.83 | $18.50 | 2 | |||
| 8 | 25-88033 | GROMMET | SS |
|
$0.00 | $0.00 | 2 | ||
| 9 | 805405T | FUEL RAIL | ACT | $130.42 | $122.50 | 1 | |||
| 10 | 10-805698 | SCREW, (1/4-20 x 1.75) | SS |
|
$0.00 | $0.00 | 4 | ||
| 11 | 54-805437 | CLIP | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 10-805557 | SCREW, (5/16-18 x .50) | SS |
|
$0.00 | $0.00 | 1 | ||
| 13 | 22-805408 | VALVE, Rail Pressure Service | ACT | $33.25 | $32.65 | 1 | |||
| 14 | 22-805515 | CAP, Shrader Valve - Brass | SS |
|
$0.00 | $0.00 | 1 | ||
| 15 | 805227A1 | REGULATOR ASSEMBLY, Fuel Pressure | ACT |
|
$142.08 | $133.80 | 1 | ||
| 16 | 25-805531 | --O-RING, (.476 x .075) | ACT |
|
$5.40 | $5.27 | 1 | ||
| 17 | 35-805406 | --FILTER | ACT | $6.60 | $6.44 | 1 | |||
| 18 | 10-852368 | SCREW, (#10-24 x .750) | 56682 | SS/ACT |
|
$1.60 | $1.57 | 2 | |
| 19 | 12-89302 | WASHER, (.203 x .406 x .040) | ACT | $1.70 | $1.66 | 2 | |||
| 20 | 11-805562 | NUT, (#10-24) | SS |
|
$0.00 | $0.00 | 2 | ||
| 21 | 22-805514A1 | FITTING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 25-805553 | --O-RING | ACT |
|
$5.00 | $4.88 | 1 | ||
| 23 | 25-805407 | --O-RING, (.346 x .075) | ACT |
|
$3.10 | $3.03 | 1 | ||
| 24 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | ACT | $3.90 | $3.81 | 2 | |||
| 25 | 22-806689 | FITTING, Tee | ACT | $1.70 | $1.66 | 1 | |||
| 26 | 32-7381567 | TUBING, (42.00 Inches Bulk) | ACT | $29.75 | $29.22 | 2 | |||
| - | 27-811572A94 | GASKET SET, Overhaul | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 27-805396A92 | GASKET SET, Overhaul | SS |
|
$0.00 | $0.00 | 1 |
