| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

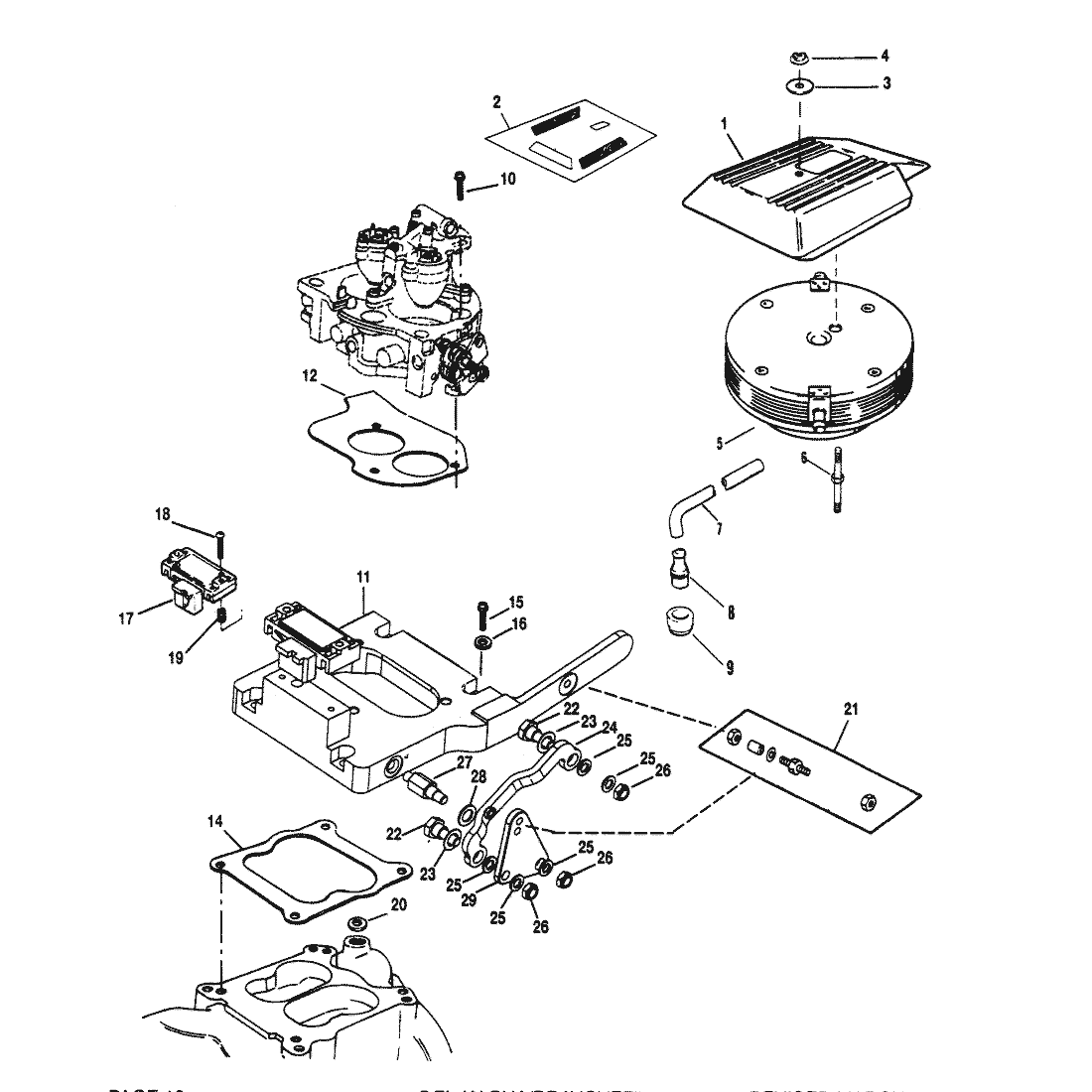

| 1 | 18484A3 | COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 812776A31 | DECAL SET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 86400 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 4 | 826709109 | NUT | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 5 | 806637A1 | FLAME ARRESTOR | 806637T | SS |
|
$0.00 | $0.00 | 1 | |
| 6 | 806703 | STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 8M0086022 | HOSE | 1589418 | SS |
|
$36.49 | $35.68 | 2 | |
| 8 | 97850T | ELBOW (90 DEGREES) | 97850 | SS |
|
$5.69 | $5.56 | 2 | |
| 9 | 8M0071559 | GROMMET | 52188 | SS |
|
$8.49 | $8.29 | 2 | |
| 10 | 805390 | SCREW | ACT | $8.79 | $8.59 | 3 | |||
| 11 | 806954A1 | ADAPTOR ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 806640 | --GASKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 805691 | --FITTING | ACT | $24.99 | $24.55 | 1 | |||
| 14 | 524572 | --GASKET | ACT | $5.49 | $5.37 | 1 | |||
| 15 | 79436 | SCREW | ACT | $4.49 | $4.39 | 4 | |||
| 16 | 843108 | WASHER | ACT | $7.89 | $7.71 | 4 | |||
| 17 | 864856A1 | MAP SENSOR | 805217A1 | SS |
|
$299.99 | $270.38 | 1 | |
| 18 | 807120 | --SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 881733 | --SEAL | 805412 | SS |
|
$20.99 | $20.62 | 1 | |
| 20 | 12524 | PLUG | 48358 | SS |
|
$5.09 | $4.98 | 1 | |
| 21 | 97477A3 | STUD KIT | ACT | $33.19 | $32.57 | 2 | |||
| 22 | 806946 | BOLT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 23 | 861854 | WASHER | 91964 | SS |
|
$4.19 | $4.10 | 2 | |
| 24 | 807097T | CONNECTOR | 806917T | SS |
|
$0.00 | $0.00 | 1 | |
| 25 | 20084 | WASHER | ACT | $2.97 | $2.92 | 5 | |||
| 26 | 826709111 | NUT | 45592 | SS |
|
$4.49 | $4.39 | 3 | |
| 27 | 806915 | SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 79552 | WASHER | ACT | $2.97 | $2.92 | 1 | |||
| 29 | 806916T | PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 75611A88 | ENGINE GASKET SET - Overhaul | ACT | $910.99 | $829.65 | 1 |
