| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

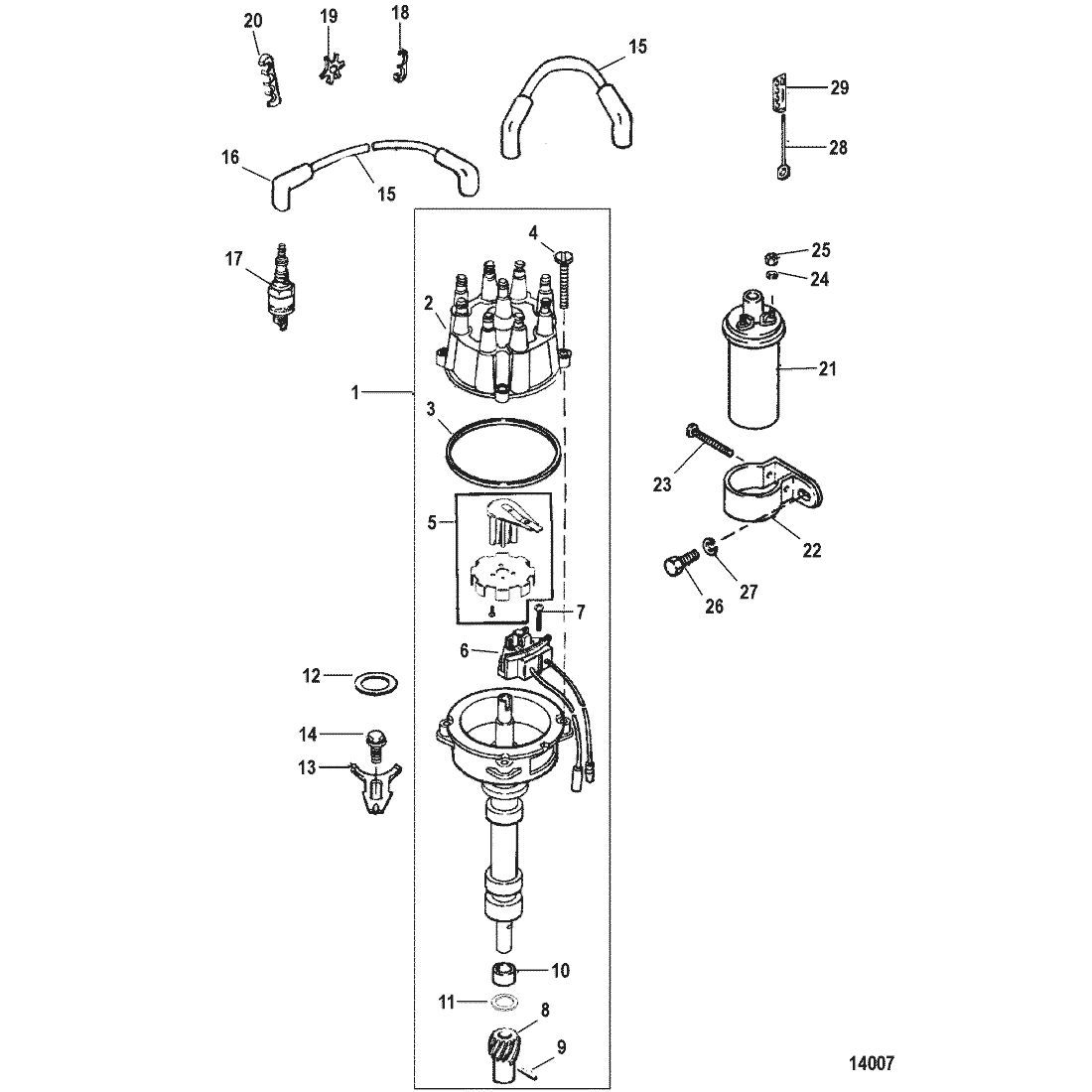

| 1 | 805185A36 | DISTRIBUTOR ASSEMBLY | ACT |
|
$481.49 | $445.56 | 1 | ||
| 2 | 805759T1 | --CAP, Distributor | ACT |
|
$65.49 | $61.61 | 1 | ||
| 3 | 805760 | ----GASKET | ACT | $5.39 | $5.27 | 1 | |||
| 4 | 90926 | --SCREW, (#10-32 x .810) | ACT | $1.00 | $0.98 | 4 | |||
| 5 | 13524T1 | --WHEEL ASSEMBLY | ACT | $18.59 | $18.14 | 1 | |||
| 6 | 892150Q02 | --SENSOR ASSEMBLY | 861780A2 | SS |
|
$111.49 | $100.45 | 1 | |
| 7 | 66686 | --SCREW, (#10-32 x 1.00) | ACT | $1.80 | $1.76 | 2 | |||
| 8 | 8M0115498 | --GEAR | 818807 | SS |
|
$89.99 | $84.52 | 1 | |
| 9 | 47617 | --PIN | ACT | $3.19 | $3.11 | 1 | |||
| 10 | 90915 | --BUSHING | ACT | $9.89 | $9.66 | 2 | |||
| 11 | 90931 | --THRUST WASHER | ACT | $1.00 | $0.98 | 1 | |||
| 12 | 344863 | GASKET | ACT | $2.69 | $2.62 | 1 | |||
| 13 | 88731 | CLAMP | 52185 | SS |
|
$9.99 | $9.76 | 1 | |
| 14 | 805559 | SCREW, (.375-16 x .875) Stainless Steel | ACT | $10.29 | $10.05 | 1 | |||
| 15 | 816761Q17 | CABLE KIT, Ignition, Spartk Plugs And Coil | ACT |
|
$90.49 | $85.23 | 1 | ||
| 16 | 63709A1 | --BOOT/TERMINAL KIT | ACT | $8.19 | $8.00 | 8 | |||
| 17 | 816336Q | SPARK PLUG | 816336 | SS |
|
$6.69 | $6.54 | 8 | |
| 18 | 54676 | RETAINER, Two Wire | ACT |
|
$5.19 | $5.08 | 2 | ||
| 19 | 32783 | RETAINER, Three Wire, Three Wire | ACT |
|
$4.09 | $4.00 | 2 | ||
| 20 | 32784 | RETAINER, Four Wire, Four Wire | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 8M0079202 | COIL KIT | 805570A2 | SS |
|
$127.49 | $114.72 | 1 | |
| 22 | 65970T1 | --BRACKET | ACT | $17.89 | $17.46 | 1 | |||
| 23 | 41408 | --SCREW, (#10-32 x 1.50) | ACT | $3.39 | $3.30 | 1 | |||
| 24 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 25 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 2 | |||
| 26 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 1 | |||
| 27 | 20553 | WASHER, (.406 x .734 x .063) | ACT | $1.50 | $1.47 | 1 | |||
| 28 | 90096A1 | STUD ASSEMBLY, (#10-32 x Special) | ACT |
|
$15.59 | $15.22 | 2 | ||
| 29 | 72821 | --RETAINER | ACT | $5.49 | $5.37 | 2 | |||
| - | 861246A05 | GASKET SET | 861246A98 | SS |
|
$826.99 | $752.89 | 1 |
