| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

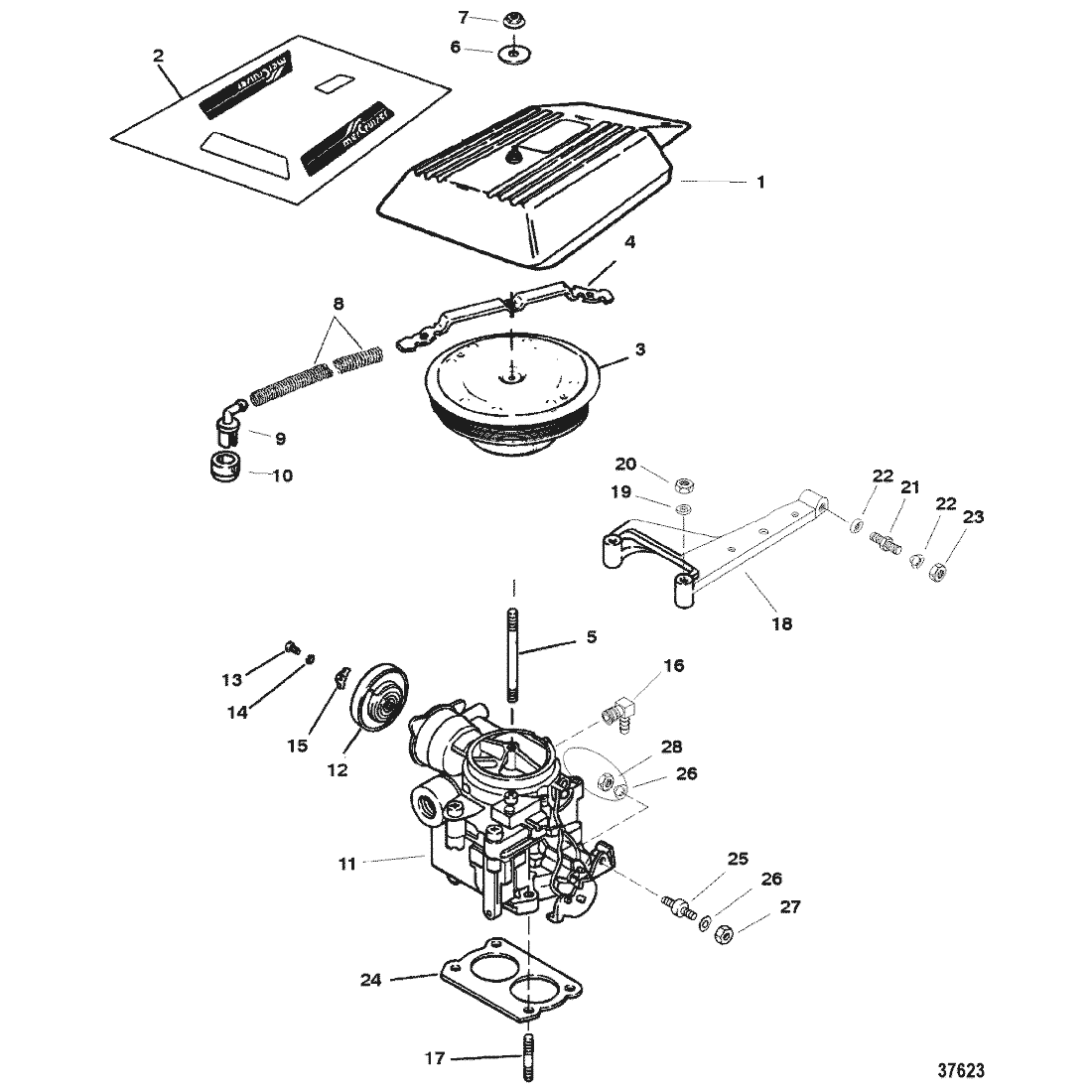

| 1 | 18484A3 | COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 812776A32 | DECAL SET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 863200 | FLAME ARRESTOR | 805016A1 | NLA |
|
$224.99 | $211.50 | 1 | |
| 4 | 805313 | --RETAINER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8M0113181 | --STUD, (.250-20/.250-28 x Special) | 805295 | SS |
|
$41.99 | $41.24 | 1 | |
| 6 | 86400 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 7 | 826709109 | NUT, (.250-28) | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 8 | 8M0086022 | HOSE, Breather | 1589418 | SS |
|
$36.49 | $35.68 | 2 | |
| 9 | 97850T | ELBOW, 90 Degree, Breather | 97850 | SS |
|
$5.69 | $5.56 | 2 | |
| 10 | 8M0071559 | GROMMET | 52188 | SS |
|
$8.49 | $8.29 | 2 | |
| 11 | 807312A1 | CARBURETOR ASSEMBLY | ACT |
|
$1,015.49 | $930.67 | 1 | ||
| 12 | 70125A02 | --COVER, Choke | 70125A1 | SS |
|
$194.99 | $183.64 | 1 | |
| 13 | 33047 | --SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 14 | 26995 | --LOCKWASHER, (#8) Stainless Steel | ACT | $1.10 | $1.08 | 3 | |||
| 15 | 33036 | --RETAINER | NLA |
|
$0.00 | $0.00 | 3 | ||
| 16 | 54090 | --ELBOW (90 DEG.) | ACT | $18.99 | $18.66 | 1 | |||
| 17 | 70237 | STUD, (.312-18/.312-24 x 2.620) | ACT | $4.19 | $4.10 | 2 | |||
| 17 | 8M0113177 | STUD, (.312 x 1.500) | 70236 | SS |
|
$5.49 | $5.37 | 2 | |
| 18 | 805489T | BRACKET | ACT | $85.99 | $82.64 | 1 | |||
| 19 | 20084 | WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 4 | |||
| 20 | 862902 | NUT, (.9375-24) | 25594 | SS |
|
$2.39 | $2.33 | 4 | |
| 21 | 38525 | STUD | ACT | $5.19 | $5.08 | 1 | |||
| 22 | 24664 | WASHER, (M4 x 20) | ACT | $1.40 | $1.37 | 2 | |||
| 23 | 826709109 | NUT, (.250-28) | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 24 | 8079821 | GASKET | 807982 | SS |
|
$5.29 | $5.17 | 1 | |
| 25 | 8M0113178 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 96112 | SS |
|
$3.09 | $3.01 | 1 | |
| 26 | 8M0204649 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 | SS |
|
$1.20 | $1.18 | 2 | |
| 27 | 8267089 | NUT, (.250-28) | 20361 | SS |
|
$1.50 | $1.47 | 1 | |
| 28 | 826709109 | NUT, (.250-28) | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| - | 806871A96 | GASKET SET, Overhaul | ACT | $464.29 | $443.79 | 1 |
