Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

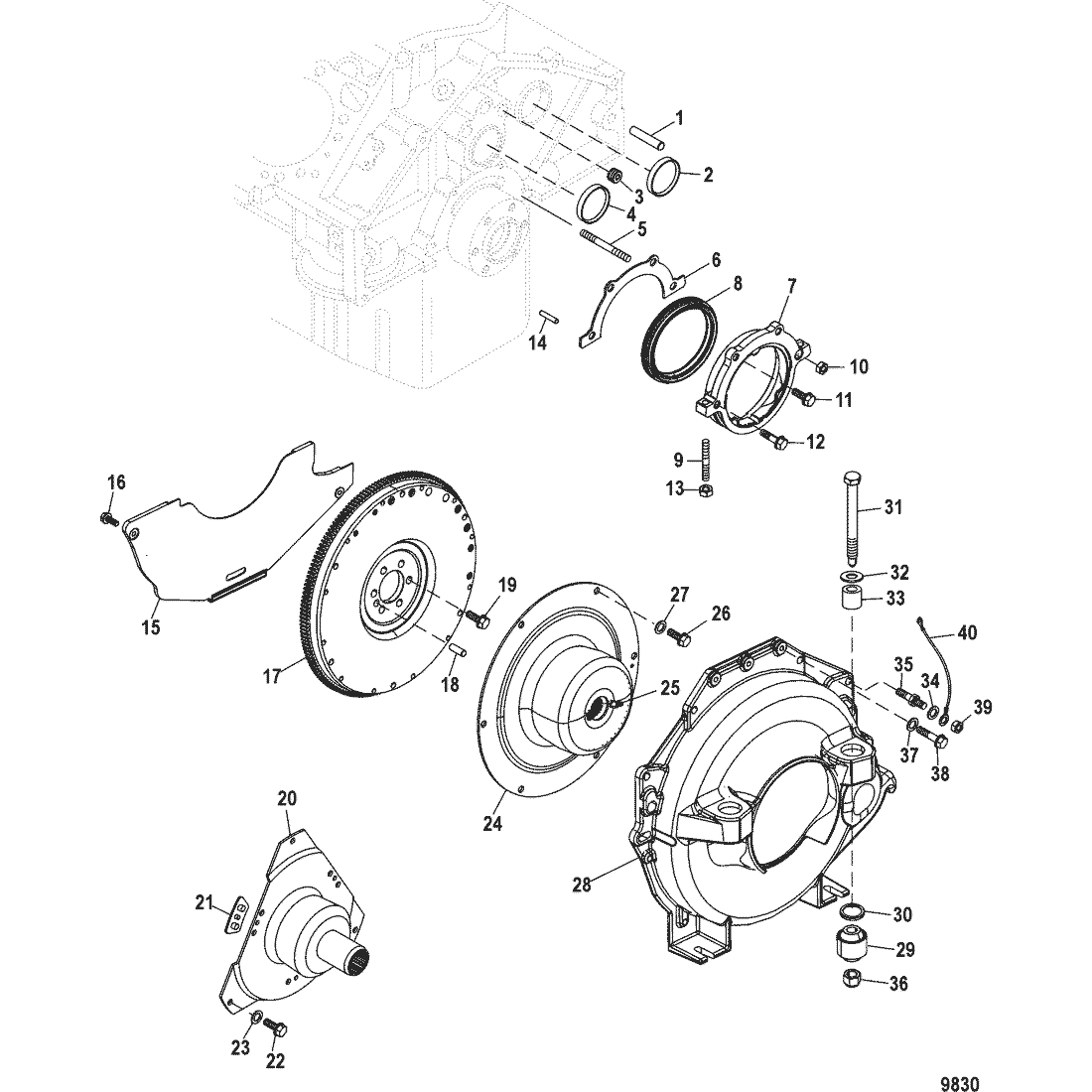

1 8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location 843379 NLA $4.09 $4.00 2
2 34270 EXPANSION PLUG, (1.625), Engine Core Hole ACT $9.79 $9.56 8
3 8M0204652 PLUG, (.250-18 x .41), Oil Galley 48340 SS $6.79 $6.64 4
4 72640 PLUG, Expansion, Camshaft Bearing Hole ACT $14.19 $13.85 1
5 14827 STUD, (.250-20 x 2.180) ACT $17.89 $17.52 2
6 881715 GASKET, Crankshaft Oil Seal Housing ACT $19.89 $19.41 1
7 852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal ACT $231.99 $208.93 1
8 852941 --SEAL, Cranskshaft Oil ACT $149.49 $134.55 1
9 11989 --STUD, (.312-18 x 1.6718) ACT $16.09 $15.70 2
10 8M0098315 NUT 8167301 SS $4.19 $4.10 1
11 14242 BOLT, (.250-20 x .875) ACT $23.59 $23.16 2
12 8M0064241 BOLT, (.250-20 x 1.750) 14243 SS $9.09 $8.88 1
13 8M0148822 NUT, (.312-18) 11971 SS $17.09 $16.68 2
14 14263 PIN, Dowel, Oil Seal Housing Location ACT $6.79 $6.64 1
15 807260A2 COVER KIT, Flywheel ACT $96.49 $90.88 1
NS 807296 --NUT, (.250-20) ACT $2.79 $2.72 2
16 76596 --SCREW, (.250-20 x 1.250) ACT $2.49 $2.43 2
16 86885 SCREW, (.250-20 x 1.500) Stainless Steel, Not Included With Item 15 ACT $3.19 $3.11 2
17 8M0047213 FLYWHEEL 9520 SS $998.49 $909.34 1
18 43504 PIN, Dowel, Flywheel ACT $10.69 $10.44 2
19 8M0214958 SCREW, (.437-20 x 1.00) 845757 SS $5.89 $5.76 6
20 18643A5 COUPLING ASSEMBLY ACT $400.49 $370.70 1
NS 8M0169589 --FITTING, Grease 74036 SS $4.79 $4.69 1
21 18644 --BUMPER, Rubber ACT $3.79 $3.69 3
22 8M0204643 --SCREW, (.375-16 x 1.12) 14883 SS $1.90 $1.86 3
23 13510 --WASHER ACT $9.49 $9.27 3
24 8M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum Hub 861523A9 SS $744.49 $744.49 1
24 861523A11 COUPLER ASSEMBLY, Engine ACT $988.49 $900.10 OPT
25 8M0169590 --FITTING 49099 SS $4.59 $4.49 2
26 863480 --SCREW, (.375-16 x 1.125) ACT $3.79 $3.69 6
27 20572 --WASHER, (.390 x .750 x .093) ACT $1.60 $1.57 6
28 865657A03 HOUSING ASSEMBLY, Flywheel ACT $990.99 $902.44 1
29 8M0103028 MOUNT KIT, Rubber 865329A02 NLA $115.99 $104.50 1
30 99322 --SPACER ACT $6.69 $6.54 2
31 8M0215010 SCREW, (.500-20 x 5.370) Special 97934 SS $5.99 $5.86 2
32 35777 WASHER, (.5156 x 1.375 x .125) Aluminum ACT $2.59 $2.53 2
33 99299 SPACER, (.520 x .870 x .630) ACT $7.49 $7.32 2
34 35048 LOCKWASHER, (.375) ACT $1.20 $1.18 2
35 861316 STUD, (.375-16 x 2.750) Special 64066 SS $15.09 $14.73 2
36 863332 NUT, (.500-20) Aluminum ACT $7.19 $7.03 2
37 20572 WASHER, (.390 x .750 x .093) ACT $1.60 $1.57 1
38 37612 SCREW, (.375-16 x 1.250) ACT $2.49 $2.43 3
38 68101 SCREW, (.375-16 x 1.375) ACT $2.59 $2.53 3
38 32132 SCREW, (.375-16 x 1.750) ACT $2.99 $2.92 1
38 35047 SCREW, (.375-16 x 1.250) Stainless Steel ACT $3.79 $3.69 4
38 8M2015899 SCREW, (.375-16 x 1.37) Stainless Steel ACT $3.09 $3.01 4
39 32219 NUT, (.375-16) ACT $2.79 $2.72 1
39 82671112 NUT, (.375-16) ACT $3.59 $3.50 1
40 62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black 62826A6 SS $16.99 $16.62 2
