| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

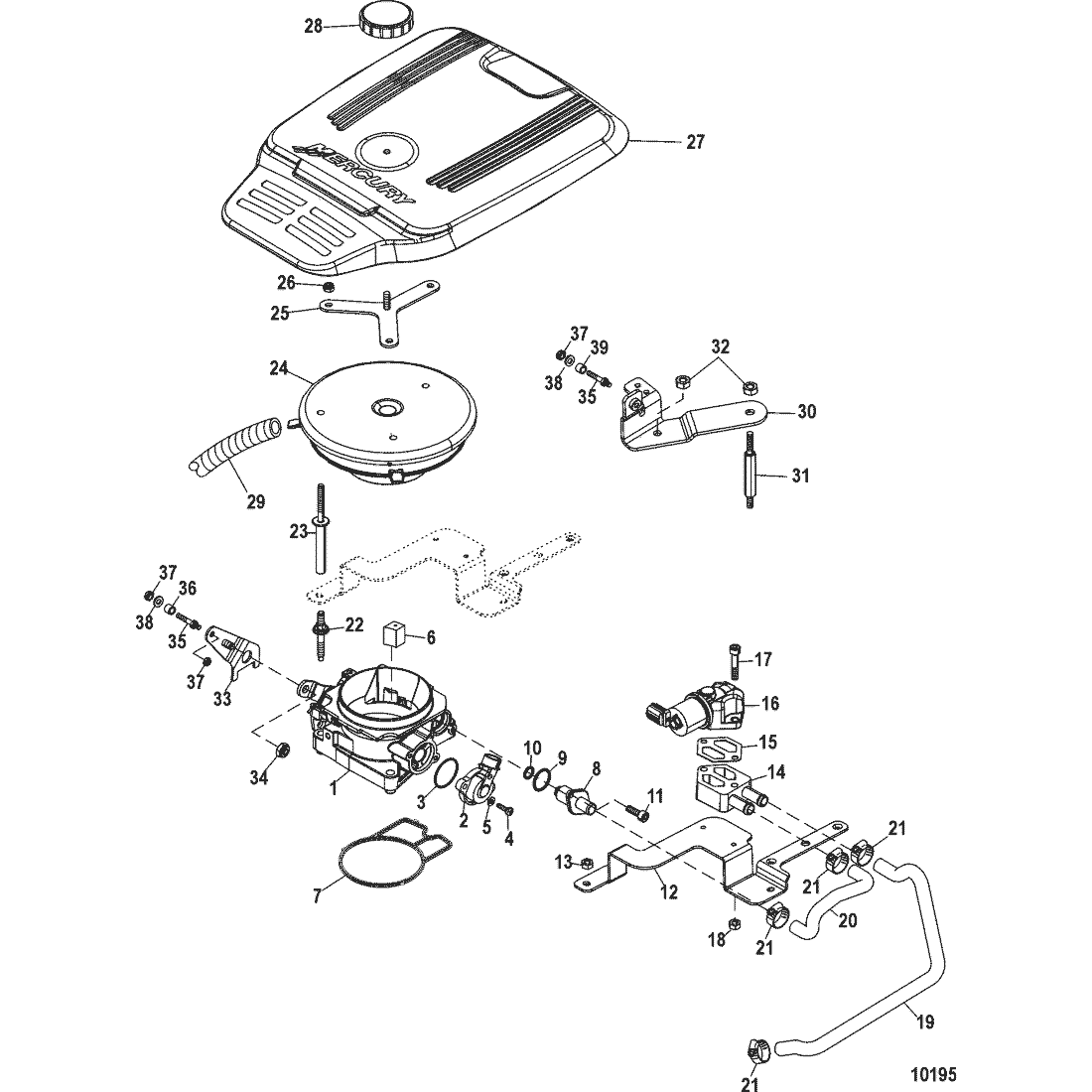

| 1 | 8M0096994 | THROTTLE BODY ASSEMBLY | 888770T | SS |
|
$460.49 | $426.25 | 1 | |
| 2 | 8M0221731 | --SENSOR, TPS | 853678T | SS |
|
$128.99 | $116.15 | 1 | |
| 3 | NSS | ----NOT SOLD SEPARATE, O-Ring |
|
$0.00 | $0.00 | 1 | |||
| 4 | 853680 | --SCREW KIT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 5 | NSS | --NOT SOLD SEPARATE, Washer |
|
$0.00 | $0.00 | 2 | |||
| 6 | 863829 | --MUFFLER, Intake Air Control | SS |
|
$2.90 | $2.84 | 1 | ||
| 7 | 8M0162949 | --GASKET, Throttle Body | 885172 | SS |
|
$83.99 | $78.87 | 1 | |
| 8 | 862999A5 | PLUG KIT | 862999A3 | SS |
|
$62.49 | $58.70 | 1 | |
| 9 | 863006 | --O-RING | ACT | $2.59 | $2.53 | 1 | |||
| 10 | 808547 | --O-RING | ACT | $1.70 | $1.66 | 1 | |||
| 11 | 4008612 | SCREW, (M4 x 12) | ACT | $1.80 | $1.76 | 2 | |||
| 12 | 863647T | BRACKET | ACT | $43.49 | $42.72 | 1 | |||
| 13 | 401366 | NUT, (M6) Stainless Steel | ACT | $3.59 | $3.50 | 1 | |||
| 14 | 863419A1 | VALVE ASSEMBLY, Air | ACT | $52.99 | $49.79 | 1 | |||
| 15 | 8M0119616 | GASKET, Air Valve | 863112 | SS |
|
$3.09 | $3.01 | 1 | |
| 16 | 862998 | VALVE, Idle Air | ACT | $214.17 | $193.08 | 1 | |||
| 17 | F2192 | SCREW, (.250-20 x 1.750) | ACT | $5.79 | $5.66 | 2 | |||
| 18 | 401366 | NUT, (M6) Stainless Steel | ACT | $3.59 | $3.50 | 2 | |||
| 19 | 863429 | HOSE | ACT | $44.49 | $43.54 | 1 | |||
| 20 | 863428 | HOSE | ACT | $28.49 | $27.91 | 1 | |||
| 21 | 815504210 | CLAMP, Worm Gear, Hose | ACT | $4.19 | $4.10 | 4 | |||
| N.S. | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | 4 | |
| 22 | 8M0088142 | STUD | 885171 | SS |
|
$45.99 | $45.17 | 3 | |
| 23 | 864338 | STUD, Special | ACT | $12.69 | $12.39 | 3 | |||
| 24 | 863416T | FLAME ARRESTOR | 863416 | SS |
|
$245.49 | $221.02 | 1 | |
| 25 | 863423 | BRACKET, Cover Mount | ACT | $17.89 | $17.46 | 1 | |||
| 26 | 401386 | NUT, (M6) Stainless Steel | ACT | $5.09 | $4.98 | 3 | |||
| 27 | 879288T66 | COVER, Engine | 863681 | SS |
|
$176.99 | $159.57 | 1 | |
| 28 | 863701 | KNOB, Engine Cover | ACT | $12.99 | $12.68 | 1 | |||
| 29 | 8M0086022 | HOSE, (16.50 Inches Bulk), Breather | 1589424 | SS |
|
$36.49 | $35.68 | 1 | |
| 30 | 863420T | BRACKET, Throttle Anchor | ACT | $16.39 | $16.00 | 1 | |||
| 31 | 863439 | STUD | ACT | $6.59 | $6.44 | 1 | |||
| 32 | 401366 | NUT, (M6) Stainless Steel | ACT | $3.59 | $3.50 | 2 | |||
| 33 | 863417 | BRACKET, Throttle | ACT | $23.29 | $22.83 | 1 | |||
| 34 | 8267138 | NUT, (.25-20) | ACT | $2.79 | $2.72 | 1 | |||
| 35 | 97477A3 | STUD KIT, Throttle Anchor | ACT |
|
$33.19 | $32.57 | 2 | ||
| 36 | NSS | --NOT SOLD SEPARATE, Spacer |
|
$0.00 | $0.00 | 1 | |||
| 37 | 8267139 | NUT, (.250-28) | ACT | $2.59 | $2.53 | 3 | |||
| 38 | 20533 | WASHER | ACT | $1.50 | $1.47 | 2 | |||
| 39 | 31866 | SPACER, (.256 x .313 x .625) | ACT | $5.69 | $5.56 | 2 | |||
| 39 | 11284 | SPACER, (.62 Diameter) | ACT | $4.19 | $4.10 | 1 | |||
| 40 | 86400 | WASHER, Seal | ACT | $1.70 | $1.66 | 1 |
