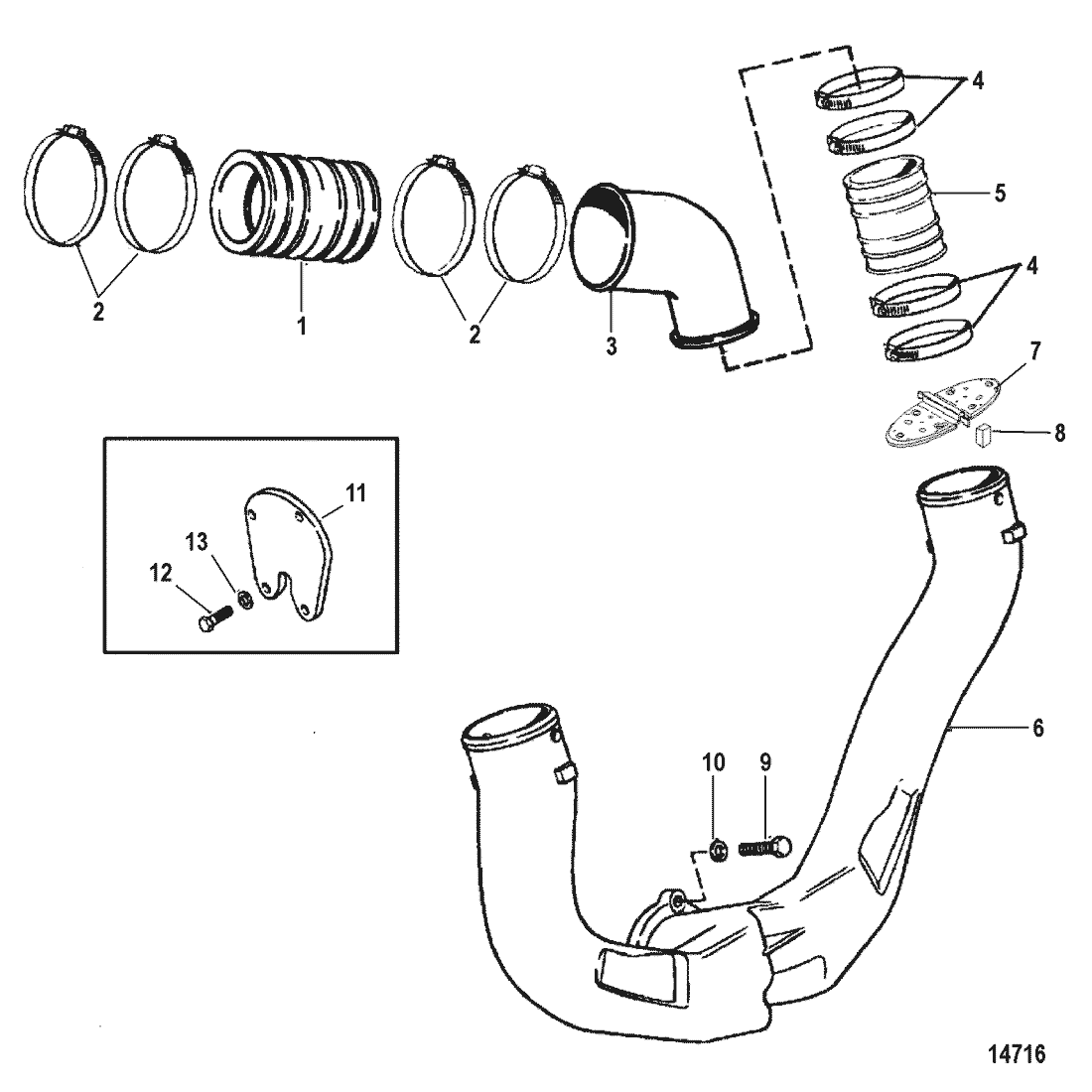

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0199681 | TUBE | 44348T | SS |
|
$84.49 | $81.04 | 2 | |
| 1 | 4865910 | TUBE, Exhaust (12.00 Inches) | ACT |
|
$89.99 | $86.33 | 2 | ||
| 2 | 815504272 | CLAMP, Worm Gear | ACT | $5.69 | $5.56 | 8 | |||
| 3 | 11086T | ELBOW (PORT) | ACT |
|
$339.49 | $319.56 | 1 | ||
| 3 | 14343T | ELBOW (STARBOARD) | ACT |
|
$339.49 | $319.56 | 1 | ||
| 3 | 14801A1 | ELBOW KIT | ACT |
|
$624.49 | $587.47 | 1 | ||
| 4 | 815504272 | CLAMP, Worm Gear | ACT | $5.69 | $5.56 | 8 | |||
| 5 | 8M0199680 | TUBE | 14358T | SS |
|
$81.99 | $78.71 | 2 | |
| 6 | 8M0115149 | PIPE | 807130A4 | SS |
|
$1,017.99 | $933.03 | 1 | |
| 7 | 807166A1 | --SHUTTER ASSEMBLY, Water | ACT |
|
$100.99 | $94.96 | 2 | ||
| 8 | 8M0204688 | ----GROMMET | 807167 | SS |
|
$3.59 | $3.50 | 4 | |
| 9 | 8M0113174 | SCREW, (.375-16 x 1.25) | 58640 | SS |
|
$7.29 | $7.12 | 4 | |
| 10 | 41471 | LOCKWASHER, (.375) | ACT | $2.29 | $2.24 | 4 | |||
| NS | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | AR | |
| 11 | 861776A2 | PLATE | 97350T1 | SS |
|
$119.49 | $112.30 | 1 | |
| 12 | 8M0113180 | SCREW, (.375-16 x 1.00) | 98794 | SS |
|
$5.09 | $4.98 | 4 | |
| 13 | 41471 | LOCKWASHER, (.375) | ACT |
|
$2.29 | $2.24 | 4 |
