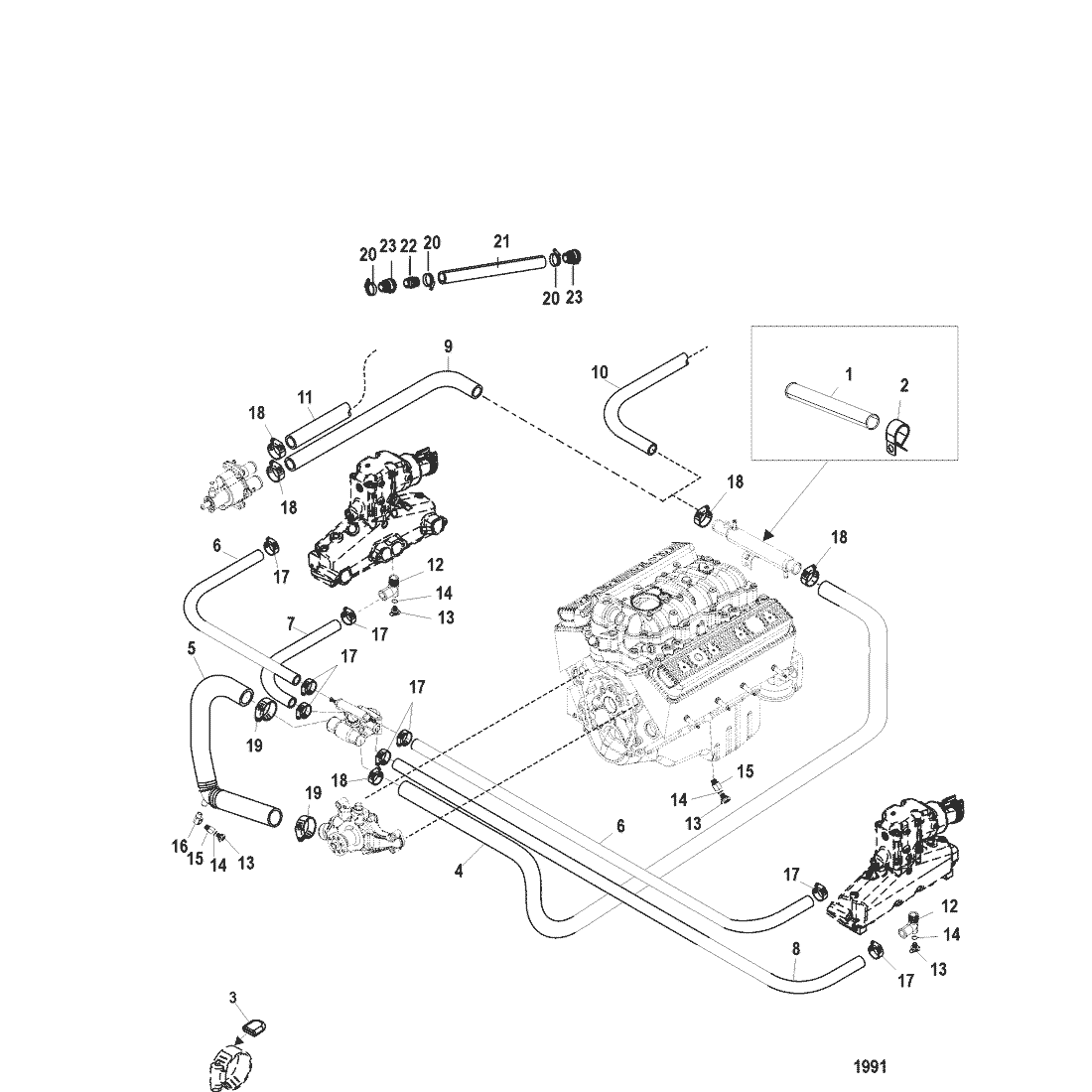

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 860315A1 | TUBE, Hose Extender(Compact Hydralic Steering) | ACT |
|
$41.49 | $40.58 | 1 | ||
| 2 | 806616 | CLAMP | ACT |
|
$3.09 | $3.01 | 1 | ||
| 3 | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | AR | |
| 4 | 865093 | HOSE, Power Steering Cooler to Thermostat Housing | ACT | $86.99 | $81.54 | 1 | |||
| 5 | 861590A05 | HOSE ASSEMBLY, Circulating Pump to Thermostat Housing | 861590A2 | SS |
|
$65.99 | $61.84 | 1 | |
| 6 | 864979 | HOSE, Exhaust Elbow to Thermostat Housing | ACT |
|
$49.49 | $48.45 | 1 | ||
| 6 | 864977 | HOSE, Exhaust Elbow to Thermostat Housing | NLA |
|
$39.08 | $38.38 | 1 | ||
| 7 | 807697 | HOSE, Thermostat Housing to Starboard Manifold | ACT | $79.49 | $74.63 | 1 | |||
| 8 | 862139 | HOSE, Thermostat Housing to Port Exhaust Manifold | ACT | $61.99 | $58.23 | 1 | |||
| 9 | 8080441 | HOSE, Molded, Sea Water Pump To Power Stering Cooler | ACT |
|
$92.49 | $87.11 | 1 | ||
| 10 | 807661 | HOSE, Transom Assembly to Power Steering Cooler | ACT |
|
$66.99 | $62.94 | 1 | ||
| 11 | 8M0062666 | HOSE, Transom Water Pick Up To Sea Water Pump (36 IN.) | 86334365 | SS |
|
$220.99 | $199.09 | 1 | |
| 12 | 862210A01 | ELBOW KIT, Drain | 806926A1 | SS |
|
$29.09 | $28.56 | 2 | |
| 13 | 8M0119211 | --PLUG KIT, (.500-13) Royal Blue | 806608A1 | SS |
|
$10.19 | $9.95 | AR | |
| 14 | 62706 | ----O-RING, (.426 x .070) | ACT | $2.39 | $2.33 | AR | |||
| 15 | 8M0214973 | BUSHING | 860088 | SS |
|
$12.79 | $12.49 | 3 | |
| 16 | 46982 | FITTING, (90 Degree) | ACT | $27.89 | $27.33 | 1 | |||
| 17 | 815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | ACT |
|
$18.69 | $18.24 | 4 | ||
| 18 | 8M0188622 | CLAMP, Worm Gear (1.98 DIameter), Hose | 815504222 | SS |
|
$5.69 | $5.56 | 5 | |
| 19 | 815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | ACT |
|
$8.89 | $8.68 | 2 | ||
| 20 | 815504220 | CLAMP, Worm Gear | ACT | $7.59 | $7.42 | 3 | |||
| 21 | 8M0062653 | HOSE, (4.00 Inches) | 865672013 | SS |
|
$7.39 | $7.22 | 1 | |
| 22 | 865362 | QUICK CONNECT | ACT | $9.69 | $9.46 | 1 | |||
| 23 | 865324 | QUICK CONNECT | ACT | $11.79 | $11.51 | 2 |
