| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

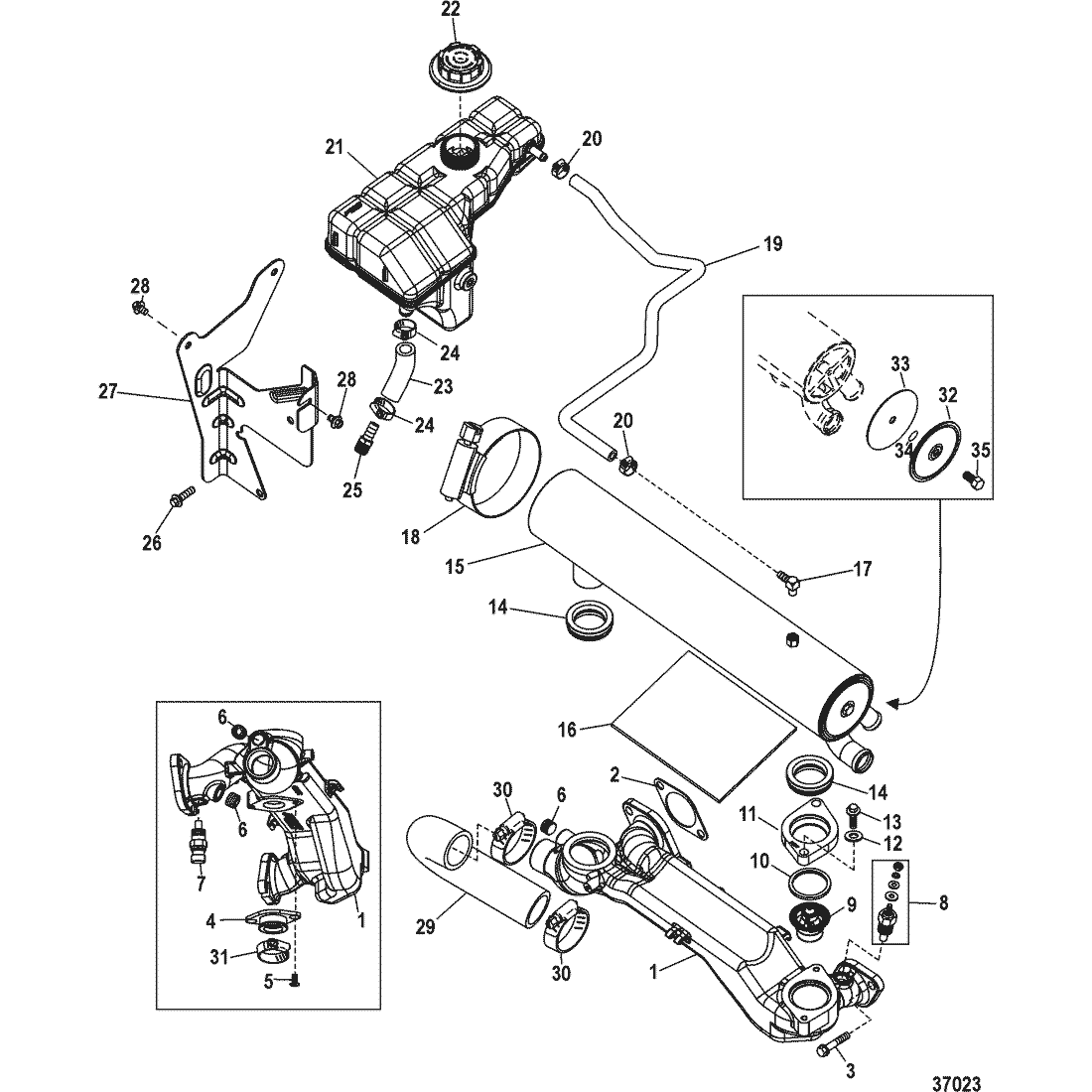

| 1 | 863771T | CROSSOVER, Coolant | ACT | $408.49 | $390.47 | 1 | |||
| 2 | 881620001 | GASKET, Cylinder Head to Crossover | 881620 | SS |
|
$40.99 | $40.18 | 2 | |
| 3 | 881593 | SCREW, (M10 x 30) | ACT | $14.39 | $14.05 | 4 | |||
| 4 | 861947 | SEAL | ACT | $44.49 | $43.54 | 1 | |||
| 5 | 863609 | SCREW, (M6 x 14) | ACT | $1.99 | $1.95 | 2 | |||
| 6 | 12524 | PLUG, (.375-18 x .475) Brass | ACT | $5.09 | $4.98 | 2 | |||
| 7 | 805218T | SENSOR | ACT | $80.99 | $77.83 | 1 | |||
| 8 | 806490T | SENDER, Temerature | ACT | $41.49 | $40.58 | 1 | |||
| 9 | 8M0076464 | THERMOSTAT, 71°C (160°F) | 863358T | SS |
|
$40.99 | $40.10 | 1 | |
| 10 | 865078 | SEAL, Thermostat | ACT | $15.09 | $14.73 | 1 | |||
| 11 | 861949T | RETAINER, Thermostat | ACT | $44.99 | $44.03 | 1 | |||
| 12 | 8M0207778 | WASHER | 12038 | SS |
|
$11.89 | $11.61 | 2 | |
| 13 | 4000354 | SCREW, (M8 x 30) | ACT | $4.79 | $4.69 | 2 | |||
| 14 | 865066 | SEAL, Heat Exchanger to Crossover | ACT | $19.09 | $18.63 | 2 | |||
| 15 | 863903A01 | HEAT EXCHANGER | 863903T | SS |
|
$2,079.99 | $1,906.72 | 1 | |
| NS | 863355 | DECAL, Caution, Heat Exchanger | ACT | $2.69 | $2.62 | 1 | |||
| 16 | 863392 | PAD, Heat Exchanger | ACT | $7.79 | $7.61 | 2 | |||
| 17 | 629101 | FITTING, Elbow - 90 Degree (.125-27) | ACT | $13.39 | $13.07 | 1 | |||
| 18 | 815504280 | CLAMP, Worm Gear, Hose | ACT | $8.09 | $7.90 | 2 | |||
| 19 | 863303 | HOSE, Coolant Bleed | ACT | $52.99 | $50.90 | 1 | |||
| 20 | 815504206 | CLAMP, Worm Gear, Hose | ACT | $6.79 | $6.64 | 2 | |||
| 21 | 861944A1 | RESERVOIR, Coolant | ACT |
|
$283.49 | $266.74 | 1 | ||
| 22 | 862863 | --CAP, Coolant Reservoir | ACT | $20.19 | $19.81 | 1 | |||
| 23 | 863304 | HOSE, Reservoir to Crossover | ACT | $15.39 | $15.02 | 1 | |||
| 24 | 815504212 | CLAMP, Worm Gear, Hose | ACT | $5.89 | $5.76 | 2 | |||
| 25 | 8M0214961 | FITTING, Straight Hose | 8552141 | SS |
|
$36.49 | $35.72 | 1 | |
| 26 | 863388 | SCREW, (M10 x 16) | ACT | $14.49 | $14.14 | 3 | |||
| 27 | 862986 | BRACKET, Coolant Reservoir | ACT | $51.99 | $49.94 | 1 | |||
| 28 | 81893412 | SCREW, (M8 x 12) | ACT | $3.59 | $3.50 | 3 | |||
| 29 | 8619521 | HOSE, Crossover to Pump | ACT | $65.99 | $63.32 | 1 | |||
| 30 | 815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | ACT | $8.89 | $8.68 | 2 | |||
| 31 | 815504221 | CLAMP, Hose | 865373 | SS |
|
$6.89 | $6.73 | 1 | |
| 32 | 8M0036623 | COVER, Heat Exchanger End | 814875 | SS |
|
$104.99 | $98.65 | 2 | |
| 32 | 891717 | COVER, Heat Exchanger End | ACT |
|
$101.99 | $95.98 | 2 | ||
| 33 | 8M0036987 | GASKET, Heat Exchanger Cover | 803644 | SS |
|
$21.99 | $21.53 | 2 | |
| 33 | 891716 | GASKET, Heat Exchanger Cover | ACT |
|
$19.19 | $18.73 | 2 | ||
| 34 | 8M0039163 | O-RING, Special | 814878 | SS |
|
$8.79 | $8.59 | 2 | |
| 35 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| N.S. | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | AR |
