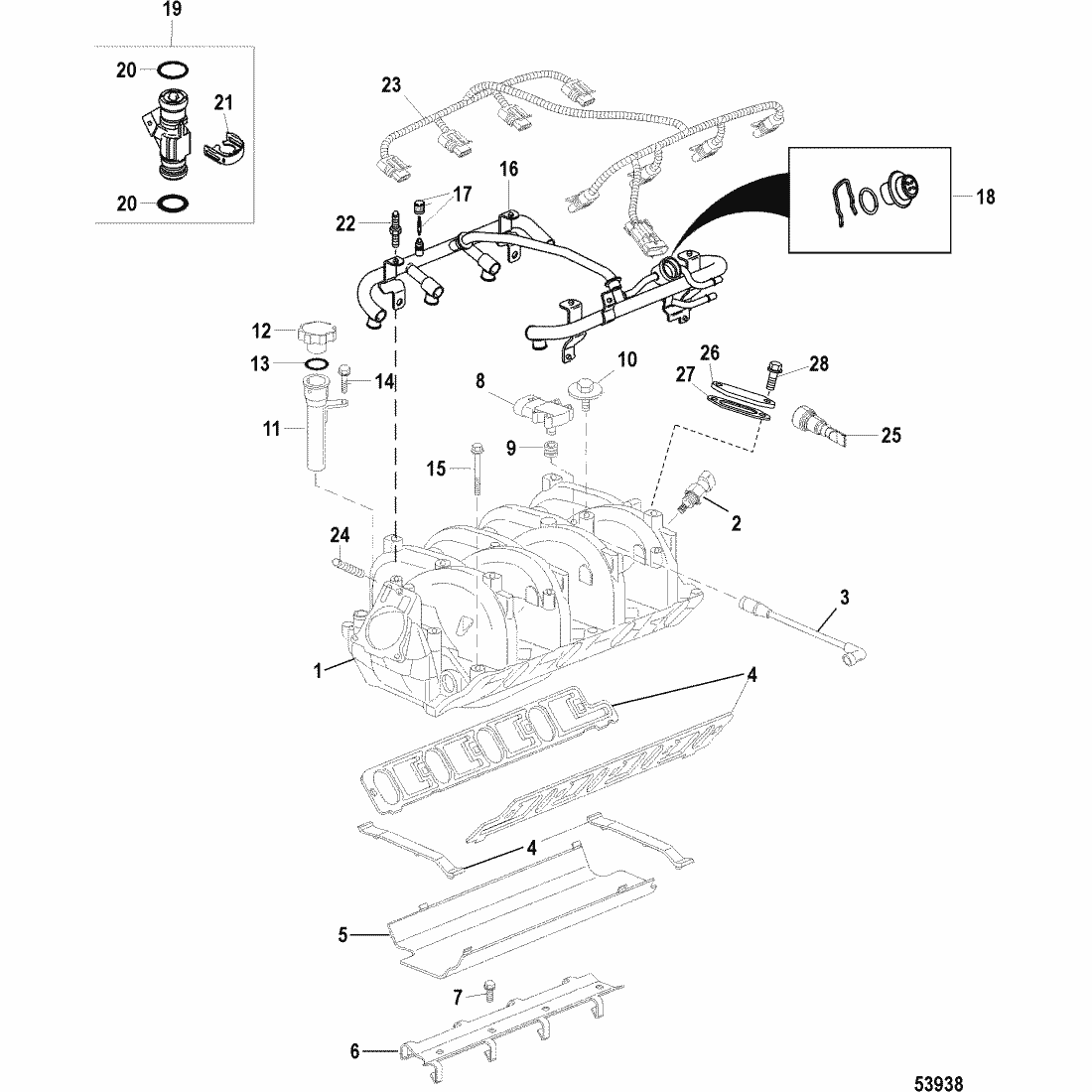

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0064079 | MANIFOLD, Intake | 881690001 | NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 805223T | SENSOR, Manifold Air Temperature | ACT | $160.99 | $151.54 | 1 | |||
| 3 | 881734 | HOSE, Fuel Pressure Regulator | ACT | $16.69 | $16.37 | 1 | |||
| 4 | 881633T01 | GASKET SET, Intake Manifold and Valley | 895235 | SS |
|
$324.49 | $305.35 | 1 | |
| 5 | 881689 | SHIELD, Oil Splash | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 8M0050807 | RETAINER, Valve Lifter Guide | 845755 | SS |
|
$54.99 | $52.66 | 1 | |
| 7 | 881570 | SCREW, (M8 x 25 MM) | ACT | $3.49 | $3.40 | 7 | |||
| 8 | 8M0186195 | SENSOR, Manifold Air Pressure | 881731 | SS |
|
$317.49 | $298.84 | 1 | |
| 9 | 881733 | SEAL, M.A.P. Sensor | ACT | $20.99 | $20.62 | 1 | |||
| 10 | 881646 | SCREW, (M6 x 20) | ACT | $42.99 | $42.23 | 1 | |||
| 11 | 864996 | TUBE, Oil Fill | NLA |
|
$40.92 | $40.18 | 1 | ||
| 12 | 864997 | CAP, Oil Fill Tube | ACT |
|
$38.49 | $37.73 | 1 | ||
| 13 | NSS | --NOT SOLD SEPARATE, SEAL-Oil Fill Cap |
|
$0.00 | $0.00 | 1 | |||
| 14 | 881645 | BOLT, (M6 x 20), Oil Fill Tube | ACT | $6.39 | $6.25 | 1 | |||
| 15 | 895234001 | SCREW, (M6 x 73) | 895234 | SS |
|
$16.79 | $16.45 | 10 | |
| 16 | 8M0132702 | FUEL RAIL, Fuel Injection | 881691002 | NLA |
|
$0.00 | $0.00 | 1 | |
| 17 | 802631 | VALVE AND CAP KIT, Fuel Pressure Service | ACT | $121.99 | $114.89 | 1 | |||
| 18 | 8M0046753 | REGULATOR KIT, Fuel Pressure | ACT | $219.49 | $206.63 | 1 | |||
| 19 | 8M0221353 | INJECTOR, 3 hole pintle | 881693 | SS |
|
$294.99 | $277.41 | 8 | |
| 19 | 881693001 | INJECTOR, 2 hole pintle | NLA |
|
$0.00 | $0.00 | 8 | ||
| 20 | 881694001 | SEAL KIT | ACT | $86.99 | $83.28 | 1 | |||
| 21 | 881695001 | RETAINER KIT, Fuel Injector | 881695 | SS |
|
$89.49 | $85.85 | 1 | |
| 22 | 881968001 | STUD, Fuel Injection Rail | 881968 | SS |
|
$8.99 | $8.78 | 2 | |
| 23 | 8M0127600 | HARNESS ASSEMBLY, Fuel Injection Wiring | 881697 | SS |
|
$116.49 | $109.56 | 1 | |
| 24 | 8M0077391 | STUD, Throttle Body | 802561 | NLA |
|
$46.99 | $46.18 | 3 | |
| 25 | 8623601 | PLUG, Fuel Rail Outlet | ACT |
|
$27.29 | $26.76 | 1 | ||
| 26 | 881725 | PLATE, Block Off | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 863285 | GASKET | ACT |
|
$17.99 | $17.68 | 1 | ||
| 28 | 898101392 | SCREW, (M8 x 30) | 881586 | SS |
|
$4.59 | $4.49 | 2 |
