| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

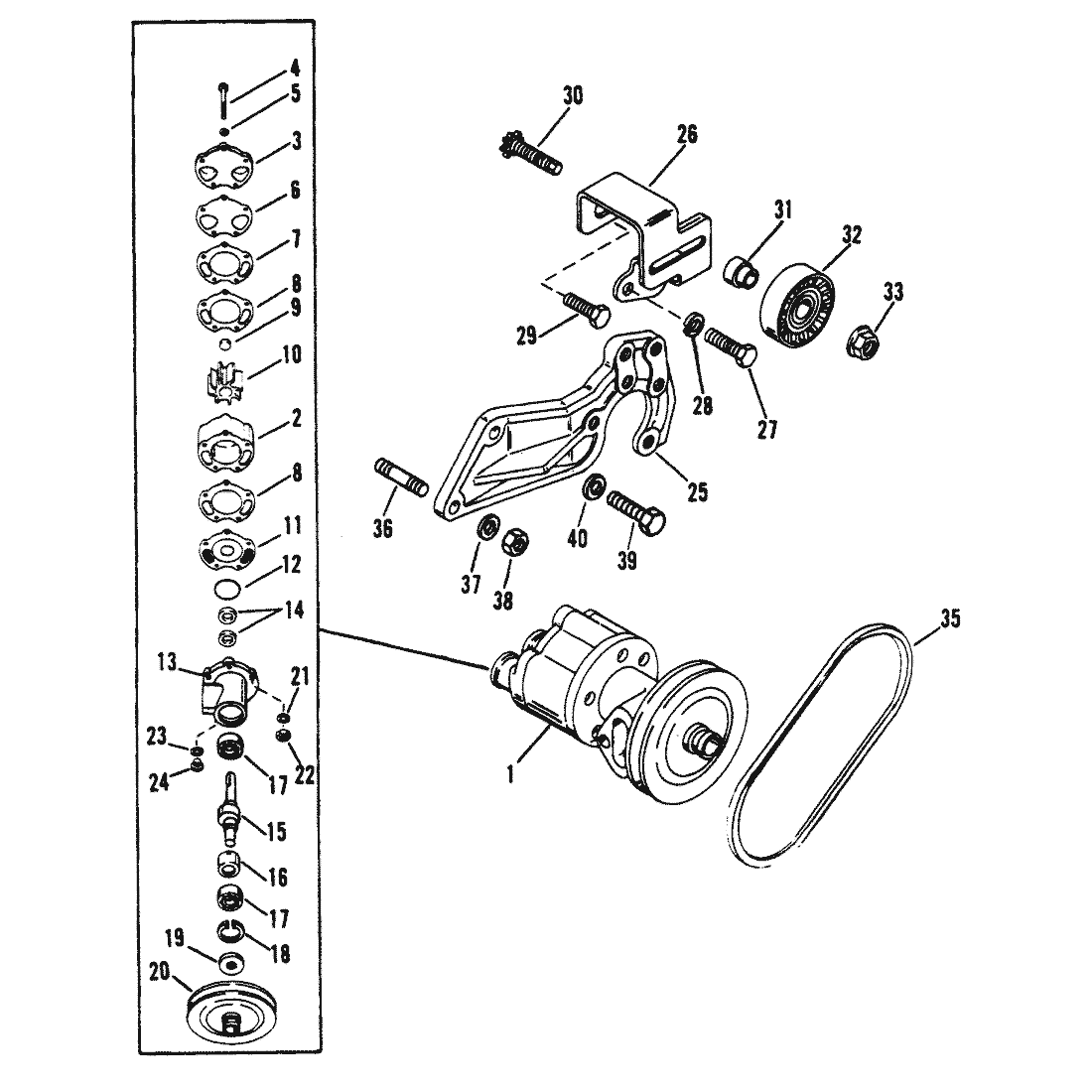

| 1 | 807151A8 | WATER PUMP ASSEMBLY | 72774A69 | SS |
|
$1,059.49 | $1,058.99 | 1 | |
| 2 | 72774A40 | --BODY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 87631A4 | --COVER | ACT | $219.42 | $197.81 | 1 | |||
| 4 | 99347 | --SCREW | ACT | $17.09 | $16.68 | 5 | |||
| 5 | 20084 | --WASHER | ACT | $2.97 | $2.92 | 5 | |||
| 6 | 8052151 | --GASKET | ACT | $9.59 | $9.37 | 1 | |||
| 7 | 94916 | --OUTER WEAR PLATE | ACT | $27.79 | $27.25 | 1 | |||
| 8 | 94914 | --GASKET | ACT | $3.69 | $3.59 | 2 | |||
| 9 | 59504 | --PLUG | ACT | $13.89 | $13.56 | 1 | |||
| 10 | 59362T1 | --IMPELLER | 593621 | SS |
|
$45.99 | $45.09 | 1 | |
| 11 | 8M0204674 | --INNER WEAR PLATE | 94576 | SS |
|
$27.49 | $26.93 | 1 | |
| 12 | 8M0215007 | --QUAD RING | 94288 | SS |
|
$4.59 | $4.49 | 1 | |
| 13 | 818367A1 | --HOUSING ASSEMBLY | ACT |
|
$658.99 | $619.99 | 1 | ||
| 14 | 90562 | ----OIL SEAL | ACT | $18.89 | $18.50 | 2 | |||
| 15 | 818366A1 | ----SHAFT ASSEMBLY | ACT |
|
$273.99 | $258.03 | 1 | ||
| 16 | 818745A1 | ------SLIP RING | ACT | $47.49 | $46.65 | 1 | |||
| 17 | 72961 | ----BALL BEARING | ACT | $16.99 | $16.62 | 2 | |||
| 18 | 23720 | ----RETAINING RING | ACT | $2.99 | $2.92 | 1 | |||
| 19 | 806930 | ----OIL SEAL | ACT | $19.99 | $19.56 | 1 | |||
| 20 | 818365T | --PULLEY | ACT | $195.99 | $184.26 | 1 | |||
| 21 | 39107 | --LOCKWASHER | ACT | $1.50 | $1.47 | 1 | |||
| 22 | 21908 | --NUT | ACT | $3.19 | $3.11 | 1 | |||
| 23 | 8M0204684 | --O-RING | 805726 | SS |
|
$2.49 | $2.43 | 2 | |
| 24 | 8M0058389 | --SCREW (MAGNETIC) | 14834A1 | SS |
|
$11.69 | $11.41 | 1 | |
| 25 | 818368T1 | BRACKET | ACT | $0.00 | $0.00 | 1 | |||
| 26 | 818379T | IDLER BRACKET | ACT | $95.49 | $91.46 | 1 | |||
| 27 | 76926 | SCREW | ACT | $1.10 | $1.08 | 2 | |||
| 28 | 35048 | LOCKWASHER | ACT | $1.20 | $1.18 | 2 | |||
| 29 | 17965 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 8M0113182 | PINION STUD | 8183811 | SS |
|
$22.49 | $22.02 | 1 | |
| 31 | 865193 | BUSHING | 818380 | SS |
|
$7.59 | $7.42 | 1 | |
| 32 | 8M6500024 | PULLEY | 818382 | SS |
|
$44.49 | $43.54 | 1 | |
| 33 | 859135 | NUT | 817618 | SS |
|
$6.09 | $5.95 | 1 | |
| 35 | 69143Q | V-BELT | 69143T | SS |
|
$32.89 | $32.24 | 1 | |
| 36 | 806591 | STUD | ACT | $16.39 | $16.00 | 1 | |||
| 37 | 32993 | LOCKWASHER | ACT | $1.70 | $1.66 | 1 | |||
| 38 | 22024 | NUT | ACT | $3.19 | $3.11 | 1 | |||
| 39 | 47462 | SCREW | ACT | $1.80 | $1.76 | 1 | |||
| 40 | 32993 | LOCKWASHER | ACT | $1.70 | $1.66 | 1 |
