| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

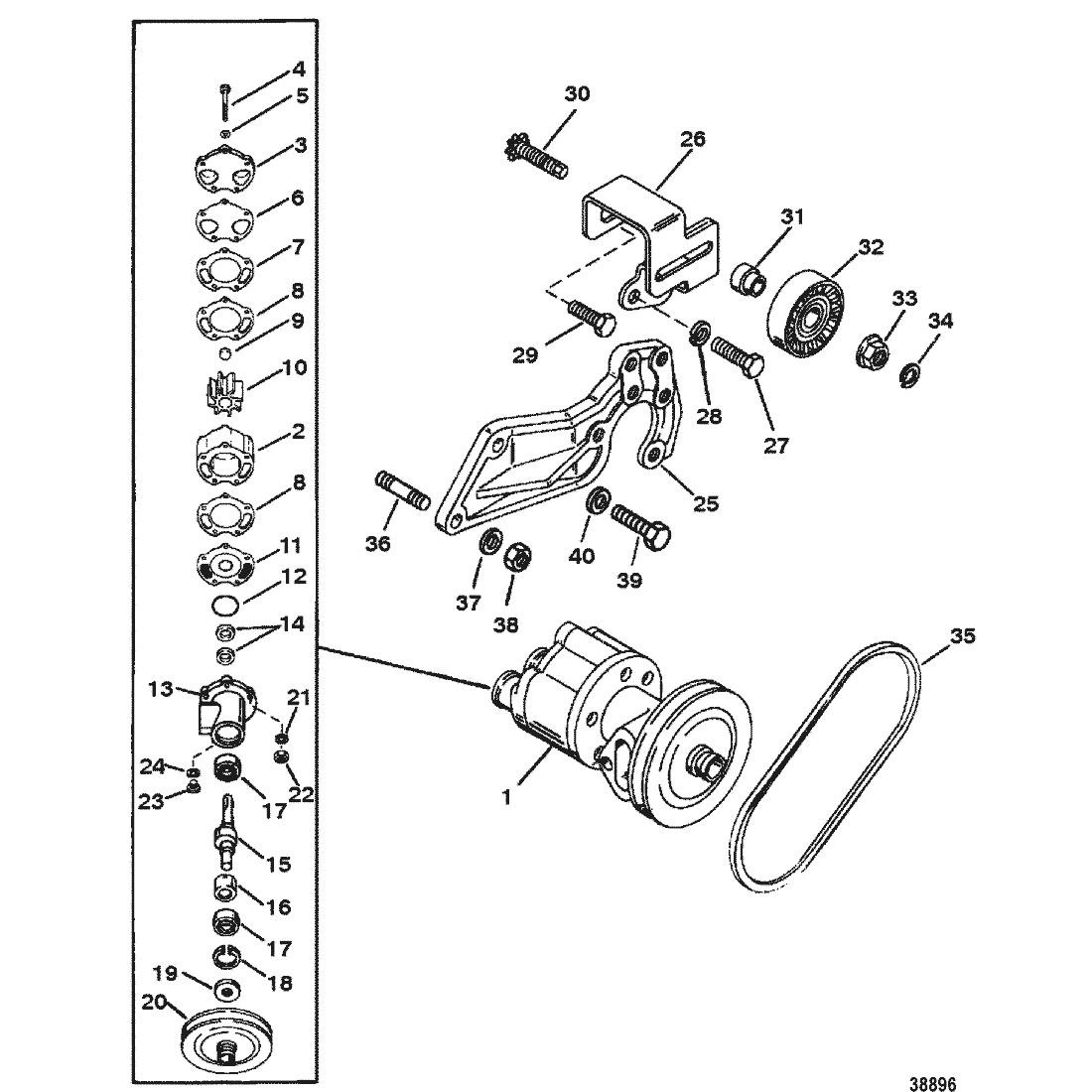

| 1 | 807151A8 | PUMP ASSEMBLY, Sea Water - Complete | 72774A69 | SS |
|
$1,059.49 | $971.01 | 1 | |
| 2 | 72774A40 | --BODY ASSEMBLY, Sea Water - Complete | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 87631A4 | --COVER KIT | ACT | $219.42 | $197.81 | 1 | |||
| 4 | 99347 | --SCREW, (.312-18 x 3.75) | ACT | $17.09 | $16.68 | 5 | |||
| 5 | 20084 | --WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 5 | |||
| 6 | 8052151 | --GASKET | ACT | $9.59 | $9.37 | 1 | |||
| 7 | 94916 | --WEAR PLATE | ACT | $27.79 | $27.25 | 1 | |||
| 8 | 94914 | --GASKET | ACT | $3.69 | $3.59 | 2 | |||
| 9 | 59504 | --PLUG | ACT | $13.89 | $13.56 | 1 | |||
| 10 | 59362T1 | --IMPELLER | 593621 | SS |
|
$45.99 | $45.09 | 1 | |
| 11 | 8M0204674 | --WEAR PLATE | 94576 | SS |
|
$27.49 | $26.93 | 1 | |
| 12 | 8M0215007 | --QUAD RING | 94288 | SS |
|
$4.59 | $4.49 | 1 | |
| 13 | 818367A1 | --HOUSING ASSEMBLY | ACT |
|
$658.99 | $619.99 | 1 | ||
| 14 | 90562 | ----SEAL, (1.254 x .312) | ACT | $18.89 | $18.50 | 2 | |||
| 15 | 818366A1 | ----SHAFT KIT | ACT |
|
$273.99 | $258.03 | 1 | ||
| 16 | 818745A1 | ------RING KIT | ACT | $47.49 | $46.65 | 1 | |||
| 17 | 72961 | ----BEARING, Ball | ACT | $23.99 | $23.49 | 2 | |||
| 18 | 23720 | ----RING, Retaining | ACT | $2.99 | $2.92 | 1 | |||
| 19 | 806930 | ----SEAL | ACT | $19.99 | $19.56 | 1 | |||
| 20 | 818365T | --PULLEY | ACT | $195.99 | $184.26 | 1 | |||
| 21 | 39107 | --LOCKWASHER, (.312-24) | ACT | $1.50 | $1.47 | 1 | |||
| 22 | 21908 | --NUT, (.312-18) Cad Plated | ACT | $3.19 | $3.11 | 1 | |||
| 23 | 79953Q04 | --SCREW KIT, (.375-16 x .250) | 79953A2 | SS |
|
$7.49 | $7.32 | 1 | |
| 24 | 8M0187157 | ----WASHER, Fiber | 19183 | SS |
|
$1.49 | $1.46 | 1 | |
| 25 | 818368T1 | BRACKET | ACT | $0.00 | $0.00 | 1 | |||
| 26 | 818379T | BRACKET | ACT | $95.49 | $91.46 | 1 | |||
| 27 | 76926 | SCREW, (.375-16 x .875) | ACT | $1.10 | $1.08 | 2 | |||
| 28 | 35048 | LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 2 | |||
| 29 | 17965 | SCREW, (.437-14 x .70) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 8M0113182 | PINION STUD, (.437-20) Stainless Steel | 8183812 | SS |
|
$22.49 | $22.02 | 1 | |
| 31 | 865193 | BUSHING | 818380 | SS |
|
$7.59 | $7.42 | 1 | |
| 32 | 8M6500024 | PULLEY | 818382 | SS |
|
$44.49 | $43.54 | 1 | |
| 33 | 859135 | NUT, (.437-20) | 817618 | SS |
|
$6.09 | $5.95 | 1 | |
| 34 | 821115 | RING, Retaining | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 69143Q | V BELT | 69143T | SS |
|
$32.89 | $32.24 | 1 | |
| 36 | 64281 | STUD, (.375-16/.375-24 x 1.880) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 37 | 35048 | --LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 1 | |||
| 38 | 46335 | NUT, (.375-24) | ACT | $2.97 | $2.92 | 1 | |||
| 36 | 806591 | STUD, (7/16-14) (7/16-14) | ACT |
|
$16.39 | $16.00 | 1 | ||
| 37 | 32993 | --LOCKWASHER, (.437) | ACT | $1.70 | $1.66 | 1 | |||
| 38 | 22024 | NUT, (.437-14) | ACT | $3.19 | $3.11 | 1 | |||
| 39 | 47462 | SCREW, (.437-14 x 1.250) | ACT | $1.80 | $1.76 | 1 | |||
| 40 | 32993 | LOCKWASHER, (.437) | ACT | $1.70 | $1.66 | 1 |
