| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

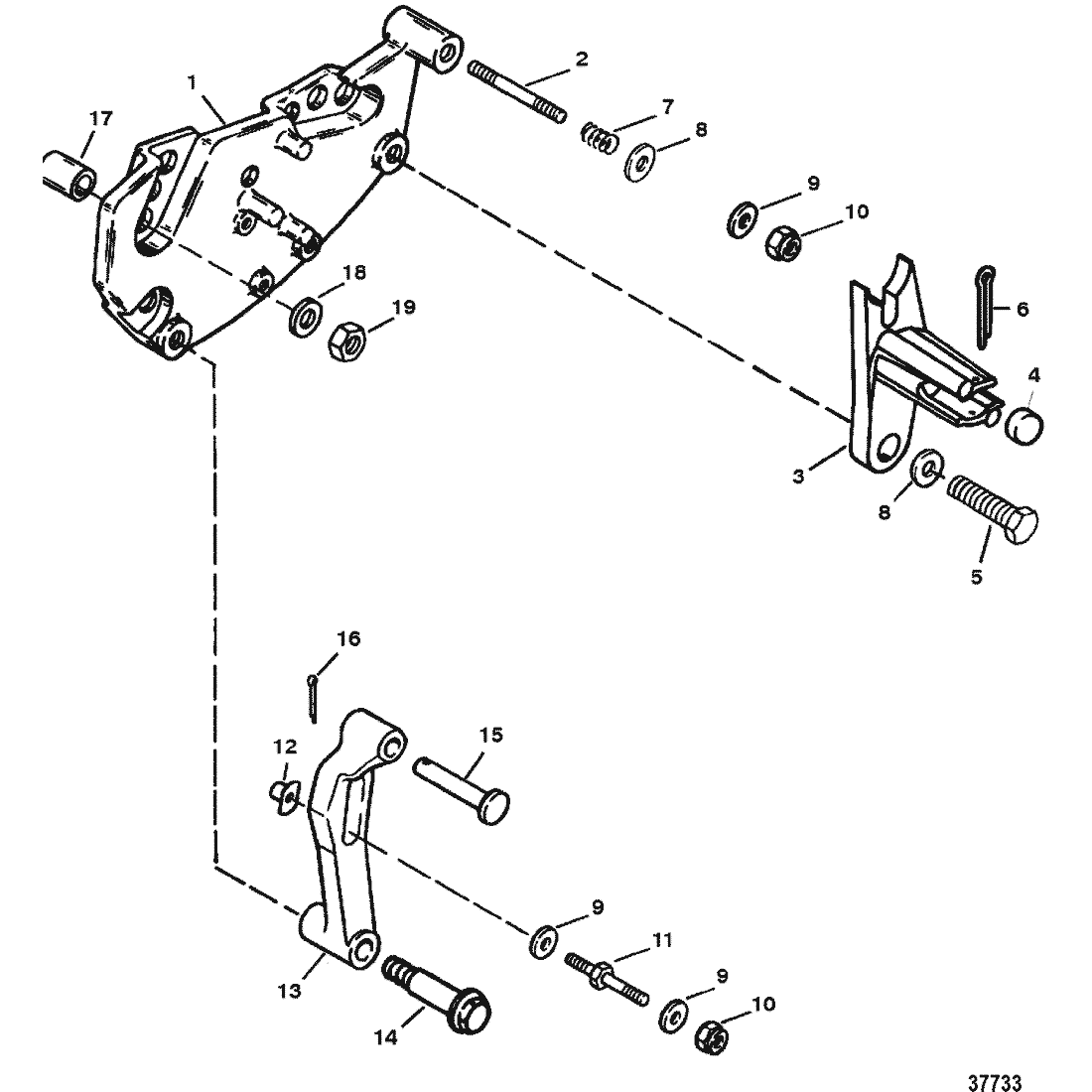

| 1 | 807962A15 | BRACKET ASSEMBLY | 99237A10 | SS |
|
$166.99 | $150.18 | 1 | |
| 2 | 865154A02 | --STUD, (.250-20/.250-28 x 2.120) | 987981 | SS |
|
$11.89 | $11.61 | 1 | |
| 3 | 865434A02 | RETAINER | 123811 | SS |
|
$56.49 | $52.98 | 1 | |
| 4 | 8M0207783 | SPACER | 98828 | SS |
|
$7.29 | $7.12 | 1 | |
| 5 | 53167T | SCREW, (.312-18 x .880) | 53167 | SS |
|
$1.50 | $1.47 | 1 | |
| 6 | 8M0214922 | COTTER PIN | 32857 | SS |
|
$3.79 | $3.69 | 1 | |
| 7 | 8M0207784 | SPRING | 98880 | SS |
|
$8.29 | $8.10 | 1 | |
| 8 | 56720 | WASHER, (.330 x .750 x .060) Stainless Steel | ACT | $1.80 | $1.76 | 2 | |||
| NS | 865154A02 | SPACER (USE WHERE APPLICABLE) | 98820 | NLA |
|
$11.89 | $11.61 | 1 | |
| 9 | 35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 5 | |||
| 10 | 8267119 | NUT, (.250-28) | 13438 | SS |
|
$2.59 | $2.53 | 2 | |
| 11 | 8M0113178 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 96112 | SS |
|
$3.09 | $3.01 | 1 | |
| 12 | 63341 | TEE NUT | ACT | $2.79 | $2.72 | 1 | |||
| 13 | 863911A12 | LEVER | 138981 | SS |
|
$60.99 | $57.21 | 1 | |
| 14 | 8M0207774 | SCREW, (.312-18 x 1.843), Shoulder | 13743 | SS |
|
$10.69 | $10.44 | 1 | |
| 15 | 68402 | PIN, (.250 x 1.13) | ACT | $10.69 | $10.44 | 1 | |||
| 16 | 210711 | COTTER PIN | 21071 | SS |
|
$3.69 | $3.59 | 1 | |
| 17 | 806981 | SPACER | ACT | $7.29 | $7.12 | 3 | |||
| 18 | 35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 3 | |||
| 19 | 64015 | NUT, (.250-20) | ACT | $2.79 | $2.72 | 3 |
