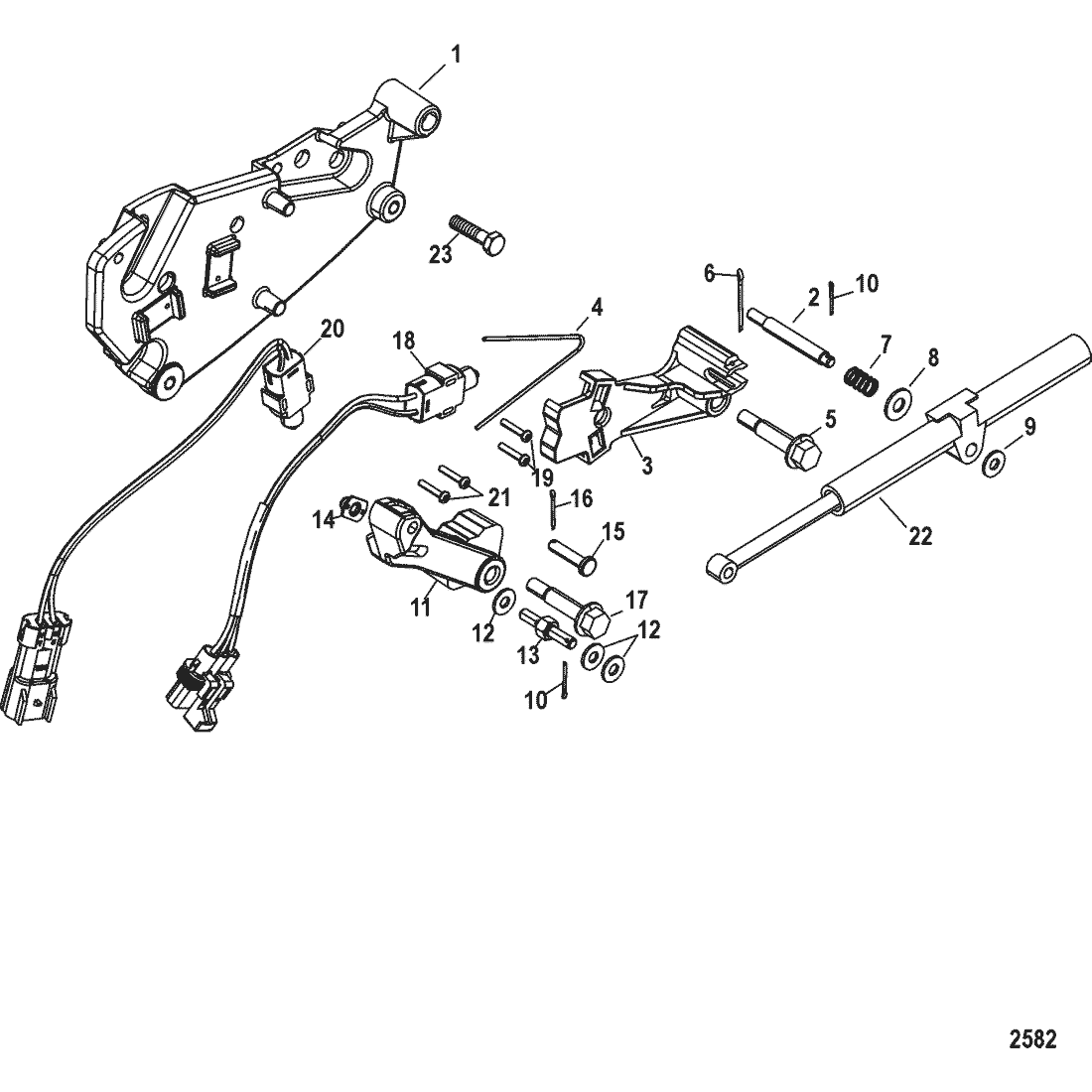

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 807962A14 | SS/ACT |
 |
$147.67 | $139.06 | 1 | |
| 2 | 16-865149A02 | --STUD, With Cotter Pin | 865149A01 | SS/ACT |
|
$10.30 | $10.05 | 1 | |
| 3 | 865433A02 | LEVER ASSEMBLY, Actuator, With Cotter Pin | 865433A01 | SS/ACT |
|
$38.25 | $37.56 | 1 | |
| 4 | 24-864907T | --SPRING | 864907 | SS/ACT |
|
$5.30 | $5.17 | 1 | |
| 5 | 10-865148 | SCREW, (.312-18 x 1.843), Shoulder | ACT | $10.29 | $10.05 | 1 | |||
| 6 | 18-328571 | COTTER PIN | ACT | $3.70 | $3.61 | 1 | |||
| 7 | 24-98880 | SPRING | ACT | $4.83 | $4.72 | 1 | |||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | ACT | $1.70 | $1.66 | 1 | |||
| 9 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.70 | $1.66 | 1 | |||
| 10 | 18-210711 | COTTER PIN | ACT | $3.60 | $3.52 | 2 | |||
| 11 | 13898T06 | LEVER ASSEMBLY, Shift | 13898A05 | SS/ACT |
|
$56.50 | $54.35 | 1 | |
| 12 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT |
|
$1.70 | $1.66 | 3 | ||
| 13 | 16-865393A02 | --STUD, With Cotter Pin | 865393A01 | SS/ACT |
|
$8.10 | $7.90 | 1 | |
| 14 | 11-63341 | TEE NUT | ACT | $2.70 | $2.64 | 1 | |||
| 15 | 17-814001 | PIN, Clevis | ACT | $5.50 | $5.37 | 1 | |||
| 16 | 18-210711 | COTTER PIN | ACT | $3.60 | $3.52 | 1 | |||
| 17 | 10-865148 | SCREW, (.312-18 x 1.843), Shoulder | ACT | $10.29 | $10.05 | 1 | |||
| 18 | 87-808009T10 | SWITCH ASSEMBLY, Shift Interupt | 808009A10 | SS/ACT |
|
$74.92 | $72.06 | 1 | |
| 19 | 10-865147T01 | SCREW, (#6-32 x .750) Stainless Steel | ACT | $2.30 | $2.25 | 2 | |||
| 20 | 87-808009T11 | SWITCH ASSEMBLY, Gear Indicator | 808009A11 | SS/ACT |
|
$66.58 | $64.04 | 1 | |
| 21 | 10-865147T01 | SCREW, (#6-32 x .750) Stainless Steel | ACT | $2.30 | $2.25 | 2 | |||
| 22 | 813995A1 | GUIDE ASSEMBLY, Spring | ACT | $45.00 | $44.19 | 1 | |||
| 23 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | ACT | $1.60 | $1.57 | 3 |
