| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

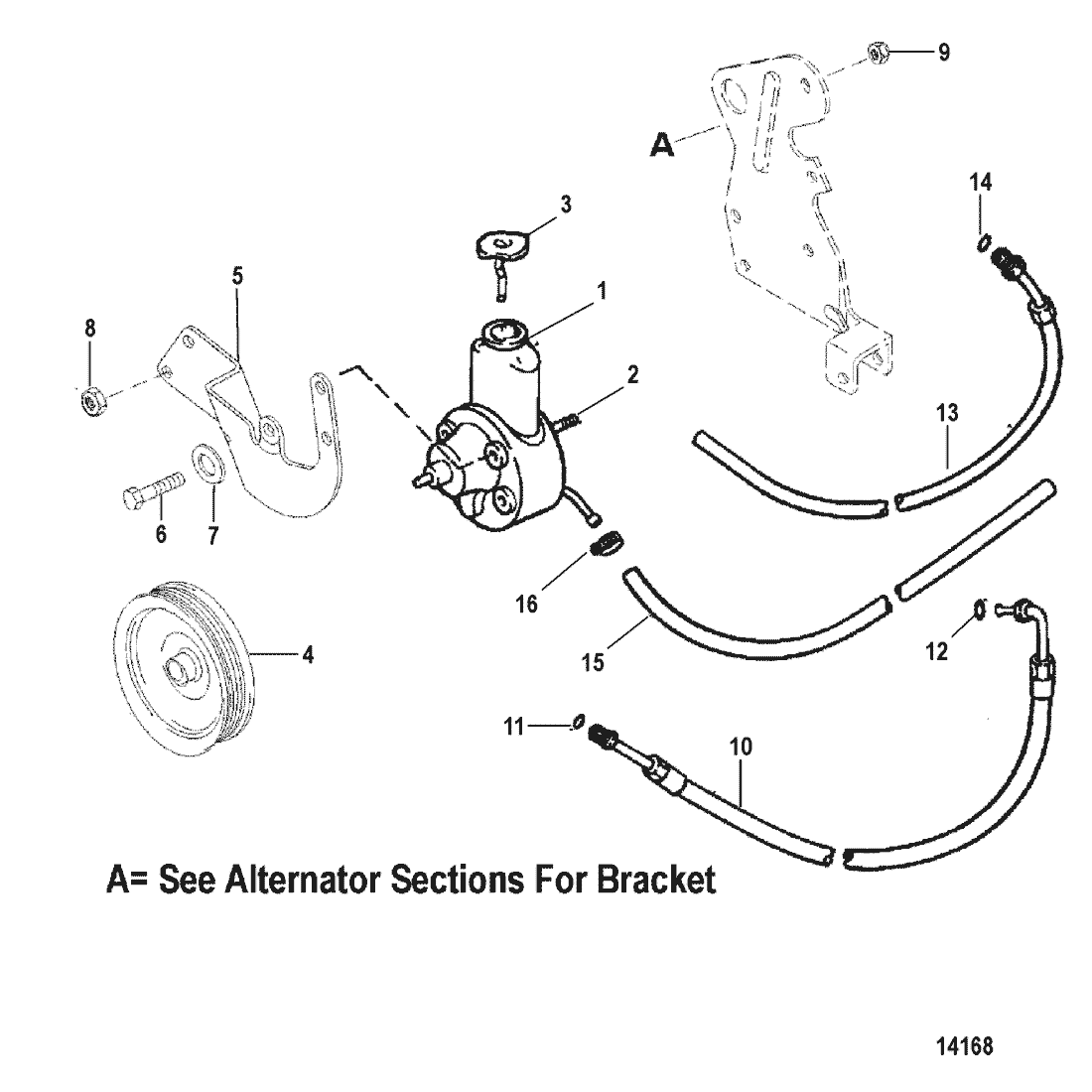

| 1 | 16792A39 | PUMP ASSEMBLY | ACT |
|
$957.49 | $871.68 | 1 | ||
| 2 | 41877 | --STUD, (M10) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | 95805 | --CAP | ACT | $29.49 | $28.89 | 1 | |||
| 4 | 8M0150723 | PULLEY | 861578 | SS |
|
$107.99 | $96.99 | 1 | |
| 5 | 807751T01 | BRACE | 807751T | NLA |
|
$86.99 | $81.85 | 1 | |
| 6 | 40001189 | SCREW, (M10 x 20) | 40001188 | NLA |
|
$5.39 | $5.27 | 3 | |
| 7 | 34714 | WASHER | ACT | $2.39 | $2.33 | 3 | |||
| 8 | 32219 | NUT, (.375-16) | ACT | $2.79 | $2.72 | 3 | |||
| 9 | 90517 | NUT, (M10) | ACT | $2.69 | $2.62 | 1 | |||
| 10 | 80622216 | HOSE | ACT |
|
$188.49 | $169.71 | 1 | ||
| 11 | 89879 | --O-RING, (.301 x .064) | ACT | $1.60 | $1.57 | 1 | |||
| 12 | 806232 | --O-RING, (.239 x .064) | ACT | $1.80 | $1.76 | 1 | |||
| 13 | 80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Return | ACT |
|
$178.99 | $161.37 | 1 | ||
| 14 | 89879 | --O-RING, (.301 x .064) | ACT | $1.60 | $1.57 | 1 | |||
| 15 | 8M0062341 | HOSE, (53.00 Inches Bulk), Pump To Oil Cooler | 5251914 | SS |
|
$54.99 | $51.80 | 1 | |
| 16 | 815504105 | CLAMP, Worm Gear (11-18 mm) | SS |
|
$0.00 | $0.00 | 3 | ||
| NS | 8M0074363 | COVER, Hose Clamp End | 8079921 | NLA |
|
$3.09 | $3.01 | AR |
