| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

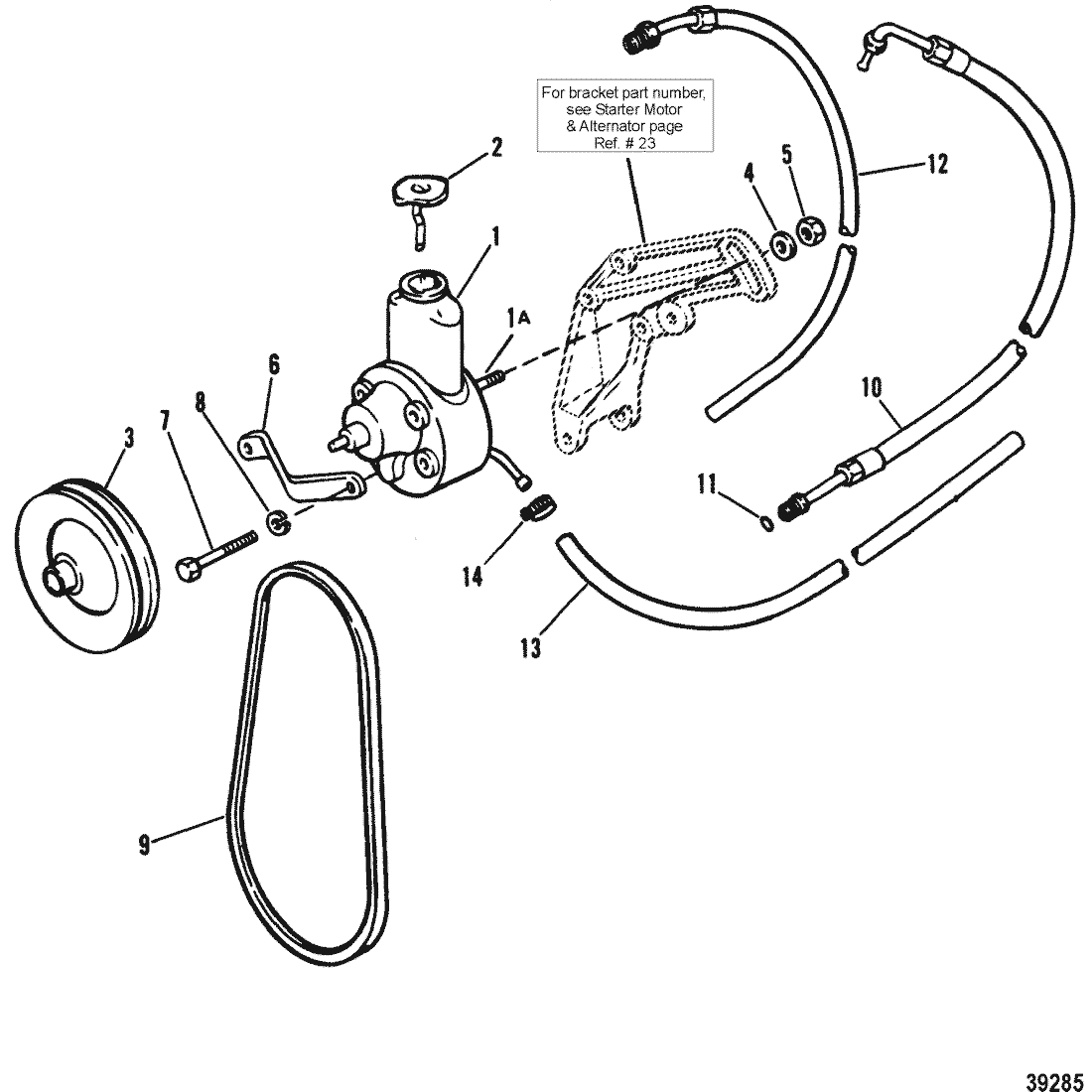

| 1 | 16792A39 | PUMP ASSEMBLY, POWER STEERING | 90496A5 | SS |
|
$957.49 | $871.68 | 1 | |
| 1A | 41877 | --STUD, (M10), POWER STEERING PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 95805 | --CAP, PWER STEERING PUMP | ACT | $29.49 | $28.89 | 1 | |||
| 3 | 73873A1 | --PULLEY, POWER STEERING PUMP | ACT | $221.49 | $199.46 | 1 | |||
| 4 | 34567 | WASHER, PUMP STUD (BRACE SLOT) | ACT | $1.50 | $1.47 | 1 | |||
| 5 | 90517 | NUT, (M10), MOUNTING STUD | ACT | $2.69 | $2.62 | 2 | |||
| 6 | 98644A1 | BRACE, PUMP MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 40001189 | SCREW, (M10 x 20), PUMP MOUNTING BRACE | 40001188 | NLA |
|
$5.39 | $5.27 | 1 | |
| 8 | 400248 | LOCKWASHER, (M10), BRACE SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 9 | 37619Q | V BELT, POWER STEERING PUMP (52") | 37619 | SS |
|
$43.99 | $43.21 | 1 | |
| 10 | 90494 | HOSE, PRESSURE (FITTING ON BOTH ENDS)" | ACT | $196.99 | $177.53 | 1 | |||
| 10 | 986291 | HOSE, (136.00 Inches Bulk), PRESSURE (FITTINGS/BOTH ENDS) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 89879 | --O-RING, (.301 x .064), PRESSURE HOSE END | ACT | $1.60 | $1.57 | 1 | |||
| 12 | 9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END) | ACT | $97.99 | $92.21 | 1 | |||
| 12 | 986241 | HOSE, (133.00 Inches Bulk), RETURN (FITTINGS ON ONE END) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 8M0062341 | HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER | 5251914 | SS |
|
$54.99 | $51.80 | 1 | |
| 14 | 815504206 | CLAMP, HOSE ATTACHING | 35830 | SS |
|
$6.79 | $6.64 | 3 |
