| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

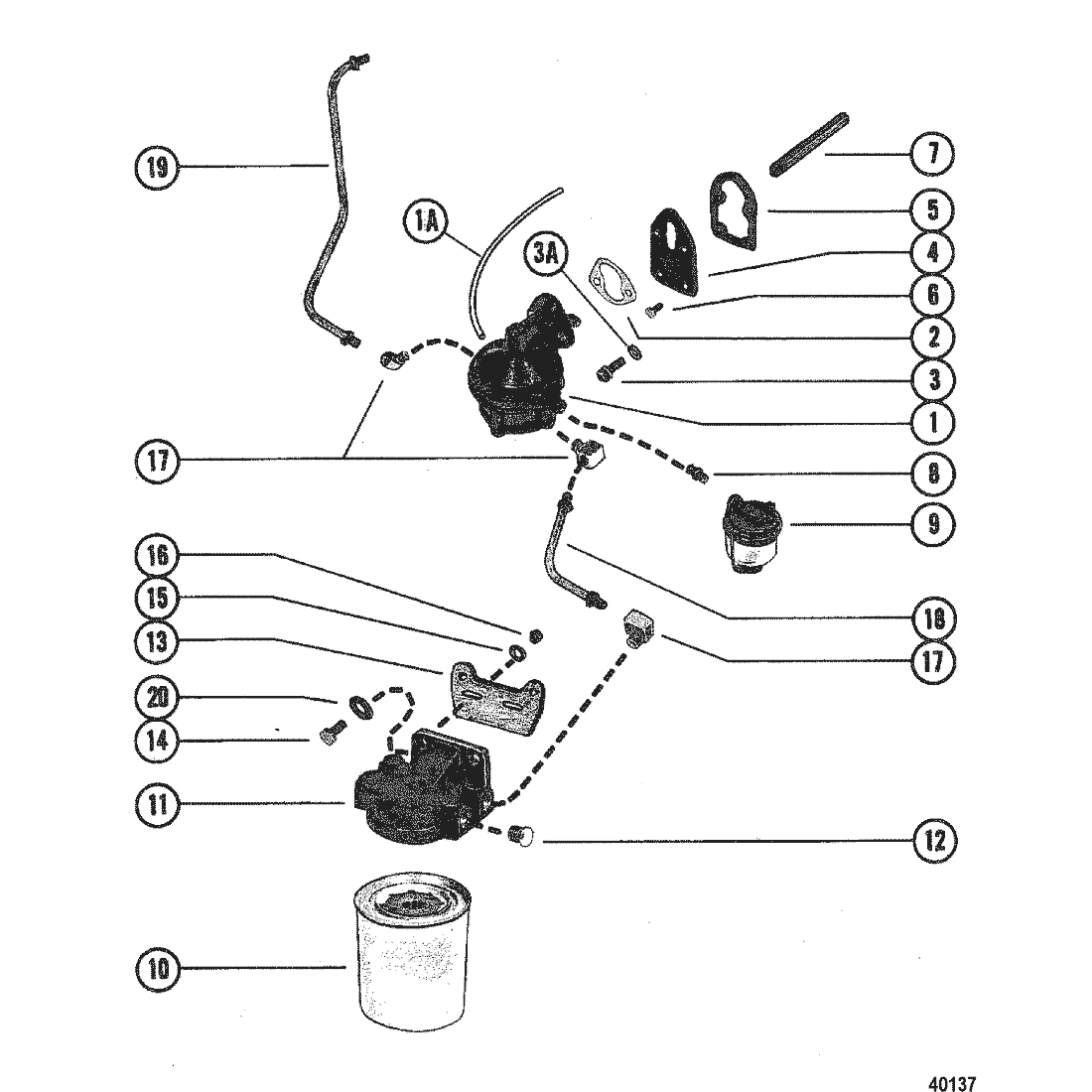

| 1 | 86246T | PUMP, Fuel (Use with Sight Glass) | 86246 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 8M0058164 | PUMP, Fuel (USE WITH SIGHT TUBE) | 97401 | SS |
|
$249.49 | $224.70 | 1 | |
| 2 | 34213 | GASKET, FUEL PUMP TO CYLINDER BLOCK | ACT | $7.09 | $6.93 | 1 | |||
| 3 | 34354 | SCREW, (.375-16 x 1.50), FUEL PUMP TOMOUNTING PLATE | ACT | $2.39 | $2.33 | 2 | |||
| 3A | 35048 | LOCKWASHER, (.375), FUEL PUMP SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 4 | 35373 | MOUNTING PLATE, FUEL PUMP MOUNTING | ACT | $32.89 | $32.24 | 1 | |||
| 5 | 34898 | GASKET, FUEL PUMP MOUNTING PLATE | ACT | $6.89 | $6.73 | 1 | |||
| 6 | 8M0040582 | BOLT, (1/4-20 x 7/8), FUEL PUMP MOUNTING PLATE | 34277 | SS |
|
$18.59 | $18.14 | 2 | |
| 7 | 35377 | ROD, PUSH-FUEL PUMP | ACT | $49.99 | $48.97 | 1 | |||
| 8 | 32876 | NIPPLE, SIGHT GLASS TO FUEL PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 39072A1 | SIGHT GLASS | 47816 | SS |
|
$0.00 | $0.00 | 1 | |
| 10 | 802893Q01 | FILTER ASSEMBLY, Fuel | 60494A5 | SS |
|
$19.79 | $19.31 | 1 | |
| 11 | 89876A3 | BASE, FUEL FILTER | 89876 | SS |
|
$67.49 | $63.41 | 1 | |
| 12 | F2025 | SCREW, (10 x .625), PIPE-FUEL FILTER (SLOTTED) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | 77453 | BRACKET, MPUNTING-FUEL FILTER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 26066 | SCREW, (.312-24 x 1.75), FUEL FILTER TO MOUNTING BRACKET | NLA |
|
$1.05 | $1.03 | 2 | ||
| 15 | 20084 | WASHER, (.328 x .562 x .062), FUEL FILTER SCREW | ACT | $2.97 | $2.92 | 2 | |||
| 16 | 82670911 | NUT, (.312-24) Stainless Steel, FUEL FILTER SCREW | 35814 | SS |
|
$4.99 | $4.88 | 2 | |
| 17 | 33821 | CONNECTOR, FUEL LINE TO FUEL PUMP AND FUEL FILTER | ACT | $9.69 | $9.46 | 3 | |||
| 18 | 71325A1 | LINE, Fuel, FILTER TO PUMP | 71325 | SS |
|
$22.33 | $21.90 | 1 | |
| 19 | 71326A1 | LINE, Fuel, FUEL PUMP TO CARBURETOR | 71326 | SS |
|
$0.00 | $0.00 | 1 | |
| 19 | 96081A1 | LINE, Fuel, FILTER TO PUMP TO CARBURETOR | 96081 | SS |
|
$72.49 | $67.96 | 1 | |
| 20 | 8M0204690 | WASHER, FUEL FILTER BRACKET SCREW | 53705 | SS |
|
$1.80 | $1.76 | 2 |
