Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

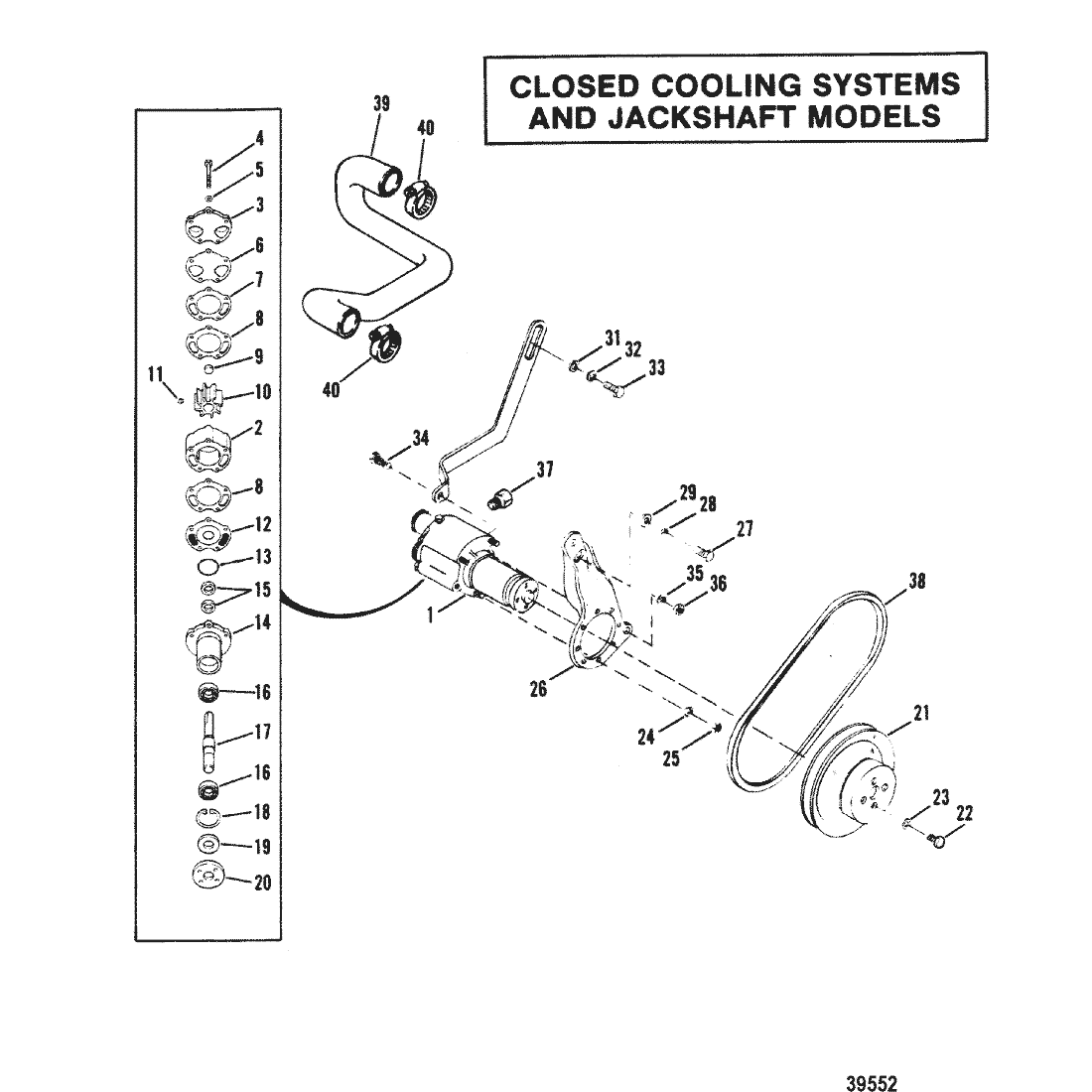

1 72774A32 PUMP ASSEMBLY, Sea Water - Complete ACT $765.49 $696.76 1
2 72774A40 --BODY ASSEMBLY, Sea Water - Complete NLA $0.00 $0.00 1
3 87631A4 --COVER, WATER PUMP 87631A1 SS $219.42 $197.81 1
4 73275 --SCREW, (.312-18 x 2.88), WATER PUMP ACT $1.90 $1.86 2
4 52743 --SCREW, (.312-18 x 3.750), WATER PUMP NLA $3.75 $3.67 3
5 20084 --WASHER, (.328 x .562 x .062), COVER SCREW ACT $2.97 $2.92 5
6 8052151 --GASKET, COVER TO OUTER WEAR PLATE 94915 SS $9.59 $9.37 1
7 94916 --WEAR PLATE, OUTER ACT $27.79 $27.25 1
8 94914 --GASKET, BODY TO WEAR PLATE ACT $3.69 $3.59 2
9 59504 --PLUG, IMPELLER ACT $13.89 $13.56 1
10 59362T1 --IMPELLER 59362 SS $45.99 $45.09 1
11 8M0032837 --KEY, IMPELLER DRIVE 56662 SS $5.69 $5.56 1
12 8M0204674 --WEAR PLATE, INNER 94576 SS $27.49 $26.93 1
13 8M0215007 --QUAD RING, PUMP HOUSING 94288 SS $4.59 $4.49 1
14 94913A1 --HOUSING ASSEMBLY, Water Pump ACT $391.49 $362.30 1
15 90562 ----SEAL, (1.254 x .312), WATER PUMP SHAFT ACT $18.89 $18.50 2
16 72961 ----BEARING, Ball, WATER PUMP SHAFT ACT $23.99 $23.49 2
17 59501A1 ----SHAFT, WATER PUMP ACT $208.99 $188.19 1
18 23720 ----RING, Retaining, BALL BEARING ACT $2.99 $2.92 1
19 72785 ----SEAL, WATER PUMP SHAFT ACT $22.19 $21.77 1
20 47530 --HUB, WATER PUMP PULLEY ACT $65.49 $61.63 1
21 73798A1 PULLEY, WATER PUMP NLA $0.00 $0.00 1
22 47277 SCREW, (.312-24 x .750), PULLEY ACT $1.20 $1.18 4
23 39107 LOCKWASHER, (.312-24), PULLEY SCREW ACT $1.50 $1.47 4
24 39107 LOCKWASHER, (.312-24), WATER PUMP SCREW ACT $1.50 $1.47 3
25 21908 NUT, (.312-18) Cad Plated, WATER PUMP SCREW ACT $3.19 $3.11 3
26 89535T BRACKET, WATER PUMP NLA $0.00 $0.00 1
27 34353 SCREW, (.375-16 x 1.00), WATER PUMP BRACKET ACT $2.59 $2.53 2
28 35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW ACT $1.20 $1.18 2
29 34714 WASHER, WATER PUMP BRACKET SCREW ACT $2.39 $2.33 1
30 89609 BRACE, WATER PUMP ADJUSTING NLA $0.00 $0.00 1
31 26487 SCREW, (.375-16 x 1.12), ADJUSTING BRACE NLA $0.00 $0.00 1
32 35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREW ACT $1.20 $1.18 1
33 34714 WASHER, ADJUSTING BRACE SCREW ACT $2.39 $2.33 1
34 35789 SCREW, ADJUSTING BRACE (1") NLA $0.00 $0.00 1
35 35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREW ACT $1.20 $1.18 1
36 46335 NUT, ADJUSTING BRACE SCREW 24883 SS $2.97 $2.92 1
37 328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY) 32802 SS $7.59 $7.42 1
38 74271Q BELT, WATER PUMP (35") 74271 SS $38.49 $37.62 1
39 88795 HOSE, SEA WATER PUMP TO OIL COOLER ACT $59.49 $56.02 1
40 815504220 CLAMP, HOSE ATTACHING 32780 SS $7.59 $7.42 2
