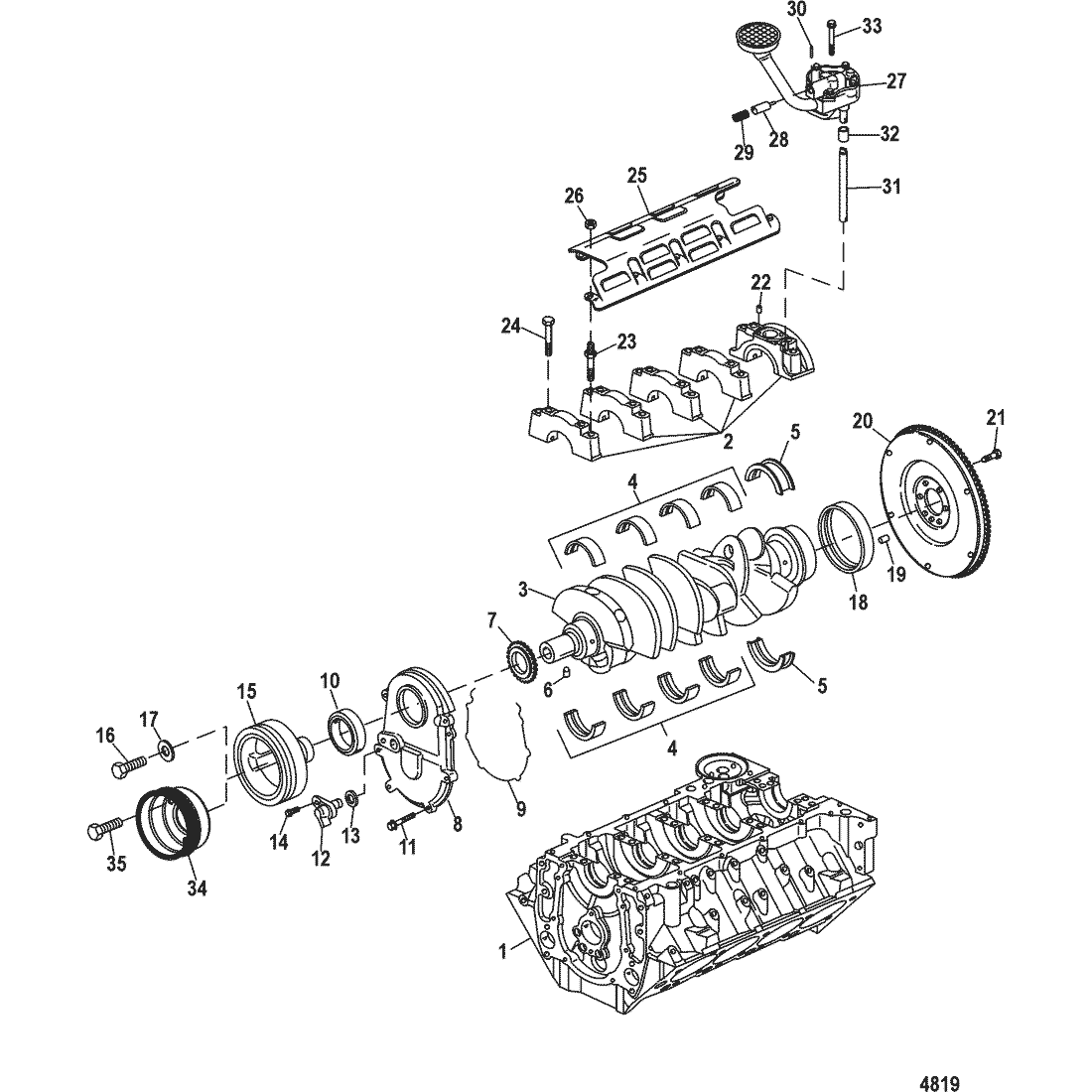

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| NS | 865752A01 | LONGBLOCK ASSEMBLY, Base | SS |
 |
$0.00 | $0.00 | 1 | ||
| NS | 865752A01 | LONGBLOCK ASSEMBLY, Base | SS |
|
$0.00 | $0.00 | 1 | ||
| NS | 865754A01 | LONGBLOCK ASSEMBLY, H.O. | SS |
|
$0.00 | $0.00 | 1 | ||
| NS | 865754A01 | LONGBLOCK ASSEMBLY, H.O. | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | NSS | NOT SOLD SEPARATE, BLOCK-Engine |
|
$0.00 | $0.00 | 1 | |||
| 2 | NSS | --NOT SOLD SEPARATE, CAP-Crankshaft Bearing |
|
$0.00 | $0.00 | 5 | |||
| 3 | 429-8M0084521 | CRANKSHAFT | 881654 | SS/ACT |
|
$2,798.29 | $2,565.25 | 1 | |
| 3 | 429-8M0084521 | CRANKSHAFT | 881654 | SS/ACT |
|
$2,798.29 | $2,565.25 | 1 | |
| 4 | 23-884702 | BEARING KIT, Crankshaft | 881606 | SS/ACT |
|
$165.25 | $155.62 | 4 | |
| 5 | 23-881607001 | BEARING KIT, Crankshaft Main Thrust | SS |
|
$0.00 | $0.00 | 1 | ||
| 6 | 17-881605 | PIN, Balancer Locating | ACT |
|
$17.90 | $17.46 | 1 | ||
| 7 | 43-881655 | SPROCKET, Crankshaft | ACT |
|
$174.25 | $164.10 | 1 | ||
| 8 | 892616001 | COVER, Front | 892616 | SS/ACT |
|
$224.83 | $211.73 | 1 | |
| 9 | 27-881604 | --GASKET, Front Cover | ACT |
|
$29.75 | $29.22 | 1 | ||
| 10 | 26-881613001 | --SEAL, Crankshaft Front Oil | 881613 | SS/ACT |
|
$41.58 | $40.84 | 1 | |
| 11 | 10-8M0069806 | SCREW, (M6 x 30) | 881577 | SS/ACT |
|
$17.50 | $17.07 | 6 | |
| 12 | 892615002 | SENSOR, Camshaft Position | 892615 | SS/ACT |
|
$197.17 | $185.68 | 1 | |
| 13 | NSS | --NOT SOLD SEPARATE, SEAL-Camshaft Position Sensor |
|
$0.00 | $0.00 | 1 | |||
| 14 | 10-883923 | SCREW, (M6 x 20) | 881594 | SS/ACT |
|
$23.75 | $23.33 | 1 | |
| 15 | 891769 | BALANCER, Crankshaft | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 10-881587 | SCREW, (M16 x 1.5) | ACT |
|
$28.50 | $27.99 | 1 | ||
| 17 | 12-881614 | WASHER | ACT |
|
$31.58 | $31.02 | 1 | ||
| 18 | 26-881608001 | SEAL, Crankshaft Rear Oil | 881608 | SS/ACT |
|
$118.33 | $111.44 | 1 | |
| 19 | 17-881609 | PIN, Flywheel Locating | ACT |
|
$18.10 | $17.65 | 2 | ||
| 20 | 222-8M0083318 | FLYWHEEL | 881641 | SS/ACT |
|
$478.50 | $457.38 | 1 | |
| 21 | 10-881578 | BOLT | ACT |
|
$27.83 | $27.33 | 6 | ||
| 22 | 17-843378 | PIN, Dowel (1/4 In. Diameter), Oil Pump Locating | 35312 | SS/ACT |
|
$15.40 | $15.02 | 1 | |
| 23 | 16-881615 | STUD, Crankshaft Bearing Cap | ACT |
|
$42.67 | $41.90 | 10 | ||
| 24 | 10-881580 | SCREW, (M12 x 89) | ACT |
|
$38.25 | $37.56 | 10 | ||
| 25 | 883236 | DEFLECTOR, Oil | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 11-881579001 | NUT | 881579 | SS/ACT |
|
$12.60 | $12.29 | 9 | |
| 27 | 8M0069808 | PUMP, With Screen, Oil | 881652 | SS/ACT |
|
$569.93 | $536.19 | 1 | |
| 28 | 17-881611 | --PIN, Oil Pump | ACT |
|
$1.40 | $1.37 | 1 | ||
| 29 | 24-881610 | --SPRING, Oil Pump | ACT |
|
$18.30 | $17.85 | 1 | ||
| 30 | 22-881643 | --VALVE, Pressure Relief | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 8M0046892 | SHAFT AND RETAINER, Oil Pump Drive | 14761 | SS/ACT |
|
$46.58 | $45.75 | 1 | |
| 32 | 23-36183 | RETAINER, Oil Pump Drive | ACT |
|
$5.30 | $5.17 | 1 | ||
| 33 | 10-881585 | SCREW, (M10 x 60) | ACT |
|
$16.67 | $16.37 | 1 | ||
| 34 | 862349 | PULLEY, Crankshaft | SS |
|
$0.00 | $0.00 | 1 | ||
| 35 | 10-4009025 | SCREW, (M10 x 25) Stainless Steel | ACT |
|
$5.10 | $4.98 | 3 |
