| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

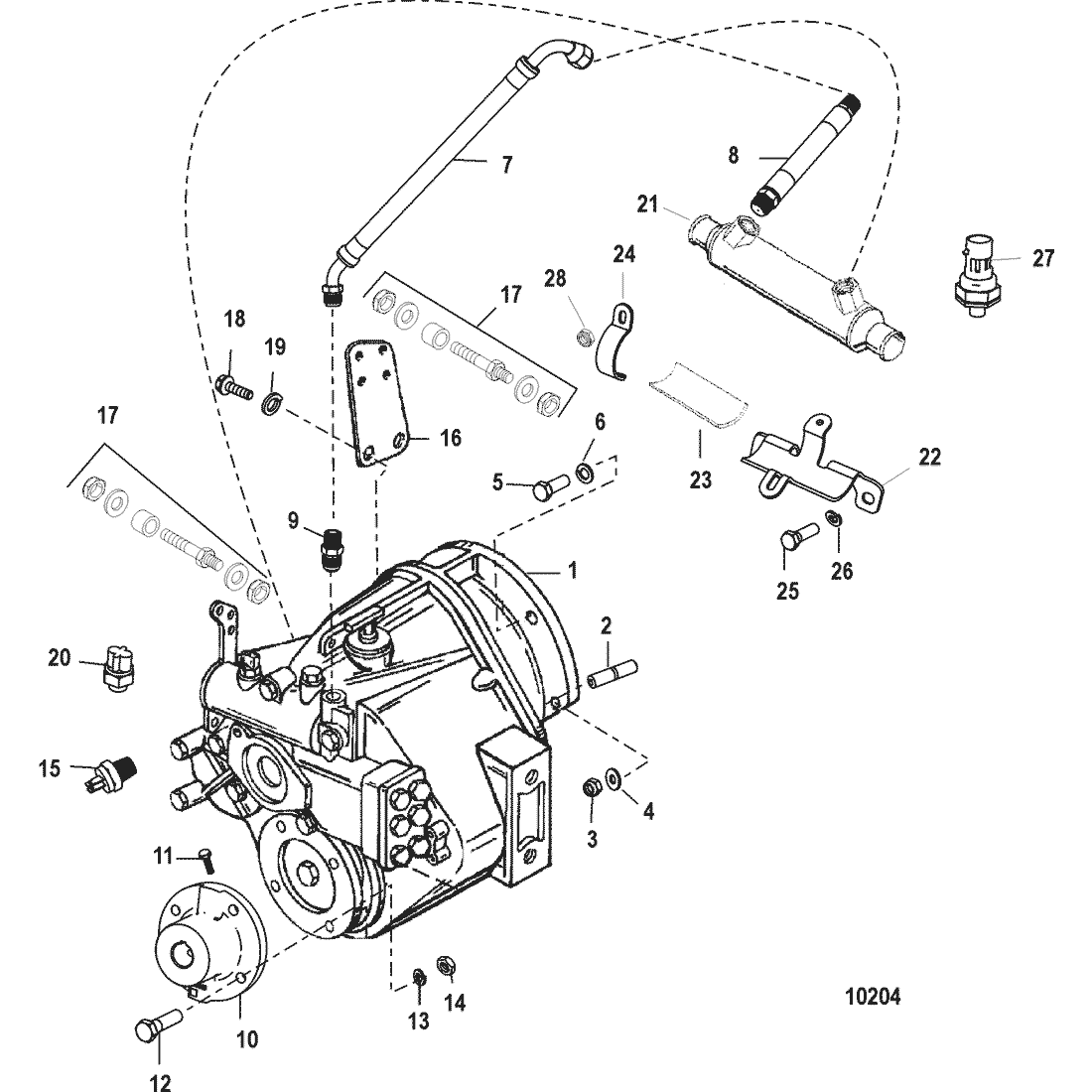

| 1 | 805495R57 | TRANSMISSION | 805495A6 | NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 805495R58 | TRANSMISSION | 805495A4 | NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 805495R59 | TRANSMISSION | 805495A5 | NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 805495R60 | TRANSMISSION | 805495A7 | NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 807481A5 | TRANSMISSION | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 807481R56 | TRANSMISSION | 807481A6 | NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 807481R57 | TRANSMISSION | 807481A7 | NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 805259 | STUD | ACT | $11.29 | $11.02 | 2 | |||
| 3 | 8M0204653 | NUT, (.437-20) Stainless Steel | 34933 | SS |
|
$5.29 | $5.17 | 2 | |
| 4 | 22248 | WASHER, (.453 x .875 x .060) | ACT | $1.50 | $1.47 | 2 | |||
| 5 | 47462 | SCREW, (.437-14 x 1.250) | ACT | $1.80 | $1.76 | 4 | |||
| 6 | 32993 | LOCKWASHER, (.437) | ACT | $1.70 | $1.66 | 4 | |||
| 7 | 807686 | HOSE, Oil | ACT | $186.49 | $167.98 | 1 | |||
| 8 | 8054781 | HOSE, (19.50), Oil | ACT | $63.49 | $59.57 | 1 | |||
| 9 | 807272 | FITTING, (.50) Inch Flare To (.375) Inch NPT | ACT | $16.69 | $16.37 | 1 | |||
| 10 | 79476A1 | FLANGE ASSEMBLY, (5.00 x 1.00) | NLA |
|
$0.00 | $0.00 | OPT | ||
| 10 | 79476A3 | FLANGE ASSEMBLY, (5.00 x 1.25) | NLA |
|
$0.00 | $0.00 | OPT | ||
| 10 | 79476A4 | FLANGE ASSEMBLY, (5.00 x 1.375) | ACT | $211.99 | $190.97 | OPT | |||
| 10 | 79476A5 | FLANGE ASSEMBLY, (5.00 x 1.50) | ACT | $257.99 | $232.44 | OPT | |||
| 10 | 79476A6 | FLANGE ASSEMBLY, (5.00 x 1.75) | ACT |
|
$209.99 | $189.02 | OPT | ||
| 11 | 60171 | --SCREW, (.375-16 x 1.250) | ACT | $11.59 | $11.32 | 2 | |||
| 11 | 60169 | --SCREW, (.375-16 x .750) | ACT | $8.29 | $8.10 | 2 | |||
| 12 | 68101 | --SCREW, (.375-16 x 1.375) | ACT |
|
$2.59 | $2.53 | 4 | ||
| 12 | 805159 | --SCREW, (.437-20 x 1.500) | ACT |
|
$4.99 | $4.88 | 4 | ||
| 13 | 35048 | --LOCKWASHER, (.375) | ACT |
|
$1.20 | $1.18 | 4 | ||
| 13 | 32993 | --LOCKWASHER, (.437) | ACT |
|
$1.70 | $1.66 | 4 | ||
| 14 | 32219 | --NUT, (.375-16) | ACT |
|
$2.79 | $2.72 | 4 | ||
| 14 | 22024 | --NUT, (.437-14) | ACT |
|
$3.19 | $3.11 | 4 | ||
| 15 | 88031 | SWITCH ASSEMBLY, Oil Temperature | ACT | $117.49 | $105.56 | 1 | |||
| 16 | 806238 | BRACKET, Shift Linkage | ACT |
|
$68.49 | $64.28 | 1 | ||
| 17 | 97477A3 | --STUD KIT | ACT | $33.19 | $32.57 | 2 | |||
| 18 | 40001124 | SCREW, (M8 x 14) | ACT | $4.49 | $4.39 | 2 | |||
| 19 | 400247 | LOCKWASHER, (M8) | ACT | $1.80 | $1.76 | 2 | |||
| 20 | 47613 | SWITCH, Neutral Safety | ACT | $359.92 | $338.94 | 1 | |||
| 21 | 863832T01 | COOLER, Oil | ACT | $649.49 | $591.24 | 1 | |||
| 22 | 863850 | BRACKET, Transmission Oil Cooler | ACT |
|
$49.99 | $49.02 | 1 | ||
| 23 | 772233 | --PAD | ACT | $5.99 | $5.86 | 1 | |||
| 24 | 807445T | CLAMP | ACT | $21.89 | $21.44 | 1 | |||
| 25 | 37612 | SCREW, (.375-16 x 1.250) | ACT | $2.49 | $2.43 | 1 | |||
| 26 | 35048 | LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 1 | |||
| 27 | 8M0157742 | SENSOR, Pressure | 881879010 | SS |
|
$209.99 | $189.02 | 1 | |
| 28 | 8267088 | NUT, (.250-20) | ACT | $1.70 | $1.66 | 1 |
