Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

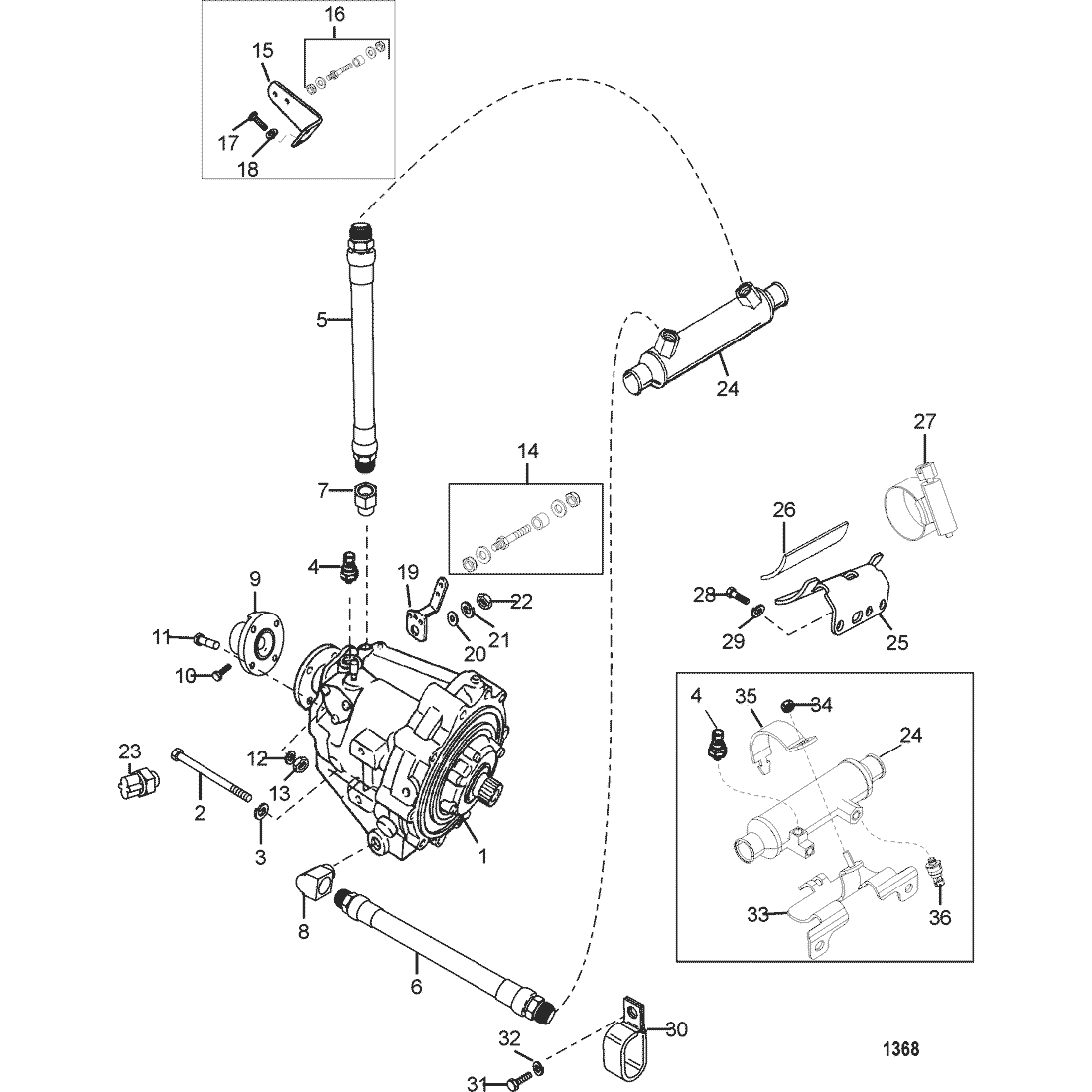

1 47805A7 TRANSMISSION ASSEMBLY ACT $5,935.49 $5,316.07 1
1 47810A19 TRANSMISSION NLA $0.00 $0.00 1
1 60961A6 TRANSMISSION NLA $0.00 $0.00 1
1 60961A8 TRANSMISSION NLA $0.00 $0.00 1
2 60179 SCREW, (.437-14 x 3.500) ACT $4.49 $4.39 6
3 32993 LOCKWASHER, (.437) ACT $1.70 $1.66 6
4 88031 SWITCH ASSEMBLY, Temperature ACT $117.49 $105.56 1
5 8054781 HOSE, (19.50), Oil ACT $63.49 $59.57 1
5 8054782 HOSE, (23.00 Inches), Oil ACT $75.99 $71.34 1
5 475169 HOSE ASSEMBLY, (37.00 Inches), Oil ACT $143.99 $129.45 1
6 475166 HOSE ASSEMBLY, (30.00 Inches), Oil ACT $137.99 $124.11 1
6 8054781 HOSE, (19.50), Oil ACT $63.49 $59.57 1
6 4751613 HOSE, (49.00 Inches), Oil ACT $216.49 $195.18 1
7 88517 FITTING, Reducing, Straight ACT $19.29 $18.82 1
7 63835 ELBOW, 45 Degree ACT $23.59 $23.16 1
8 47629 ELBOW, 90 Degree ACT $18.99 $18.58 1
9 87917A1 FLANGE ASSEMBLY, (4.00 x 1.00) NLA $0.00 $0.00 OPT
9 79476A1 FLANGE ASSEMBLY, (5.00 x 1.00) NLA $0.00 $0.00 OPT
9 79476A2 FLANGE ASSEMBLY, (5.00 x 1.125) NLA $0.00 $0.00 OPT
9 79476A3 FLANGE ASSEMBLY, (5.00 x 1.25) NLA $0.00 $0.00 OPT
9 79476A4 FLANGE ASSEMBLY, (5.00 x 1.375) ACT $211.99 $190.97 OPT
9 79476A5 FLANGE ASSEMBLY, (5.00 x 1.50) ACT $257.99 $232.44 OPT
9 79476A6 FLANGE ASSEMBLY, (5.00 x 1.75) ACT $209.99 $189.02 OPT
9 79476A7 FLANGE ASSEMBLY, (5.00 x 2.00) NLA $0.00 $0.00 OPT
10 60171 --SCREW, (.375-16 x 1.250) ACT $11.59 $11.32 2
10 60169 --SCREW, (.375-16 x .750) ACT $8.29 $8.10 2
11 68101 --SCREW, (.375-16 x 1.375) ACT $2.59 $2.53 4
11 805159 --SCREW, (.437-20 x 1.500) ACT $4.99 $4.88 4
12 35048 --LOCKWASHER, (.375) ACT $1.20 $1.18 4
12 32993 --LOCKWASHER, (.437) ACT $1.70 $1.66 4
13 32219 --NUT, (.375-16) ACT $2.79 $2.72 4
13 22024 --NUT, (.437-14) ACT $3.19 $3.11 4
14 97477A3 STUD KIT ACT $33.19 $32.57 1
15 18351A1 BRACKET ASSEMBLY ACT $59.99 $56.43 1
16 97477A3 --STUD KIT ACT $33.19 $32.57 1
17 54615 --SCREW, (.250-20 x .625) NLA $0.00 $0.00 2
18 26992 LOCKWASHER, (.250) Stainless Steel ACT $1.20 $1.18 2
19 43325 LEVER ACT $39.99 $39.26 1
20 20722 WASHER, (.328 x .625 x .060) NLA $0.00 $0.00 1
21 8M0204647 LOCKWASHER, (.312) 26993 SS $1.80 $1.76 1
22 22053 NUT, (.312-24) ACT $0.20 $0.20 1
23 47613 SWITCH, Neutral Safety ACT $359.92 $338.94 1
24 863832T01 COOLER, Transmission Oil 863832T SS $649.49 $591.24 1
24 863842T02 COOLER, Transmission Oil 863842T1 SS $770.99 $701.96 1
24 863832T01 COOLER, Transmission Oil 863832T SS $649.49 $591.24 1
25 805546A2 BRACKET, Transmission Oil Cooler ACT $91.99 $86.41 1
26 772233 --PAD ACT $5.99 $5.86 1
27 815504232 CLAMP, Worm Gear (2.50 Diameter) ACT $8.89 $8.68 1
28 37612 SCREW, (.375-16 x 1.250) ACT $2.49 $2.43 1
29 35048 LOCKWASHER, (.375) ACT $1.20 $1.18 1
30 97521 CLAMP, Double Hose ACT $5.39 $5.27 1
31 92913 SCREW, (.437-14 x .750) ACT $15.49 $15.12 1
32 32993 LOCKWASHER, (.437) ACT $1.70 $1.66 1
33 863850 BRACKET, Cooler ACT $49.99 $49.02 1
34 8267088 NUT, (.250-20) ACT $1.70 $1.66 1
35 807445T CLAMP, Cooler ACT $21.89 $21.44 1
36 8M0157742 SENSOR, Pressure 8818793 SS $209.99 $189.02 1
