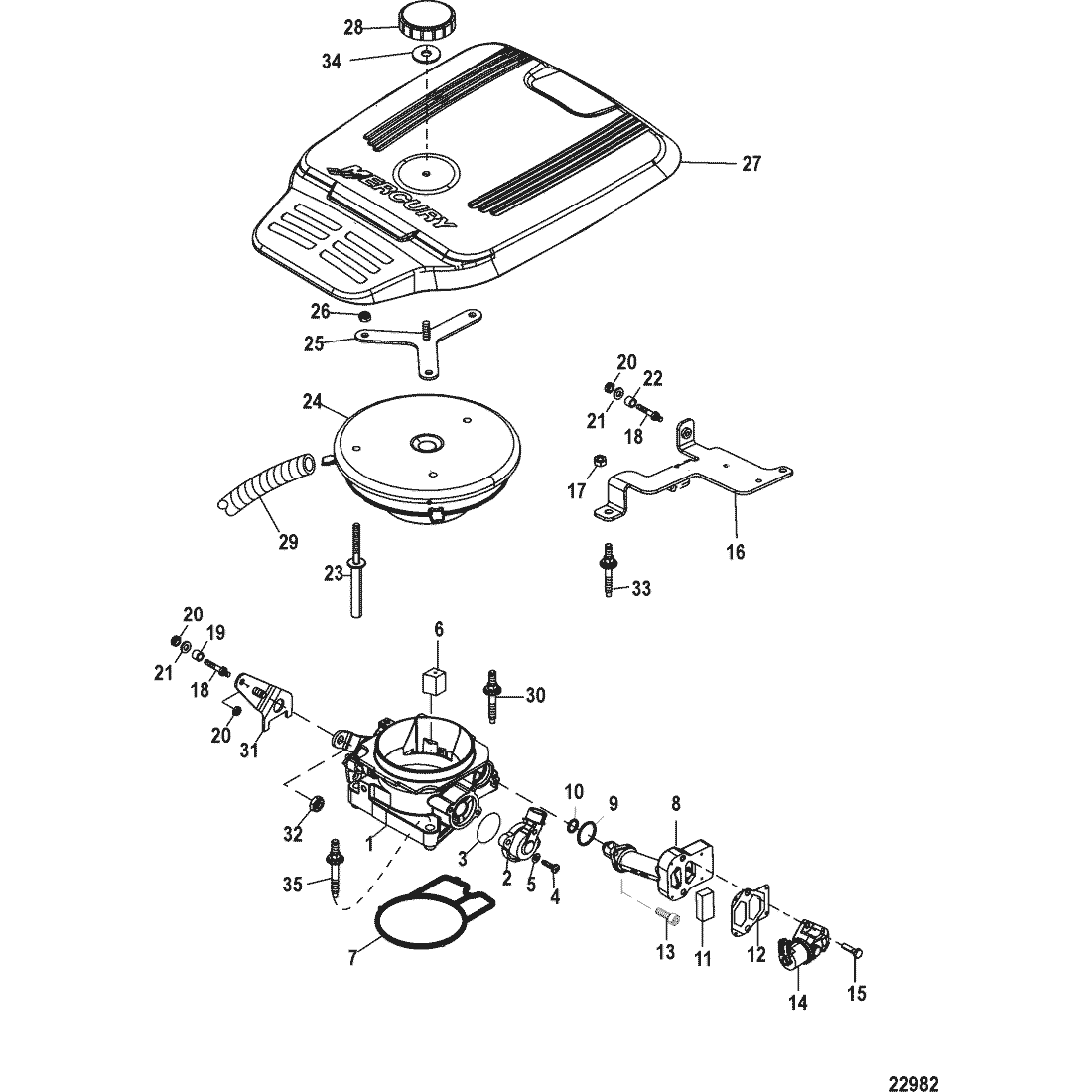

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M4502084 | THROTTLE BODY ASSEMBLY | 885170001 | SS/ACT |
 |
$586.50 | $551.78 | 1 | |
| 2 | 8M0221731 | --SENSOR, TPS | 853678T | SS/ACT |
|
$123.92 | $116.70 | 1 | |
| 3 | NSS | --NOT SOLD SEPARATE, O-Ring |
|
$0.00 | $0.00 | 1 | |||
| 4 | 10-853680 | --SCREW KIT | SS |
|
$0.00 | $0.00 | 2 | ||
| 5 | NSS | --NOT SOLD SEPARATE, Washer |
|
$0.00 | $0.00 | 1 | |||
| 6 | 35-863829 | --MUFFLER, Intake Air Control | ACT | $2.80 | $2.74 | 1 | |||
| 7 | 27-8M0162949 | --GASKET, Throttle Body | 885172 | SS/ACT |
|
$80.50 | $77.43 | 1 | |
| 8 | 866295A02 | IAC ADAPTOR KIT | ACT |
|
$176.58 | $166.29 | 1 | ||
| 9 | 25-863006 | --O-RING | ACT |
|
$2.50 | $2.44 | 1 | ||
| 10 | 25-808547 | --O-RING | ACT |
|
$1.60 | $1.57 | 1 | ||
| 11 | 35-865266 | --FILTER | ACT | $11.20 | $10.93 | 1 | |||
| 12 | NSS | --NOT SOLD SEPARATE, GASKET |
|
$0.00 | $0.00 | 1 | |||
| 13 | 10-4008612 | SCREW, (M4 x 12) | ACT | $1.70 | $1.66 | 2 | |||
| 14 | 862998 | VALVE, Idle Air | ACT | $205.92 | $0.00 | 1 | |||
| 15 | 10-4008820 | SCREW, (M6 x 20) | ACT | $2.80 | $2.74 | 2 | |||
| 16 | 863421T1 | BRACKET | ACT | $45.08 | $44.27 | 1 | |||
| 17 | 11-401366 | NUT, (M6) Stainless Steel | ACT | $3.50 | $3.42 | 2 | |||
| 18 | 16-97477A3 | STUD KIT, Throttle Anchor | ACT |
|
$31.92 | $31.34 | 2 | ||
| 19 | NSS | --NOT SOLD SEPARATE, Spacer |
|
$0.00 | $0.00 | 1 | |||
| 20 | 11-8267139 | --NUT, (.250-28) | ACT | $2.50 | $2.44 | 3 | |||
| 21 | 12-20533 | --WASHER | ACT | $1.40 | $1.37 | 2 | |||
| 22 | 23-31866 | --SPACER, (.256 x .313 x .625) | ACT | $5.50 | $5.37 | 2 | |||
| 22 | 23-11284 | --SPACER, (.62 Diameter) | ACT | $4.00 | $3.91 | 1 | |||
| 23 | 16-864338 | STUD, Special | ACT | $12.20 | $11.90 | 3 | |||
| 24 | 863416T | FLAME ARRESTOR | ACT | $235.75 | $222.01 | 1 | |||
| 25 | 863423 | BRACKET, Cover Mount | ACT | $13.90 | $13.56 | 1 | |||
| 26 | 11-401386 | NUT, (M6) Stainless Steel | ACT | $4.90 | $4.78 | 3 | |||
| 27 | 863681T | COVER, Black, Engine | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 879288T67 | COVER, Silver, Engine | ACT |
|
$143.17 | $134.83 | 1 | ||
| 28 | 11-863701 | KNOB, Engine Cover | ACT | $12.50 | $12.19 | 1 | |||
| 29 | 32-8M0086022 | HOSE, (16.50 Inches Bulk), Breather | 1589424 | SS/ACT |
|
$34.92 | $34.29 | 1 | |
| 30 | 16-8M0088142 | STUD | 885171 | SS/ACT |
|
$21.58 | $21.20 | 1 | |
| 31 | 863417 | BRACKET, Throttle | ACT | $16.40 | $16.00 | 1 | |||
| 32 | 11-8267138 | NUT, (.25-20) | ACT | $2.70 | $2.64 | 1 | |||
| 33 | 16-8M0088142 | STUD | 885171 | SS/ACT |
|
$21.58 | $21.20 | 3 | |
| 34 | 12-86400 | WASHER, Seal | ACT | $1.60 | $1.57 | 1 | |||
| 35 | 16-8M0054510 | STUD | ACT | $10.00 | $9.76 | 2 |
