| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

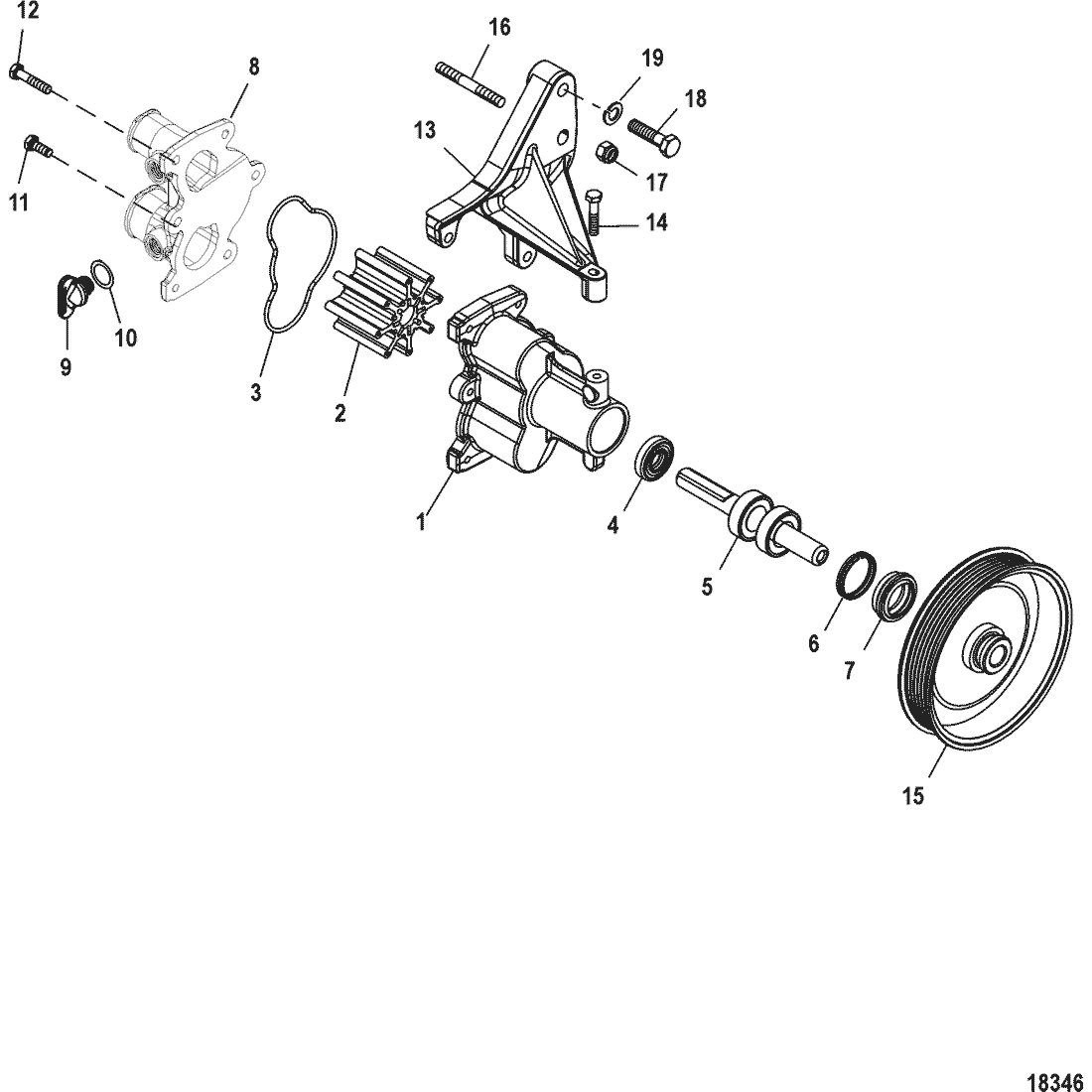

| - | 8M0139995 | PUMP KIT, Sea Water | 862914T10 | SS |
|
$668.49 | $608.81 | 1 | |
| 1 | 8M0139984 | --HOUSING ASSEMBLY, Impeller | 862914A13 | SS |
|
$542.99 | $494.32 | 1 | |
| 2 | 8M0104229 | ----IMPELLER | 862232A2 | SS |
|
$52.49 | $49.29 | 1 | |
| 3 | 841807 | ------O-RING, (3.500 x .103) (Also included with Reference 8) | ACT | $5.79 | $5.66 | 1 | |||
| 4 | 8M0146317 | ----SEAL, Oil | 862037 | SS |
|
$6.79 | $6.64 | 1 | |
| 5 | 8M0140001 | ----DRIVESHAFT ASSEMBLY | 862235A1 | NLA |
|
$135.99 | $122.53 | 1 | |
| 6 | 862039 | ----TOLERANCE RING | ACT | $26.49 | $26.03 | 1 | |||
| 7 | 862040 | ----SEAL, Lip | ACT | $10.59 | $10.34 | 1 | |||
| 8 | 862776A01 | --COVER KIT, Impeller Housing | ACT |
|
$140.49 | $126.52 | 1 | ||
| 9 | 8M0119211 | ----PLUG KIT, (.500-13) Royal Blue | 806608A1 | SS |
|
$10.19 | $9.95 | 2 | |
| 10 | 32509 | ------O-RING, (.489 x .070) | ACT | $2.39 | $2.33 | 2 | |||
| 11 | 8M0214928 | --SCREW, (M6 x 16) | 4000328 | SS |
|
$4.09 | $4.00 | 6 | |
| 12 | 4000331 | SCREW, (M6 x 30) | ACT | $3.79 | $3.69 | 2 | |||
| 13 | 865143T01 | BRACKET, Sea Water Pump | 865143T | SS |
|
$91.99 | $86.41 | 1 | |
| 14 | 4000331 | SCREW, (M6 x 30) | ACT | $3.79 | $3.69 | 1 | |||
| 15 | 8M0150724 | PULLEY | 862351T | SS |
|
$124.49 | $112.24 | 1 | |
| 16 | 863853 | STUD | ACT | $4.69 | $4.59 | 2 | |||
| 17 | 82671112 | NUT, (.375-16) | ACT | $3.59 | $3.50 | 2 | |||
| 18 | 32132 | SCREW, (.375-16 x 1.750) | ACT | $2.99 | $2.92 | 1 | |||
| 19 | 35048 | LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 1 |
