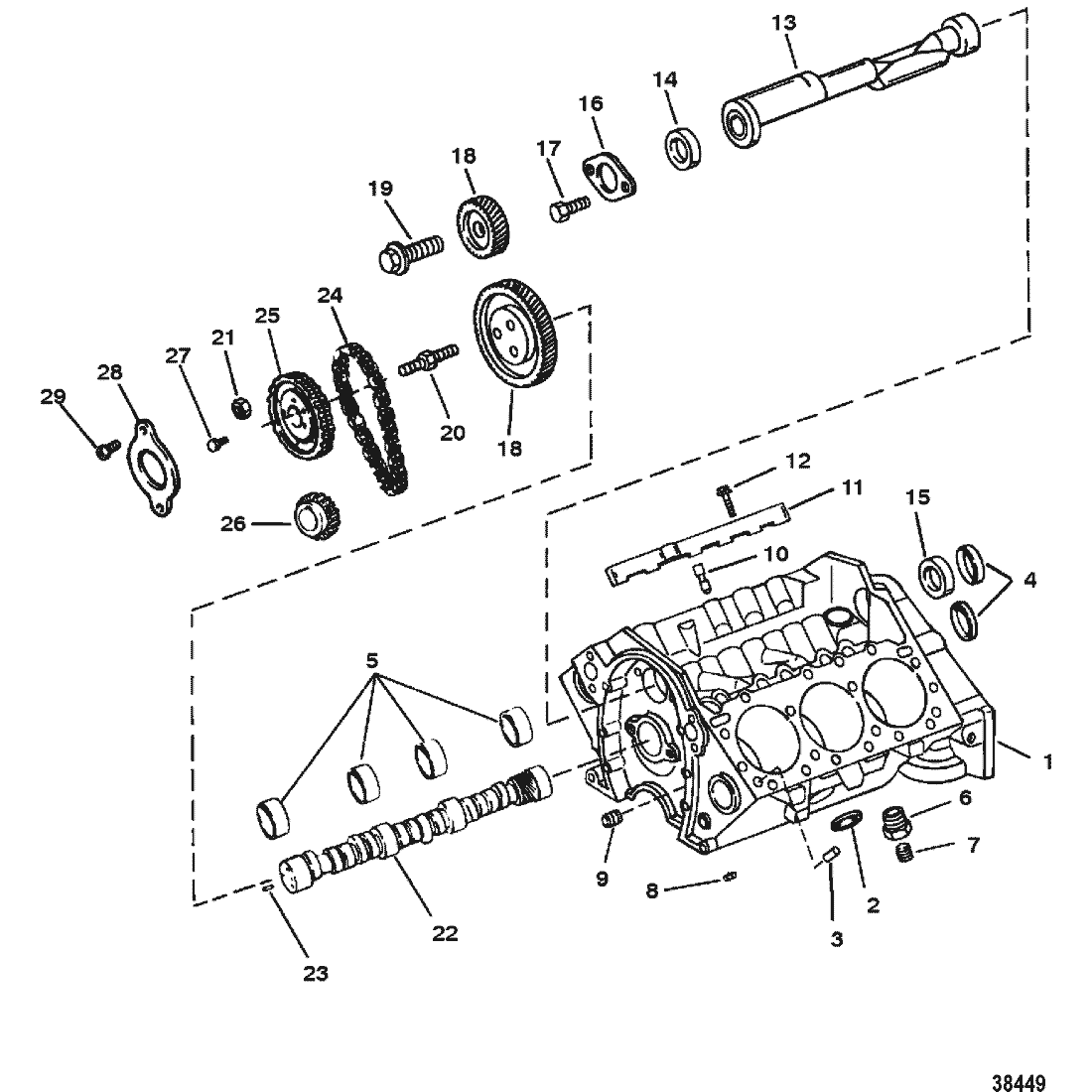

- MARINE LONG BLOCK ENGINES INCLUDE INTERNAL PARTS AND CYLINDER HEADS
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | NSS | NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY |
 |
$0.00 | $0.00 | 1 | |||
| 2 | 19-34270 | --EXPANSION PLUG, (1.625) | ACT | $9.40 | $9.17 | 8 | |||
| 3 | 17-35465 | --PIN, Dowel (.312) | ACT | $6.70 | $6.54 | 4 | |||
| 4 | 22-72640 | --PLUG, Expansion | ACT | $13.70 | $13.36 | 2 | |||
| 5 | 23-802999 | --BEARING SET | ACT | $79.83 | $76.79 | 1 | |||
| 6 | 22-48556 | --BUSHING , Reducer (.250 To .125) | ACT | $7.70 | $7.51 | 2 | |||
| 7 | 22-328022 | --PLUG, Pipe (.125-27) | 328021 | SS/ACT |
|
$7.30 | $7.12 | 2 | |
| 8 | 22-42796 | --VALVE, Oil Filter Bypass | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 19-816565 | --PLUG, Cup (.468), Expansion | ACT | $10.30 | $10.05 | 1 | |||
| 10 | 811844T | LIFTER | 811844 | SS/ACT |
|
$139.17 | $131.06 | 12 | |
| 11 | 824331 | RETAINER | SS |
|
$0.00 | $0.00 | 2 | ||
| 12 | 10-824332 | SCREW | SS |
|
$0.00 | $0.00 | 4 | ||
| 13 | 824148 | SHAFT, Balanced | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | NSS | --NOT SOLD SEPARATE, BEARING, Ball (Front) |
|
$0.00 | $0.00 | 1 | |||
| 15 | 31-8M0158199 | BEARING, Needle | 824150 | SS/ACT |
|
$162.25 | $152.80 | 1 | |
| 16 | 824153 | RETAINER, Balance Shaft | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 10-845943 | SCREW, (.250-20 x .500) | ACT | $6.50 | $6.34 | 2 | |||
| 18 | 43-8241511 | GEAR KIT | ACT |
|
$264.75 | $249.32 | 1 | ||
| 19 | 10-824152 | SCREW | SS |
|
$0.00 | $0.00 | 1 | ||
| 20 | 16-824340 | STUD | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 11-824341 | NUT | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 431-803186 | CAMSHAFT | 824327 | SS/ACT |
|
$627.21 | $590.09 | 1 | |
| 23 | 17-843378 | PIN, Dowel (1/4 In. Diameter) | 35312 | SS/ACT |
|
$15.40 | $15.02 | 1 | |
| 24 | 8M0187687 | CHAIN, Timing | 17161 | SS/ACT |
|
$138.58 | $130.51 | 1 | |
| 25 | 43-824328T | SPROCKET, Camshaft | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 43-8M0184208 | SPROCKET, Crankshaft | 17160 | SS/ACT |
|
$71.58 | $68.85 | 1 | |
| 27 | 10-824329 | SCREW, (.312-18 x .750) | SS |
|
$0.00 | $0.00 | 2 | ||
| 28 | 824333 | RETAINER, Camshaft | ACT | $36.50 | $35.84 | 1 | |||
| 29 | 10-824334 | SCREW, (.250-20 x .500) | ACT | $3.00 | $2.93 | 2 | |||
| - | 806347R5 | LONGBLOCK ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 27-824326A93 | GASKET SET, Engine Overhaul | ACT | $753.64 | $709.03 | 1 | |||
| - | 92-809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue | ACT | $21.75 | $21.36 | 1 | |||
| - | 92-34227Q02 | SEALING COMPOUND, (16 Ounce) | SS |
|
$0.00 | $0.00 | 1 |
