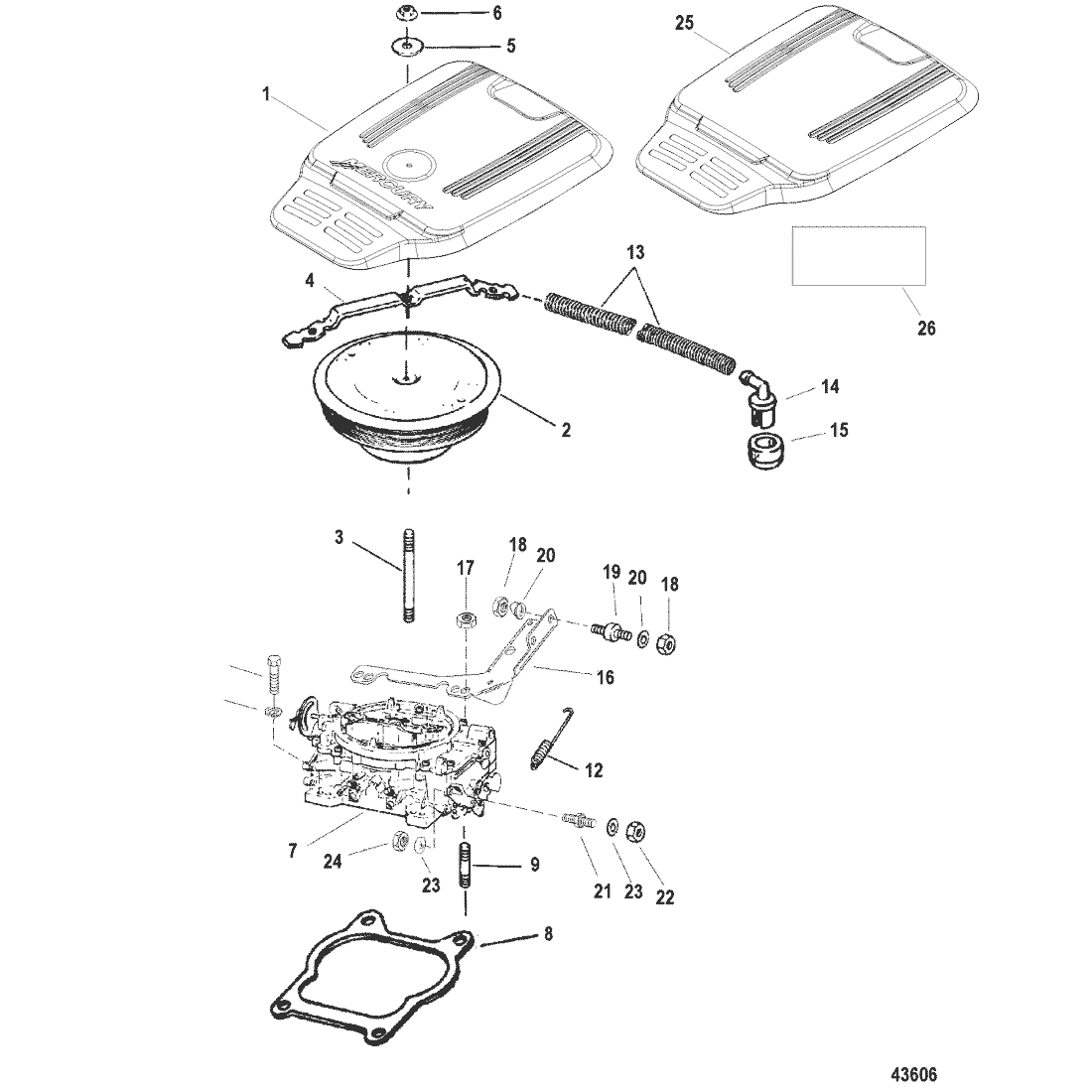

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 879288T66 | COVER, Black | 863681T | NLA |
|
$176.99 | $166.69 | 1 | |
| 2 | 805298A1 | FLAME ARRESTOR | ACT |
|
$309.99 | $291.85 | 1 | ||
| 3 | 805296 | --STUD, (4.50 Inch) | ACT | $51.49 | $49.41 | 1 | |||
| 4 | 805314 | --RETAINER, Breather Hose | ACT | $26.59 | $26.11 | 1 | |||
| 5 | 86400 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 6 | 826709109 | NUT, (.250-28) Stainless Steel | ACT | $3.59 | $3.50 | 1 | |||
| 7 | 8M0046657 | CARBURETOR ASSEMBLY | ACT | $1,241.49 | $1,137.98 | 1 | |||
| 8 | 524572 | GASKET | ACT | $5.49 | $5.37 | 1 | |||
| 9 | 8M0113177 | STUD, (.312 x 1.500) | 70236 | SS |
|
$5.49 | $5.37 | 2 | |
| 10 | 35386 | SCREW, (.312-18 x 1.00) | ACT | $1.10 | $1.08 | 2 | |||
| 11 | 39107 | LOCKWASHER, (.312-24) | ACT | $1.50 | $1.47 | 2 | |||
| 12 | 897454 | SPRING | 32817 | SS |
|
$12.29 | $12.00 | 1 | |
| 13 | 8M0086022 | HOSE, (16.50 Inches Bulk) | 1589424 | SS |
|
$36.49 | $35.68 | 2 | |
| 14 | 97850T | ELBOW, 90 Degree, Breather | 97850 | SS |
|
$5.69 | $5.56 | 2 | |
| 15 | 827152 | GROMMET | ACT | $17.89 | $17.52 | 2 | |||
| 16 | 805359T | BRACKET | ACT | $70.99 | $68.21 | 1 | |||
| 17 | 29250 | NUT, (.312-24) | ACT | $2.89 | $2.82 | 2 | |||
| 18 | 826709109 | NUT, (.250-28) Stainless Steel | ACT | $3.59 | $3.50 | 2 | |||
| 19 | 818192 | STUD | ACT | $20.49 | $20.13 | 1 | |||
| 20 | 24664 | WASHER, (M4 x 20) | ACT | $1.40 | $1.37 | 2 | |||
| 21 | 8M0113178 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 96112 | SS |
|
$3.09 | $3.01 | 1 | |
| 22 | 8267089 | NUT, (.250-28) | ACT | $1.50 | $1.47 | 1 | |||
| 23 | 8M0204649 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 | SS |
|
$1.20 | $1.18 | 2 | |
| 24 | 826709109 | NUT, (.250-28) Stainless Steel | ACT | $3.59 | $3.50 | 1 | |||
| 25 | 8M0103982 | COVER, Flame | 879194T80 | NLA |
|
$528.99 | $497.55 | 1 | |
| 26 | 8M0045073 | DECAL SET, 4.3L Alpha 4V | ACT | $145.49 | $136.94 | 1 | |||
| - | 824326A02 | GASKET SET | ACT | $965.49 | $907.94 | 1 |
