Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

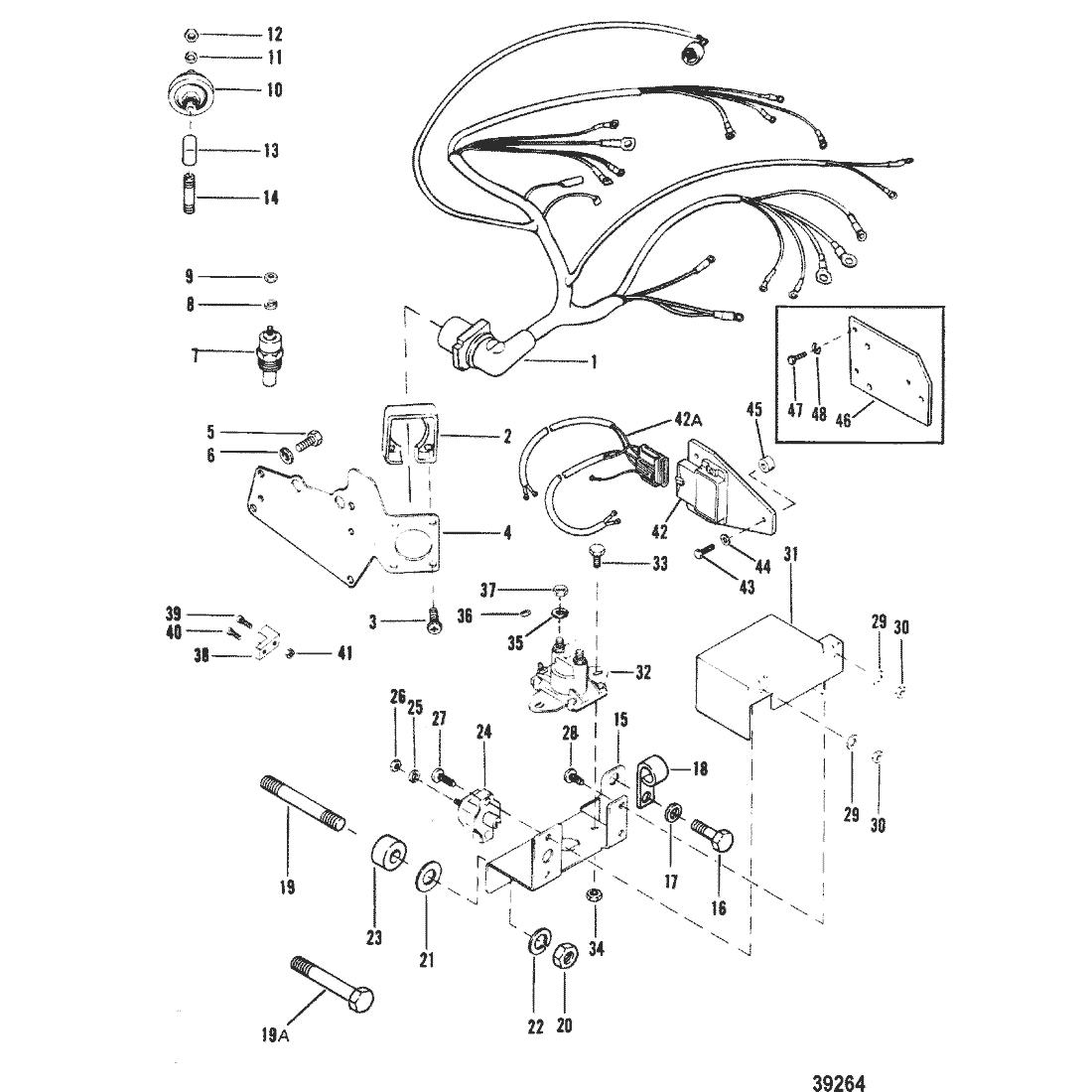

1 99510A11 HARNESS ASSEMBLY NLA $0.00 $0.00 1
2 26079A2 PLATE, WIRING HARNESS 26079 SS $29.99 $29.38 1
2 26079A2 PLATE KIT, Wire Harness Mount ACT $29.99 $29.38 1
3 15001 --SCREW, (#8-16 x .875) ACT $3.29 $3.21 4
3 34696 SCREW, (#8-32 x .750) NLA $0.00 $0.00 4
4 98493A2 BRACKET, MOUNTING NLA $0.00 $0.00 1
5 49668 SCREW, (.250-20 x .750), MOUNTING BRACKET ACT $1.10 $1.08 3
6 26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET ACT $1.20 $1.18 3
7 806490T SENDER ASSEMBLY, Water Temperature (3/8-18) 97257A1 SS $41.49 $40.58 1
7 97258A1 SENDER ASSEMBLY (1/2-14) ACT $57.99 $54.62 1
7 49734 SENDER ASSEMBLY, Water Temperature (DUAL) 49734A1 SS $90.49 $85.15 OPT
8 26996 --LOCKWASHER, (#10) Stainless Steel ACT $1.20 $1.18 1
9 68219 --NUT, (#10-32) Stainless Steel ACT $2.99 $2.92 1
10 8M0068784 SENDER 90806 SS $133.49 $120.13 1
10 37293T SENDER ASSEMBLY, Oil Pressure (DUAL) 37293 SS $205.99 $185.41 OPT
11 26996 --LOCKWASHER, (#10) Stainless Steel ACT $1.20 $1.18 1
12 68219 --NUT, (#10-32) Stainless Steel ACT $2.99 $2.92 1
13 46932 ELBOW, OIL PRESSURE SENDER NLA $0.00 $0.00 1
14 885153 NIPPLE, OIL PRESSURE SENDER 42554 SS $23.59 $23.16 1
15 41170T BRACKET, MOUNTING NLA $0.00 $0.00 1
16 98260 SCREW, (.375-16 x .620), MOUNTING BRACKET ACT $1.10 $1.08 1
17 35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW ACT $1.20 $1.18 1
18 92850 CLAMP, BRACKET SCREW ACT $4.09 $4.00 1
19 56826 STUD, (1.5 In.), MOUNTING BRACKET ACT $11.09 $10.83 1
19A 37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET ACT $2.49 $2.43 1
20 46335 NUT, MOUNTING BRACKET STUD 24883 SS $2.97 $2.92 1
21 20572 WASHER, (.390 x .750 x .093), MOUNTING BRACKET STUD ACT $1.60 $1.57 1
22 35048 LOCKWASHER, (.375), MOUNTING BRACKET STUD ACT $1.20 $1.18 1
23 57369 SPACER, MOUNTING BRACKET STUD ACT $19.79 $19.40 1
24 11178A01 BREAKER, Circuit - 50 Ampere 11178 SS $121.49 $109.31 1
25 26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL ACT $1.20 $1.18 2
26 68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL ACT $2.99 $2.92 2
27 45862 SCREW, (#10-32 x .875), CIRCUIT BREAKER ACT $1.40 $1.37 2
28 45218 SCREW, (#10-32 x .380), INSULATOR NLA $0.73 $0.72 1
29 8M0204666 WASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREW 56681 SS $1.80 $1.76 2
30 46438 NUT, (#10-32), INSULATOR SCREW ACT $5.79 $5.66 3
31 96819T INSULATOR, CIRCUIT BREAKER NLA $0.00 $0.00 1
32 8M0185149 SOLENOID ASSEMBLY, Starter 96054 SS $38.99 $38.14 1
33 96138 SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8") 47910 SS $0.00 $0.00 2
34 20088 NUT, STARTER SOLENOID SCREW NLA $0.00 $0.00 2
35 26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL ACT $1.20 $1.18 2
36 26419 NUT, (#8-32) Brass ACT $1.70 $1.66 2
37 94330 NUT, (.250-20) Brass ACT $1.70 $1.66 2
38 45915 TERMINAL BLOCK ACT $0.90 $0.88 1
39 62568 SCREW, (#10-16 x .375), TERMINAL BLOCK LEADS ACT $1.10 $1.08 1
40 22028 SCREW, (#10-32 x .50), TERMINAL BLOCK NLA $0.88 $0.86 1
41 46438 NUT, (#10-32), TERMINAL BLOCK SCREW ACT $5.79 $5.66 1
42 15247A1 IGNITION AMPLIFIER NLA $0.00 $0.00 1
42A 15275A1 --HARNESS ASSEMBLY NLA $0.00 $0.00 1
43 8M0214943 SCREW, (.250-20 x 1.00), AMPLIFIER 76630 SS $1.80 $1.76 3
44 26992 LOCKWASHER, (.250) Stainless Steel, AMPLIFIER SCREW ACT $1.20 $1.18 3
45 92152T SPACER, (.27 x .75 x .38), AMPLIFIER SCREW 92152 SS $6.89 $6.73 3
46 125001 PLATE, IGNITION AMPLIFIER NLA $0.00 $0.00 1
47 76596 SCREW, (.250-20 x 1.250), AMPLIFIER PLATE ACT $2.49 $2.43 3
48 26992 LOCKWASHER, (.250) Stainless Steel, AMPLIFIER PLATE SCREW ACT $1.20 $1.18 3
- 11149A5 HARNESS ASSEMBLY, Adapter NLA $0.00 $0.00 1
