| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

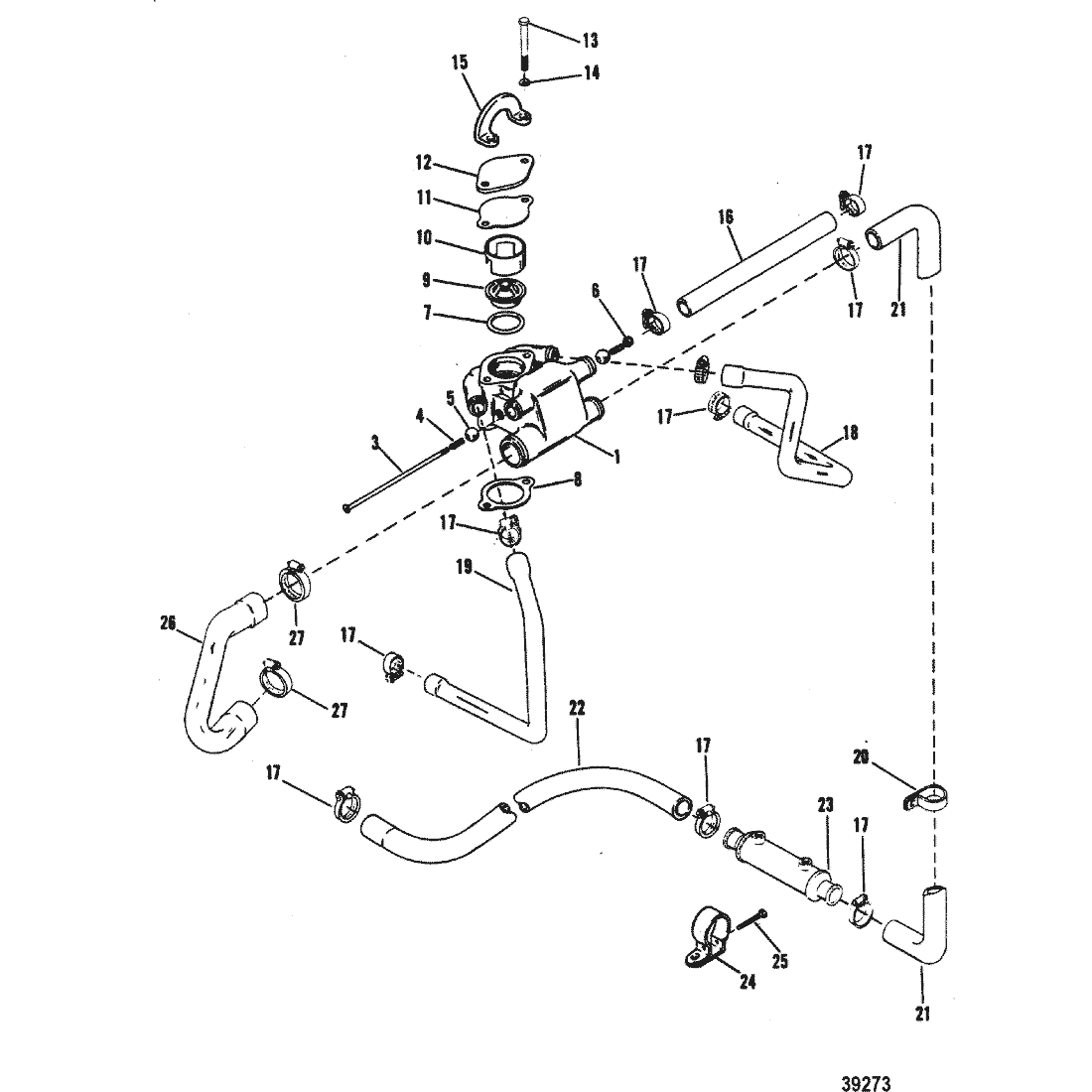

| 1 | 16413A3 | HOUSING ASSEMBLY, Thermostat | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8M0180565 | --PLUG, Pipe (.375-18) Brass | 32803 | SS |
|
$7.99 | $7.81 | 1 | |
| 3 | 17989 | --SCREW, (#10-32 x 8.600) | ACT | $8.69 | $8.49 | 1 | |||
| 4 | 75533 | --SPRING | ACT | $2.99 | $2.92 | 2 | |||
| 5 | 98475 | --BALL, Nylon | ACT | $11.19 | $10.93 | 2 | |||
| 6 | 8M0204718 | --NUT, (#10-32) | 29488 | SS |
|
$4.69 | $4.59 | 1 | |
| 7 | 8M0204651 | --O-RING, (1.859 x .139) | 30224 | SS |
|
$4.19 | $4.10 | 1 | |
| 8 | 530451 | GASKET, THERMOSTAT HOUSING | ACT | $5.69 | $5.56 | 1 | |||
| 9 | 8M0089715 | THERMOSTAT, (140 Degrees) (143 DEGREES) | 59137 | SS |
|
$27.69 | $27.17 | 1 | |
| 10 | 8M0214947 | SLEEVE, THERMOSTAT | 17495 | SS |
|
$17.89 | $17.46 | 1 | |
| 11 | 8M0214924 | GASKET, THERMOSTAT COVER | 331792 | SS |
|
$2.99 | $2.92 | 1 | |
| 12 | 17494A1 | COVER KIT, THERMOSTAT | ACT | $54.99 | $52.80 | 1 | |||
| 13 | 60410 | SCREW, (.375-16 x 4.250), THERMOSTAT HOUSING | ACT | $5.89 | $5.76 | 2 | |||
| 14 | 35048 | LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 15 | 12552 | LIFTING EYE | ACT | $19.89 | $19.41 | 1 | |||
| 16 | 8M0062614 | HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS | 3322070 | SS |
|
$71.49 | $68.76 | 2 | |
| 17 | 815504220 | CLAMP, HOSE ATTACHING | 32780 | SS |
|
$7.59 | $7.42 | 8 | |
| 18 | 160211 | HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) | 16021 | SS |
|
$40.99 | $40.25 | 1 | |
| 19 | 18810 | HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD) | ACT | $52.49 | $50.42 | 1 | |||
| 20 | 47715 | CLIP, HOSE ATTACHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 16012 | HOSE, THERMOSTAT HOUSING TO FLUID COOLER | ACT | $38.49 | $37.73 | 1 | |||
| 22 | 41642A3 | HOSE, FLUID COOLER (3/4" I.D.) | ACT | $63.49 | $60.92 | 1 | |||
| 23 | 8M0181740 | COOLER ASSEMBLY, POWER STEERING FLUID | 99356A2 | SS |
|
$565.99 | $532.16 | 1 | |
| 24 | 65970T1 | BRACKET, FLUID COOLER | 65970 | SS |
|
$17.89 | $17.46 | 1 | |
| 25 | 41408 | SCREW, (#10-32 x 1.50), CLAMPING | ACT | $3.39 | $3.30 | 1 | |||
| 26 | 861590A05 | HOSE, Molded, THERMOSTAT HOUSING TO WATER PUMP | 87108 | SS |
|
$65.99 | $63.16 | 1 | |
| 27 | 815504232 | CLAMP, HOSE ATTACHING | 87268 | SS |
|
$8.89 | $8.68 | 2 | |
| - | 11977A92 | GASKET SET | NLA |
|
$0.00 | $0.00 | 1 |
