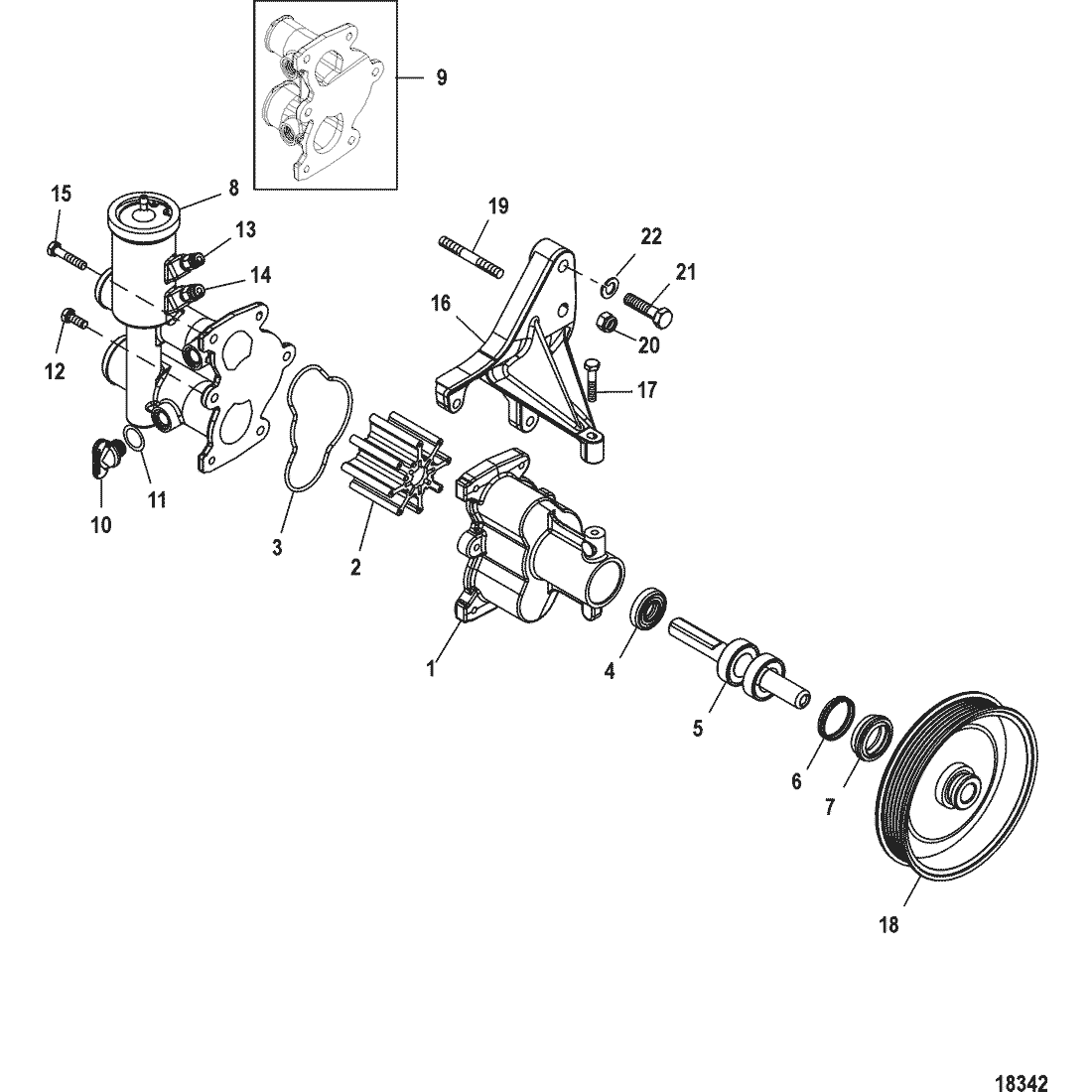

Sea Water Pump Assembly

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
-	46-8M0139995	PUMP KIT, Sea Water	862914T10	SS/ACT	$601.42	$572.34	1
-	46-8M0139996	PUMP KIT, Sea Water	862914T11	SS/ACT	$1,031.36	$945.47	1
1	46-8M0139984	--HOUSING ASSEMBLY, Impeller	862914A13	SS/ACT	$491.50	$469.81	1
2	47-8M0104229	----IMPELLER	862232A2	SS/ACT	$50.33	$48.42	1
3	25-841807	------O-RING, (3.500 x .103) (Also included with Reference 8 and 9)		ACT	$5.60	$5.47	1
4	26-8M0146317	----SEAL, Oil	862037	SS/ACT	$6.50	$6.34	1
5	862235A1	----DRIVESHAFT ASSEMBLY		SS	$0.00	$0.00	1
6	862039	----TOLERANCE RING		ACT	$25.50	$25.04	1
7	26-862040	----SEAL, Lip		ACT	$8.90	$8.68	1
8	863674A05	--COVER KIT, Impeller Housing		ACT	$499.93	$477.86	1
9	862776A01	--COVER KIT, Impeller Housing		ACT	$134.92	$127.06	1
10	22-8M0119211	----PLUG KIT, (.500-13) Royal Blue	806608A1	SS/ACT	$9.40	$9.17	2
11	25-32509	------O-RING, (.489 x .070)		ACT	$2.30	$2.25	2
12	10-8M0214928	--SCREW, (M6 x 16)		ACT	$3.90	$3.81	6
13	22-8M0082319	--FITTING, Gray - Straight, Male Air	863718	SS/ACT	$12.50	$12.19	1
14	22-8M0082320	--FITTING, Orange - Straight, Male Air	863719	SS/ACT	$12.50	$12.19	1
15	10-4000331	SCREW, (M6 x 30)		ACT	$3.70	$3.61	2
16	865143T01	BRACKET, Sea Water Pump	865143T	SS/ACT	$88.25	$84.88	1
17	10-4000331	SCREW, (M6 x 30)		ACT	$3.70	$3.61	1
18	8M0150724	PULLEY	862351T	SS/ACT	$119.75	$112.77	1
19	16-863853	STUD		ACT	$4.50	$4.39	2
20	11-82671112	NUT, (.375-16)		ACT	$3.50	$3.42	2
21	10-32132	SCREW, (.375-16 x 1.750)		ACT	$2.90	$2.83	1
22	13-35048	LOCKWASHER, (.375)		ACT	$1.20	$1.18	1

-

46-8M0139995

PUMP KIT, Sea Water

862914T10

SS/ACT

$601.42

$572.34

1

-

46-8M0139996

PUMP KIT, Sea Water

862914T11

SS/ACT

$1,031.36

$945.47

1

46-8M0139984

--HOUSING ASSEMBLY, Impeller

862914A13

SS/ACT

$491.50

$469.81

1

2

47-8M0104229

----IMPELLER

862232A2

SS/ACT

$50.33

$48.42

1

3

25-841807

------O-RING, (3.500 x .103) (Also included with Reference 8 and 9)

ACT

$5.60

$5.47

1

4

26-8M0146317

----SEAL, Oil

862037

SS/ACT

$6.50

$6.34

1

5

862235A1

----DRIVESHAFT ASSEMBLY

SS

$0.00

1

6

862039

----TOLERANCE RING

ACT

$25.50

$25.04

1

7

26-862040

----SEAL, Lip

ACT

$8.90

$8.68

1

8

863674A05

--COVER KIT, Impeller Housing

ACT

$499.93

$477.86

1

9

862776A01

--COVER KIT, Impeller Housing

ACT

$134.92

$127.06

1

10

22-8M0119211

----PLUG KIT, (.500-13) Royal Blue

806608A1

SS/ACT

$9.40

$9.17

2

11

25-32509

------O-RING, (.489 x .070)

ACT

$2.30

$2.25

2

12

10-8M0214928

--SCREW, (M6 x 16)

ACT

$3.90

$3.81

6

13

22-8M0082319

--FITTING, Gray - Straight, Male Air

863718

SS/ACT

$12.50

$12.19

1

14

22-8M0082320

--FITTING, Orange - Straight, Male Air

863719

SS/ACT

$12.50

$12.19

1

15

10-4000331

SCREW, (M6 x 30)

ACT

$3.70

$3.61

2

16

865143T01

BRACKET, Sea Water Pump

865143T

SS/ACT

$88.25

$84.88

1

17

10-4000331

SCREW, (M6 x 30)

ACT

$3.70

$3.61

1

18

8M0150724

PULLEY

862351T

SS/ACT

$119.75

$112.77

1

19

16-863853

STUD

ACT

$4.50

$4.39

2

20

11-82671112

NUT, (.375-16)

ACT

$3.50

$3.42

2

21

10-32132

SCREW, (.375-16 x 1.750)

ACT

$2.90

$2.83

1

22

13-35048

LOCKWASHER, (.375)

ACT

$1.20

$1.18

1
