| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

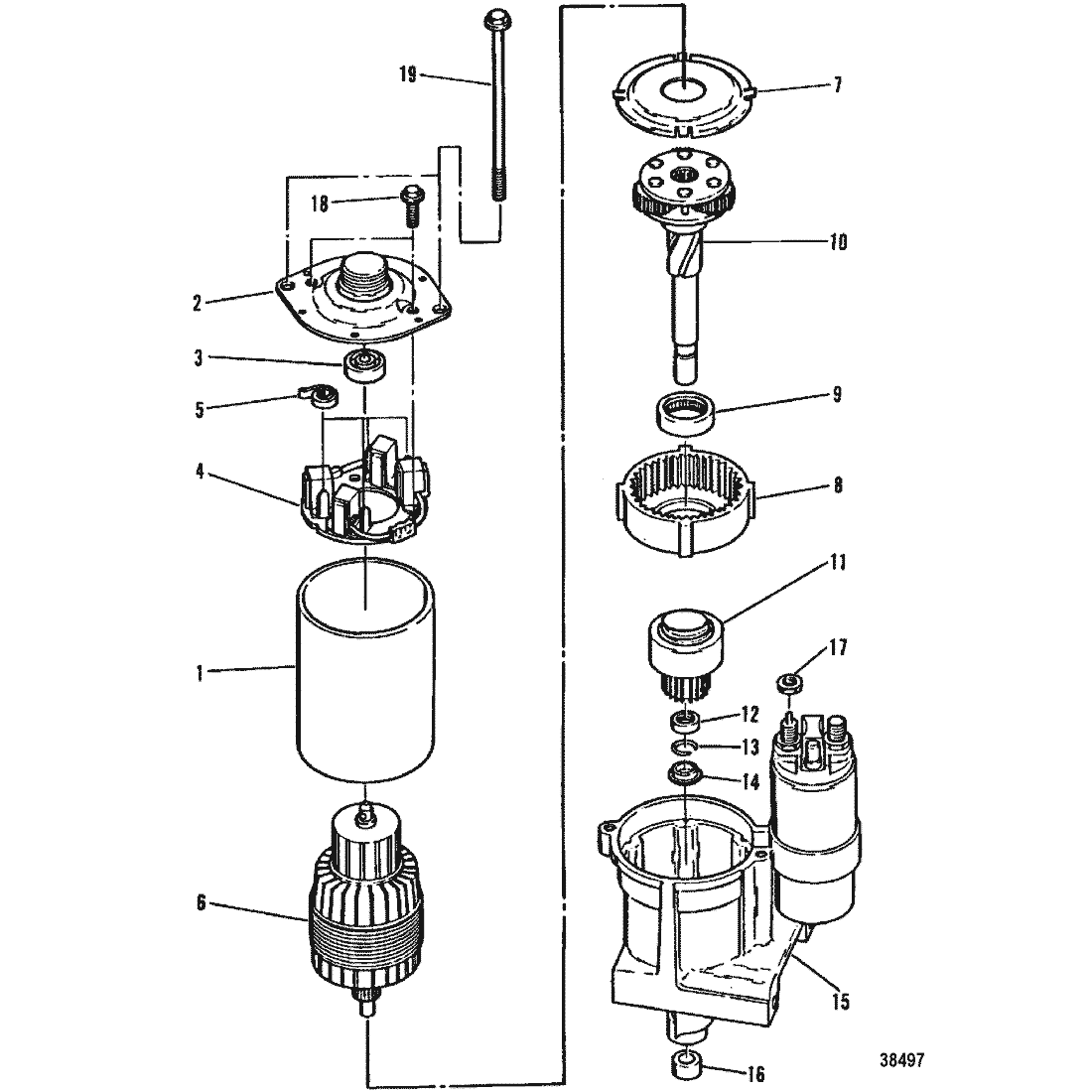

| 1 | 863007A1 | STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap | 812604A2 | SS |
|
$316.99 | $285.40 | 1 | |
| 2 | 814464 | --FRAME | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 814465 | --BEARING, Ball | NLA |
|
$22.21 | $21.67 | 1 | ||
| 4 | 814466 | --HOLDER, Brush | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 814467 | ----SPRING | NLA |
|
$5.19 | $5.06 | 4 | ||
| 6 | 814469 | --ARMATURE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 811882 | --SHIELD | 814470 | SS |
|
$0.00 | $0.00 | 1 | |
| 8 | 814471 | --GEAR AND BEARING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 814479 | --BEARING, Roller | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 863007A1 | --SHAFT/GEAR ASSEMBLY | 814472 | SS |
|
$316.99 | $285.40 | 1 | |
| 11 | 811896 | ----DRIVE | NLA |
|
$78.29 | $75.30 | 1 | ||
| 12 | 33291 | ----COLLAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 33290 | ----RING, Retaining | NLA |
|
$1.46 | $1.43 | 1 | ||
| 14 | 809457 | ----COLLAR | 814474 | SS |
|
$0.00 | $0.00 | 1 | |
| 15 | 814475 | --HOUSING, Drive | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 814476 | ----BUSHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 814468 | --SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 814477 | --THRU BOLT | NLA |
|
$0.00 | $0.00 | 2 |
