| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

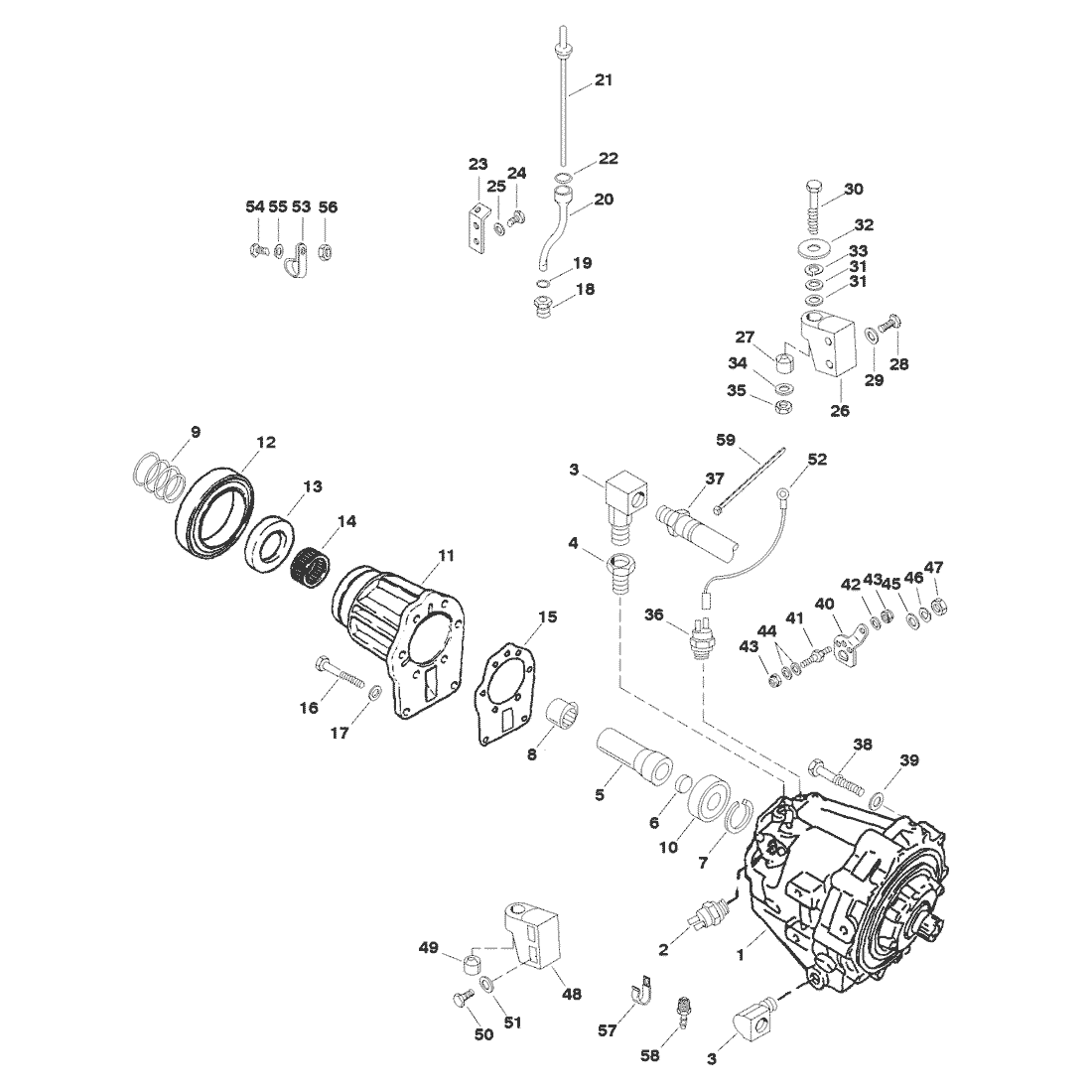

| - | 821847A6 | TRANSMISSION ASSEMBLY (COMPLETE) | SS |
 |
$0.00 | $0.00 | 1 | ||
| 1 | 821847A5 | --TRANSMISSION | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 47613 | ----SWITCH-Neutral | ACT | $359.92 | $338.94 | 1 | |||
| 3 | 22-47629 | --ELBOW-Transmission To Oil Hose | ACT | $18.17 | $17.84 | 2 | |||
| 4 | 22-88517 | --FITTING-Reducing-Transmission Elbow | ACT | $18.60 | $18.14 | 1 | |||
| 5 | 47339A4 | --COUPLING ASSY-Engine To Transmission | ACT |
|
$1,534.08 | $1,321.30 | 1 | ||
| 6 | 19-47463 | ----PLUG-Expansion-Engine Coupling | ACT | $11.90 | $11.61 | 1 | |||
| 7 | 53-47469 | ----RING-Snap-Bearing To Eng Coupling | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 23-47471T | ----BEARING-Engine Coupling | 47471 | SS/ACT |
|
$77.42 | $74.46 | 1 | |
| 9 | 24-47755 | ----SPRING-Guide-Engine Coupling | ACT | $56.58 | $54.43 | 1 | |||
| 10 | 30-47470 | ----BEARING-Ball | ACT | $149.92 | $141.18 | 1 | |||
| 11 | 47333A1 | --HOUSING ASSEMBLY-Bearing Support | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 25-47756 | ----O RING-Bearing Support Housing | ACT |
|
$59.93 | $57.66 | 1 | ||
| 13 | 26-47465 | ----SEAL-Oil-Bearing Support Housing | ACT | $29.00 | $28.48 | 1 | |||
| 14 | 31-47468T | ----BEARING-Needle-Support Housing | SS |
|
$0.00 | $0.00 | 1 | ||
| 15 | 27-47903 | --GASKET-Bearing Support Housing | ACT | $10.30 | $10.05 | 1 | |||
| 16 | 10-47462 | --SCREW (.437-14 x 1.250) | ACT | $1.70 | $1.66 | 8 | |||
| 17 | 13-32993 | --LOCKWASHER (.437) | ACT | $1.60 | $1.57 | 8 | |||
| 18 | 48461 | --ADAPTOR-Oil Level Gauge Tube To Trans | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 25-48462 | --O RING-Oil Level Tube Adaptor | ACT | $1.70 | $1.66 | 1 | |||
| 20 | 48463 | --TUBE-Oil Level Gauge | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 48464 | --GAUGE-Oil Level | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 25-35276 | ----O RING-Oil Level Gauge | ACT | $2.30 | $2.25 | 1 | |||
| 23 | 48466 | --BRACKET-Mount-Oil Level Gauge Tube | SS |
|
$0.00 | $0.00 | 1 | ||
| 24 | 10-34290 | --SCREW (.250-20 x .625) | SS |
|
$0.00 | $0.00 | 2 | ||
| 25 | 13-26992 | --LOCKWASHER (.250) | ACT | $1.20 | $1.18 | 2 | |||
| 26 | 47340A1 | --BRACKET ASSY-Trans Mount (PORT) | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 35852 | ----MOUNT-Transmission Mount Bracket | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 10-47462 | --SCREW (.437-14 x 1.250) | ACT | $1.70 | $1.66 | 2 | |||
| 29 | 13-32993 | --LOCKWASHER (.437) | ACT | $1.60 | $1.57 | 2 | |||
| 30 | 10-47467 | --SCREW (.625-18 x 5.500) | ACT | $19.40 | $18.92 | 2 | |||
| 31 | 12-47466 | --WASHER (NEOPRENE)-Tailstock Screws | ACT | $7.50 | $7.32 | 4 | |||
| 32 | 12-47475 | --WASHER-Tailstock Screws | ACT | $5.20 | $5.08 | 2 | |||
| 33 | 13-34846 | --LOCKWASHER-Tailstock Screws | ACT | $1.40 | $1.37 | 2 | |||
| 34 | 12-33171 | --WASHER-Tailstock Screws | ACT | $4.90 | $4.78 | 2 | |||
| 35 | 11-8M0214915 | --NUT (.625-18) | 22339 | SS/ACT |
|
$8.10 | $7.90 | 2 | |
| 36 | 87-88031 | --SWITCH-Temperature | ACT | $112.58 | $106.02 | 1 | |||
| 37 | 32-475166 | --HOSE (30.00 In.)-Trans To Oil Cooler | ACT | $132.33 | $124.62 | 2 | |||
| 38 | 10-60179 | --SCREW (.437-14 x 3.500) | ACT | $4.30 | $4.20 | 6 | |||
| 39 | 13-32993 | --LOCKWASHER (.437) | ACT | $1.60 | $1.57 | 6 |
