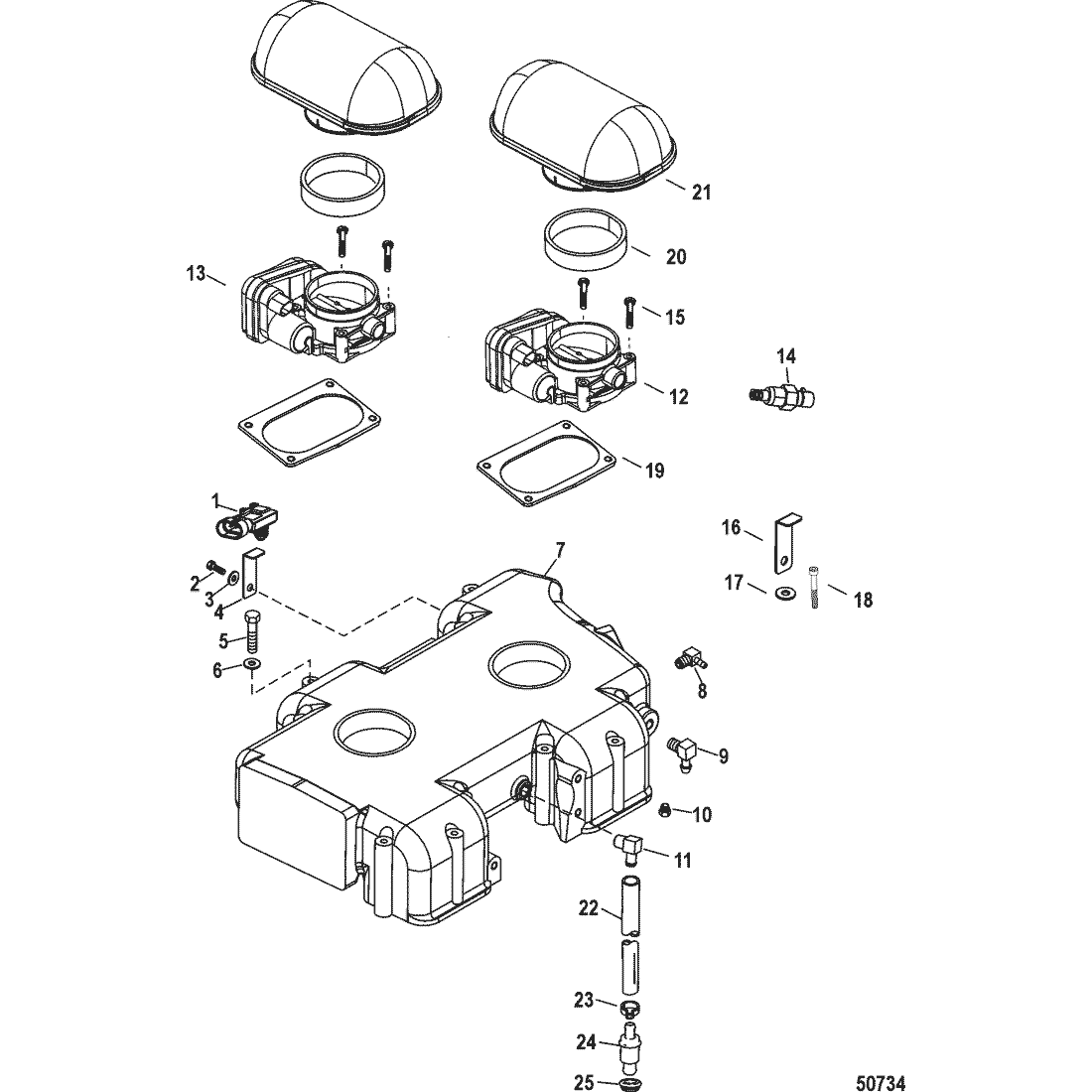

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 854445 | SENSOR, MAP, Manifold Absolute Pressure | ACT | $124.50 | $117.25 | 1 | |||
| 2 | 10-847401 | SCREW, (#10-24 x .380) | ACT | $1.40 | $1.37 | 1 | |||
| 3 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | ACT | $2.40 | $2.35 | 1 | |||
| 4 | 8M0061478 | BRACKET, MAP Sensor Mount | 840981 | SS/ACT |
 |
$3.90 | $3.81 | 1 | |
| 5 | 10-71319 | SCREW, (.250-20 x 3.750) | ACT | $5.91 | $5.84 | 12 | |||
| 6 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | ACT | $1.10 | $1.08 | 12 | |||
| 7 | 8M0064682 | PLENUM ASSEMBLY, Black | ACT |
|
$2,919.00 | $2,675.11 | 1 | ||
| 8 | 22-196881 | --FITTING, (90 Degree) | ACT | $90.67 | $87.21 | 1 | |||
| 9 | 22-73817 | --CONNECTOR, (90 Degree) | ACT | $20.92 | $20.54 | 1 | |||
| 10 | 22-328022 | --PLUG, Pipe (.125-27) Brass | ACT | $7.30 | $7.12 | 1 | |||
| 11 | 22-687271 | --FITTING, (.250-18) 90 Degree - Brass | ACT | $30.67 | $30.12 | 1 | |||
| 12 | 8M0046460 | --THROTTLE BODY ASSEMBLY, w/ Air Foil | 866592A04 | SS/ACT |
|
$956.93 | $900.28 | 1 | |
| 13 | 877828T02 | --CONTROL, Throttle - Electronic | ACT | $911.00 | $857.07 | 1 | |||
| 14 | 891663001 | --SENSOR ASSEMBLY, Temperature | ACT | $219.42 | $206.63 | 1 | |||
| 15 | 10-88552550 | --SCREW, (M6 x 50 MM) Stainless Steel | ACT | $2.70 | $2.64 | 8 | |||
| 16 | 884353 | --BRACKET | ACT | $14.00 | $13.66 | 2 | |||
| 17 | 12-30164 | --WASHER, (.192 x .375 x .0312) Stainless Steel | ACT | $2.40 | $2.35 | 2 | |||
| 18 | 10-90188 | --SCREW, (#10-24 x .500) Stainless Steel | ACT | $1.60 | $1.57 | 2 | |||
| 19 | 27-841156 | GASKET, Throttle Body To Plenum | ACT | $7.94 | $7.82 | 2 | |||
| 20 | 54-863393 | CLAMP | ACT | $47.08 | $46.24 | 2 | |||
| 21 | 8M0119612 | FLAME ARRESTOR | 862537T | SS/ACT |
|
$199.00 | $187.40 | 2 | |
| 22 | 32-8M0042521 | HOSE, (7.00 Inches) | 844172019 | SS/ACT |
|
$12.00 | $11.71 | 1 | |
| 23 | 54-848764 | CLAMP, (21 mm) | ACT | $3.80 | $3.71 | 1 | |||
| 24 | 8M0099429 | VALVE ASSEMBLY, Crankcase Vent | 848578 | SS/ACT |
|
$29.92 | $29.38 | 1 | |
| 25 | 25-811553 | GROMMET, Intake Manifold | ACT |
|
$35.08 | $34.45 | 1 | ||
| - | 8M0065565 | PARTIAL ENGINE ASSEMBLY | ACT | $29,525.75 | $26,436.82 | 1 |
