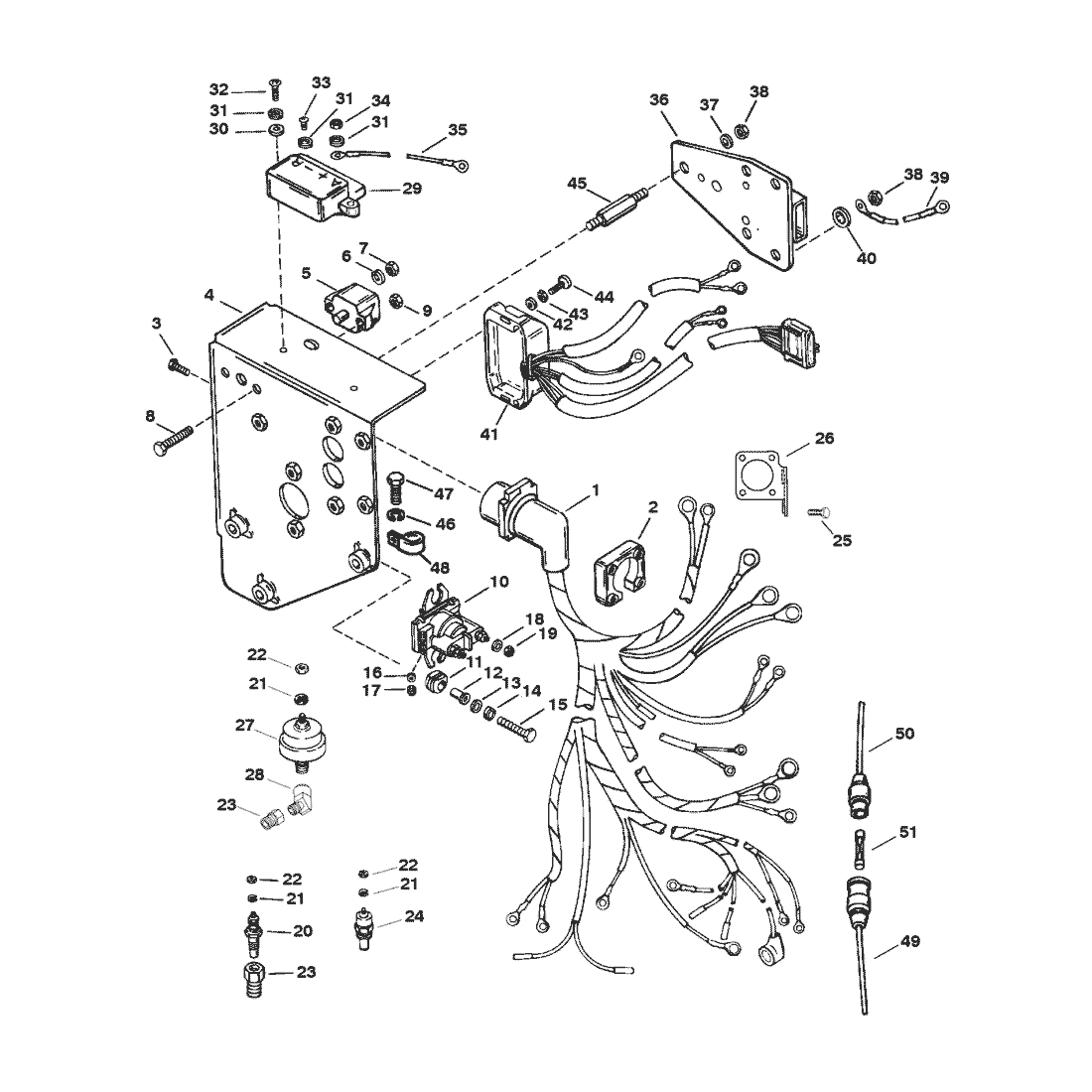

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 84-847722A2 | HARNESS ASSEMBLY-Wiring | ACT | $594.17 | $558.83 | 1 | |||
| 2 | 26079A2 | PLATE KIT | ACT |
 |
$19.50 | $19.02 | 1 | ||
| 3 | 10-15001 | --SCREW (#8-16 x .875) | ACT | $1.50 | $1.47 | 4 | |||
| 4 | 8481311 | BRACKET-Electrical Components | SS |
|
$0.00 | $0.00 | 1 | ||
| 5 | 88-11178A01 | BREAKER-Circuit (50 AMP) | 11178 | SS/ACT |
|
$116.58 | $109.79 | 1 | |
| 6 | 13-26996 | LOCKWASHER (#10) | ACT | $1.20 | $1.18 | 2 | |||
| 7 | 11-68219 | NUT (#10-32) | ACT | $2.90 | $2.83 | 2 | |||
| 8 | 10-45862 | SCREW (#10-32 x .875) | ACT | $1.30 | $1.27 | 2 | |||
| 9 | 11-61356 | NUT (#10-32) | ACT | $3.20 | $3.13 | 2 | |||
| 10 | 89-818999A2 | SOLENOID ASSEMBLY-Starter | ACT |
|
$62.67 | $60.28 | 1 | ||
| 11 | 25-818967 | --GROMMET | ACT | $3.10 | $3.03 | 2 | |||
| 12 | 23-818968 | --BUSHING | ACT | $2.80 | $2.74 | 2 | |||
| 13 | 12-8M0204649 | WASHER | ACT | $1.20 | $1.18 | 2 | |||
| 14 | 13-26992 | LOCKWASHER (.250) | ACT | $1.20 | $1.18 | 2 | |||
| 15 | 10-8M0214943 | SCREW (.250-20 x 1.00) | 76630 | SS/ACT |
|
$1.70 | $1.66 | 2 | |
| 16 | 13-26995 | LOCKWASHER (#8) | ACT | $1.10 | $1.08 | 2 | |||
| 17 | 11-26419 | NUT (#8-32) | ACT | $1.60 | $1.57 | 2 | |||
| 18 | 13-26992 | LOCKWASHER (.250) | ACT | $1.20 | $1.18 | 2 | |||
| 19 | 11-94330 | NUT (.250-20) | ACT | $1.60 | $1.57 | 2 | |||
| 20 | 13611 | SENDER ASSEMBLY-Oil Temperature | ACT |
|
$92.89 | $90.16 | 1 | ||
| 21 | 13-26996 | --LOCKWASHER (#10) | ACT | $1.20 | $1.18 | 3 | |||
| 22 | 11-45076 | --NUT (#10-32) | ACT | $1.70 | $1.66 | 3 | |||
| 23 | 22-64013 | REDUCER-Engine Block | ACT | $14.10 | $13.75 | 2 | |||
| 24 | 806490T | SENDER ASSEMBLY-Water Temperature | 97257A1 | SS/ACT |
|
$39.50 | $38.79 | 1 | |
| 24 | 49734 | SENDER ASSEMBLY-Water Temperature (Dual) | 49734A1 | SS/ACT |
|
$86.92 | $0.00 | OPT | |
| 25 | 10-88829 | SCREW (#10-24 x .500) | ACT | $3.30 | $3.22 | 4 | |||
| 26 | 8481911 | BRACKET-Wire Harness | ACT | $67.06 | $65.10 | 1 | |||
| 27 | 8M0068784 | SENDER ASSEMBLY-Oil Pressure | 815425 | SS/ACT |
|
$88.50 | $85.12 | 1 | |
| 27 | 37293T | SENDER ASSEMBLY-Oil Pressure (Dual) | 37293 | SS/ACT |
|
$197.75 | $186.23 | OPT | |
| 28 | 22-8M0123050 | FITTING (45 Degree) | 29085 | SS/ACT |
|
$21.00 | $20.62 | 1 | |
| 29 | 42600A09 | CONTROLLER ASSEMBLY | 42600A3 | SS/ACT |
|
$158.25 | $149.03 | 1 | |
| 30 | 12-30164 | WASHER | ACT | $2.40 | $2.35 | 2 | |||
| 31 | 13-26996 | LOCKWASHER (#10) | ACT | $1.20 | $1.18 | 7 | |||
| 32 | 10-41771 | SCREW (#10-24 x .875) | ACT | $1.20 | $1.18 | 2 | |||
| 32 | 10-35401 | SCREW (#10 x 1.00) | ACT |
|
$0.84 | $0.82 | 2 | ||
| 33 | 10-62568 | SCREW (#10-16 x .375) | ACT | $1.10 | $1.08 | 1 | |||
| 34 | 11-68219 | NUT (#10-32) | ACT | $2.90 | $2.83 | 4 | |||
| 35 | 84-86322A17 | CABLE ASSEMBLY (Black) | SS |
|
$0.00 | $0.00 | 1 | ||
| 36 | 15899A1 | IGNITION MODULE ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 37 | 12-8M0204649 | WASHER | ACT | $1.20 | $1.18 | 2 | |||
| 38 | 11-8267098 | NUT (.250-20) | 56374 | SS/ACT |
|
$6.60 | $6.44 | 3 | |
| 39 | 84-62826T06 | CABLE ASSEMBLY (Black) | 62826A6 | SS/ACT |
|
$19.50 | $19.02 | 1 | |
| 40 | 13-21272 | LOCKWASHER (.250 Internal) | ACT | $1.10 | $1.08 | 1 | |||
| 41 | 823755T1 | OVERSPEED ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 42 | 12-30164 | WASHER | ACT | $2.40 | $2.35 | 2 | |||
| 43 | 13-26996 | LOCKWASHER (#10) | ACT | $1.20 | $1.18 | 2 | |||
| 44 | 10-41771 | SCREW (#10-24 x .875) | ACT | $1.20 | $1.18 | 2 | |||
| 45 | 16-847738 | STUD-Electrical Bracket Mount | SS |
|
$0.00 | $0.00 | 3 | ||
| 46 | 12-45176 | WASHER | ACT | $1.40 | $1.37 | 3 | |||
| 47 | 10-825427 | SCREW-Bracket Mount (.437-14 x 1.250) | ACT | $6.70 | $6.54 | 3 | |||
| 48 | 54-848183 | J CLIP-Electrical Harness | ACT | $18.00 | $17.56 | 1 | |||
| 49 | 84-95084A9 | CABLE ASSEMBLY-Fuse | ACT |
|
$29.33 | $28.81 | 1 | ||
| 50 | 84-95084A10 | CABLE ASSEMBLY-Fuse | ACT |
|
$9.10 | $8.88 | 1 | ||
| 51 | 88-79091 | FUSE (20 AMP) | ACT |
|
$6.30 | $6.15 | 1 |
