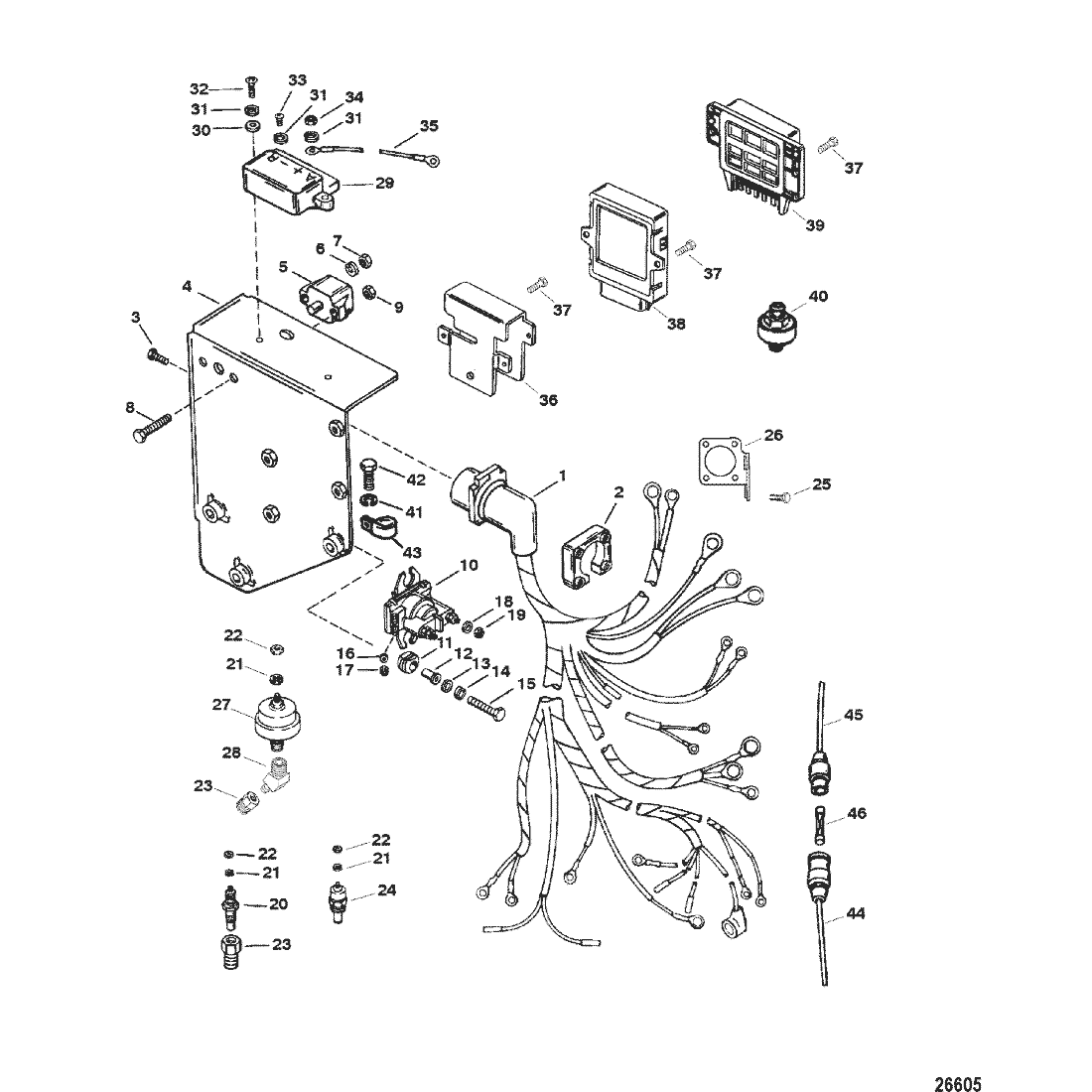

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 84-849142A1 | HARNESS ASSEMBLY, Wiring | ACT | $526.28 | $494.99 | 1 | |||
| 2 | 26079A2 | PLATE KIT, Wire Harness Mount | ACT |
 |
$19.50 | $19.02 | 1 | ||
| 3 | 10-15001 | --SCREW, (#8-16 x .875) | ACT | $1.50 | $1.47 | 4 | |||
| 4 | 848734T1 | BRACKET, Electrical Components | SS |
|
$0.00 | $0.00 | 1 | ||
| 5 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 11178 | SS/ACT |
|
$116.58 | $109.79 | 1 | |
| 6 | 13-26996 | LOCKWASHER, (#10) | ACT | $1.20 | $1.18 | 2 | |||
| 7 | 11-68219 | NUT, (#10-32) | ACT | $2.90 | $2.83 | 2 | |||
| 8 | 10-45862 | SCREW, (#10-32 x .875) | ACT | $1.30 | $1.27 | 2 | |||
| 9 | 11-61356 | NUT, (#10-32) | ACT | $3.20 | $3.13 | 2 | |||
| 10 | 89-818999A2 | SOLENOID ASSEMBLY, Starter | ACT |
|
$62.67 | $60.28 | 1 | ||
| 11 | 25-818967 | --GROMMET | ACT | $3.10 | $3.03 | 2 | |||
| 12 | 23-818968 | --BUSHING | ACT | $2.80 | $2.74 | 2 | |||
| 13 | 12-8M0204649 | WASHER, (.281 x .500 x .060) | ACT | $1.20 | $1.18 | 2 | |||
| 14 | 13-26992 | LOCKWASHER, (.250) | ACT | $1.20 | $1.18 | 2 | |||
| 15 | 10-8M0214943 | SCREW, (.250-20 x 1.00) | 76630 | SS/ACT |
|
$1.70 | $1.66 | 2 | |
| 16 | 13-26995 | LOCKWASHER, (#8) | ACT | $1.10 | $1.08 | 2 | |||
| 17 | 11-26419 | NUT, (#8-32) | ACT | $1.60 | $1.57 | 2 | |||
| 18 | 13-26992 | LOCKWASHER, (.250) | ACT | $1.20 | $1.18 | 2 | |||
| 19 | 11-94330 | NUT, (.250-20) | ACT | $1.60 | $1.57 | 2 | |||
| 20 | 13611 | SENDER ASSEMBLY, Oil Temperature | ACT |
|
$92.89 | $90.16 | 1 | ||
| 21 | 13-26996 | --LOCKWASHER, (#10) | ACT | $1.20 | $1.18 | 3 | |||
| 22 | 11-45076 | --NUT, (#10-32) | ACT | $1.70 | $1.66 | 3 | |||
| 23 | 22-64013 | FITTING, (.375 Male To .125 Female), Engine Block | ACT | $14.10 | $13.75 | 2 | |||
| 24 | 806490T | SENDER ASSEMBLY, Water Temperature - Thermostat Housing | 97257A1 | SS/ACT |
|
$39.50 | $38.79 | 1 | |
| 24 | 49734 | SENDER ASSEMBLY, Water Temperature - Thermostat Housing | 49734A1 | SS/ACT |
|
$86.92 | $0.00 | OPT | |
| 25 | 10-88829 | SCREW, (#10-24 x .500) | ACT | $3.30 | $3.22 | 4 | |||
| 26 | 8481911 | BRACKET, Wire Harness | ACT | $67.06 | $65.10 | 1 | |||
| 25 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 815425 | SS/ACT |
|
$88.50 | $85.12 | 1 | |
| 25 | 37293T | SENDER ASSEMBLY, Oil Pressure | 37293 | SS/ACT |
|
$197.75 | $186.23 | OPT | |
| 28 | 22-8M0123050 | FITTING, Elbow (45 Degree) | 29085 | SS/ACT |
|
$21.00 | $20.62 | 1 | |
| 29 | 42600A09 | CONTROLLER ASSEMBLY | 42600A3 | SS/ACT |
|
$158.25 | $149.03 | 1 | |
| 30 | 12-30164 | WASHER, (.192 x .375 x .0312) | ACT | $2.40 | $2.35 | 2 | |||
| 31 | 13-26996 | LOCKWASHER, (#10) | ACT | $1.20 | $1.18 | 7 | |||
| 32 | 10-41771 | SCREW, (#10-24 x .875) | ACT |
|
$1.20 | $1.18 | 2 | ||
| 32 | 10-35401 | SCREW, (#10 x 1.00) | ACT |
|
$0.84 | $0.82 | 2 | ||
| 33 | 10-62568 | SCREW, (#10-16 x .375) | ACT | $1.10 | $1.08 | 1 | |||
| 34 | 11-68219 | NUT, (#10-32) | ACT | $2.90 | $2.83 | 4 | |||
| 35 | 84-86322A17 | CABLE ASSEMBLY, Black | SS |
|
$0.00 | $0.00 | 1 | ||
| 36 | 807763T | BRACKET, Module Mounting | ACT | $12.40 | $12.10 | 1 | |||
| 37 | 10-806827 | SCREW, (#8-32 x .380) | ACT | $2.40 | $2.35 | 6 | |||
| 38 | 840128A01 | MODULE, Ignition | SS |
|
$0.00 | $0.00 | 1 | ||
| 39 | 805443 | MODULE ASSEMBLY, Spark Control | SS |
|
$0.00 | $0.00 | 1 | ||
| 40 | 805544T | SENSOR ASSEMBLY, Knock | SS |
|
$0.00 | $0.00 | 1 | ||
| 41 | 12-45176 | WASHER, (.453 x .812 x .105) | ACT | $1.40 | $1.37 | 3 | |||
| 42 | 10-825427 | SCREW, (.437-14 x 1.250), Bracket Mount | ACT | $6.70 | $6.54 | 3 | |||
| 43 | 54-848183 | J CLIP, Electrical Harness | ACT | $18.00 | $17.56 | 1 | |||
| 44 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches), Fuse | ACT |
|
$29.33 | $28.81 | 1 | ||
| 45 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches), Fuse | ACT |
|
$9.10 | $8.88 | 1 | ||
| 46 | 88-79091 | FUSE, 20 Ampere | ACT |
|
$6.30 | $6.15 | 1 |
