Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

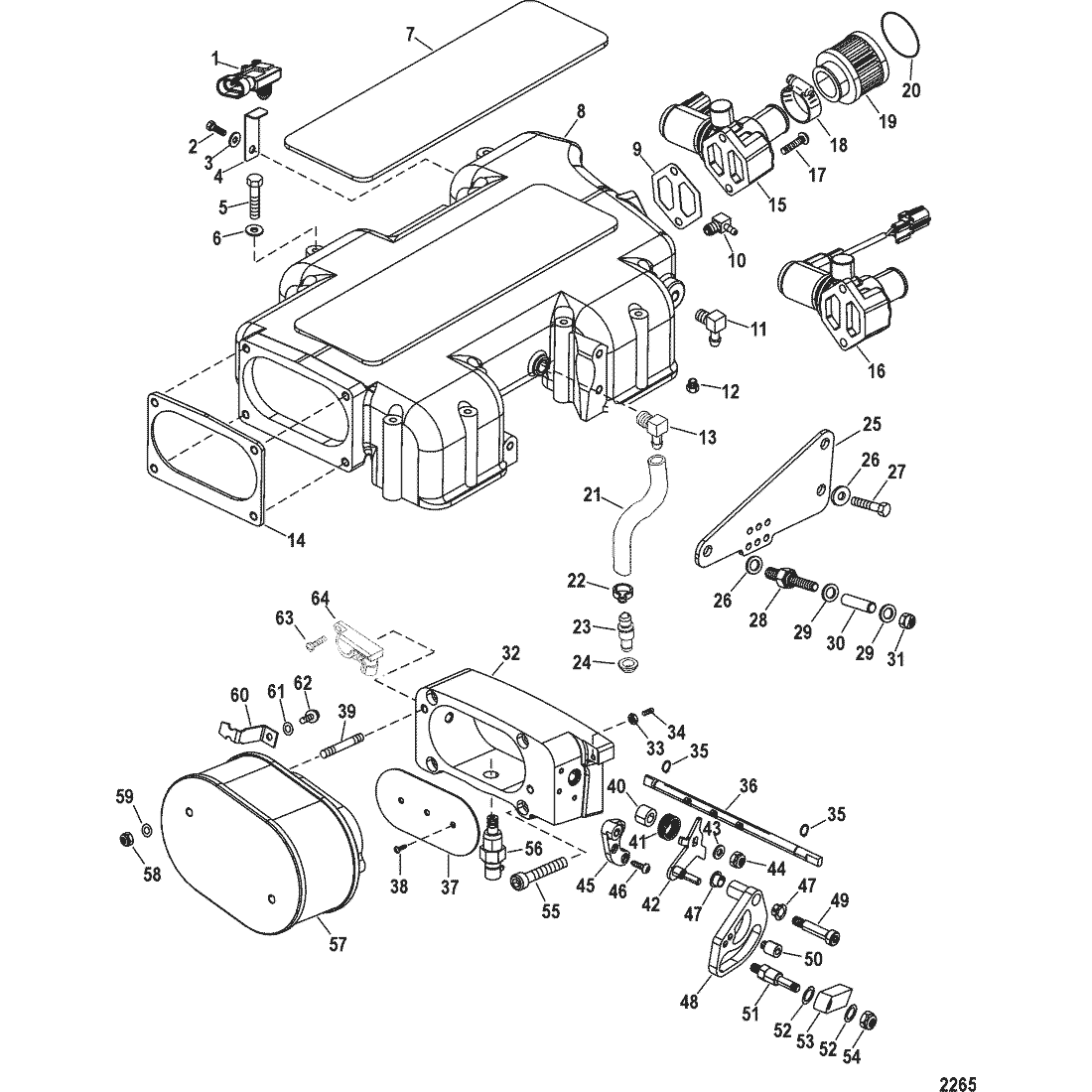

1 854445 SENSOR, MAP, Manifold Absolute Pressure ACT $129.49 $116.75 1
2 847401 SCREW, (#10-24 x .380) ACT $1.50 $1.47 1
3 30164 WASHER, (.192 x .375 x .0312) Stainless Steel ACT $2.49 $2.43 1
4 8M0061478 BRACKET, MAP Sensor Mount 840981 SS $4.09 $4.00 1
5 71319 SCREW, (.250-20 x 3.750) ACT $6.09 $6.01 12
6 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 12
7 840944 NAMEPLATE, Top Of Plenum ACT $377.32 $349.21 1
8 840922T03 PLENUM ASSEMBLY, Blue NLA $0.00 $0.00 1
9 8M0119616 --GASKET, Idle Air Valve To Plenum 863112 SS $3.09 $3.01 1
10 196881 --FITTING, (90 Degree) ACT $94.49 $88.84 1
11 73817 --CONNECTOR, (90 Degree) ACT $21.79 $21.36 1
12 328022 --PLUG, Pipe (.125-27) Brass ACT $7.59 $7.42 1
13 687271 --FITTING, (.250-18) 90 Degree - Brass ACT $31.99 $31.34 1
14 841156 --GASKET, Throttle Body To Plenum ACT $8.18 $8.06 1
15 892313T02 VALVE KIT, Idle Air - Blue 841117A01 SS $323.41 $308.83 1
16 892313T02 VALVE ASSEMBLY, Idle Air - Blue NLA $323.41 $308.83 1
17 64074 SCREW, (.250-28 x .620) ACT $11.29 $11.02 2
18 841213 CLAMP, Worm Gear NLA $0.00 $0.00 1
19 841168T ARRESTOR, Idle Air NLA $0.00 $0.00 1
20 841211 DECAL, Idle Air Arrestor ACT $16.32 $16.09 1
21 8M0042521 HOSE, (7.00 Inches) 844172019 SS $12.49 $12.19 1
22 848764 CLAMP, (21 mm) ACT $3.99 $3.91 1
23 8M0099429 VALVE ASSEMBLY, Crankcase Vent 848578 SS $31.09 $30.53 1
24 811553 GROMMET, Intake Manifold ACT $83.49 $78.40 1
25 843447 PLATE, Throttle Cable Anchor ACT $35.27 $34.77 1
26 8M0204690 WASHER, (.344 x .688 x .065) Stainless Steel 814806 SS $1.80 $1.76 3
27 90285 SCREW, (.312-18 x .625) ACT $1.80 $1.76 2
28 843445 STUD, (.250-28/.312-18 x 2.070) NLA $0.00 $0.00 1
29 69056 WASHER, (.255 x .625 x .0312) 21631 SS $1.80 $1.76 2
30 31866 SPACER, (.256 x .313 x .625) ACT $5.69 $5.56 1
31 826709109 NUT, (.250-28) Stainless Steel ACT $3.59 $3.50 1
32 840920T04 THROTTLE BODY ASSEMBLY, Blue, Also Includes Gasket 27-841156 ACT $1,921.50 $1,720.48 1
33 68219 --NUT, (#10-32) Stainless Steel ACT $2.99 $2.92 1
34 843444 --SET SCREW, (#10-32) NLA $0.00 $0.00 1
35 92170 --RING, Snap NLA $0.00 $0.00 2
36 843423 --SHAFT, Throttle ACT $279.51 $258.69 1
37 841219 --BLADE, Throttle NLA $0.00 $0.00 1
38 840118 --SCREW, (#8-32 x .380) ACT $3.69 $3.59 3
39 8M0034442 --STUD, (.312-24 x 6.375) 843427 SS $12.29 $12.12 2
40 849992 SPACER, Throttle Body NLA $0.00 $0.00 1
41 844226 SPRING, Throttle Return NLA $0.00 $0.00 1
42 8434381 ARM, Cam Follower ACT $64.47 $61.60 1
43 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 1
44 8M0204726 NUT, (.375-24) Stainless Steel 826709113 SS $1.80 $1.76 1
45 843439 BRACKET, Pivot Mount ACT $49.05 $48.34 1
46 843443 SCREW, (#10-32 x .630) ACT $0.82 $0.81 3
47 26954 BUSHING ACT $5.89 $5.76 2
48 8M0027533 CAM, Throttle - Blue, Throttle 843452 NLA $340.87 $315.47 1
49 843442 SHOULDER SCREW, .312-18 x 1.750) NLA $0.00 $0.00 1
50 67748 ROLLER ACT $6.99 $6.83 1
51 843446 STUD, (.250-20/.250-28), Throttle Cable ACT $50.97 $48.71 1
52 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 2
53 842459 END, Cable ACT $38.77 $38.22 1
54 826709109 NUT, (.250-28) Stainless Steel ACT $3.59 $3.50 1
55 844997 SCREW, (M8 x 60) ACT $4.17 $4.12 4
56 805223T SENSOR, Intake Air Temperature ACT $160.99 $145.07 1
57 840921T02 ARRESTOR ASSEMBLY, Flame 840921T01 SS $0.00 $0.00 1
58 826709111 NUT, (.312-24) Stainless Steel ACT $4.49 $4.39 2
59 8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel 70132 SS $1.80 $1.76 2
60 843121 BRACKET, Vent Tube NLA $0.00 $0.00 1
61 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 1
62 85486 SCREW, (.250-20 x .380) Stainless Steel ACT $1.80 $1.76 1
63 805400 SCREW, (#8-32 x .500) Stainless Steel ACT $1.70 $1.66 2
64 849903 SENSOR, Throttle Position ACT $255.35 $236.32 1
- 843073A06 GASKET/SEAL SET, Engine Overhaul 843073A03 SS $1,787.87 $1,600.83 1
- 841178A1 PARTIAL ENGINE ASSEMBLY NLA $0.00 $0.00 1
