Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

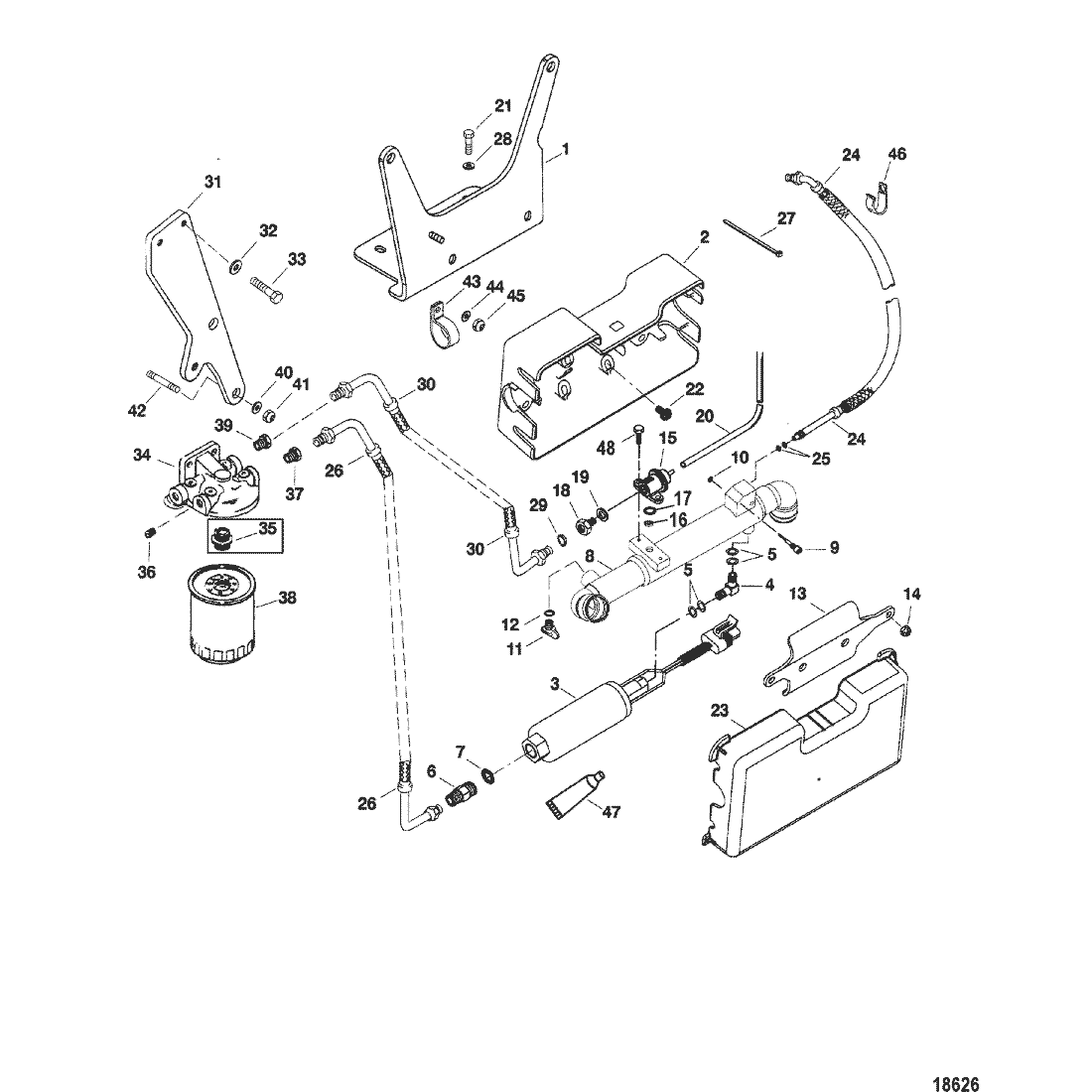

1 8M0050909 BRACKET, Fuel Cooler 849904T SS $0.00 $0.00 1
2 807685T3 INSULATOR, Base ACT $155.32 $148.42 1
3 849930T02 PUMP ASSEMBLY, Fuel, With Reference Numbers 5 And 7 849930T1 SS $906.91 $852.96 1
4 807783A1 FITTING ASSEMBLY, 90 Degree ACT $42.99 $42.14 1
5 8M0204683 --O-RING, (.301 x .070) 805063 SS $2.79 $2.72 4
6 808001A1 FITTING ASSEMBLY ACT $34.99 $34.24 1
7 805062 --O-RING, (.530 x .082) ACT $4.19 $4.10 1
8 8M0125854 COOLER KIT, Fuel 849929A1 SS $563.28 $529.78 1
9 866114 --SCREW, (.250-28) Special 861303 SS $6.89 $6.73 1
10 861414 --RING, Retaining ACT $1.10 $1.08 1
11 8M0119211 --PLUG KIT, (.500-13) Royal Blue, Drain 806608A1 SS $10.19 $9.95 1
12 32509 ----O-RING, (.489 x .070) ACT $2.39 $2.33 1
13 807979T BRACKET ACT $114.49 $107.59 1
14 29598 NUT, (.250-28) Stainless Steel ACT $2.89 $2.82 2
15 861126A1 REGULATOR KIT, (43 PSI), Fuel Pressure ACT $202.49 $190.31 1
16 805406 --FILTER, Fuel Pressure Regulator ACT $6.89 $6.73 1
17 805531 --O-RING, (.476 x .075) ACT $5.59 $5.47 1
18 8080021 FITTING, Stainless Steel ACT $81.52 $79.13 1
19 36533 WASHER, (.328 x .562 x .0312) Copper ACT $1.50 $1.47 1
20 8M0063567 HOSE, (52.00 Inches Bulk), Cut As Required - To Intake Manifold 80617379 SS $37.99 $37.20 1
21 64014 SCREW, (.250-28 x .500) ACT $1.82 $1.79 4
22 269011 BUMPER, Rubber ACT $3.99 $3.91 8
23 807930T01 INSULATOR, Fuel Cooler Cover 807930 SS $31.79 $31.18 1
24 8M0050923 LINE ASSEMBLY, Fuel, To Fuel Rail 849891T SS $165.71 $158.35 1
25 8M0204683 O-RING, (.301 x .070) 805063 SS $2.79 $2.72 2
26 849871 LINE ASSEMBLY, Fuel, Seperator To Pump 849871T SS $85.50 $82.99 1
27 816311T TIE STRAP, (8.00 Inches) ACT $0.60 $0.59 AR
28 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 4
29 848438 GASKET, Flare ACT $4.24 $4.19 1
30 849870 LINE ASSEMBLY, Fuel, Regulator To Pump 849870T SS $0.00 $0.00 1
31 8492261 BRACKET, Seperator ACT $143.49 $134.90 1
32 8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel 70132 SS $1.80 $1.76 2
33 849377 SCREW, (.312-24 x .750) Stainless Steel ACT $15.13 $14.92 2
34 89876A3 BASE ASSEMBLY, Fuel Filter/Water Seperator ACT $67.49 $64.77 1
35 816133 --FITTING 8161331 SS $13.19 $12.88 1
36 8M0204652 --PLUG, Pipe - Allen Head (.250-18) 32561 SS $6.79 $6.64 1
37 808003 CONNECTOR ACT $29.49 $28.97 1
38 802893Q01 FILTER, Fuel/Water Separator 807172 SS $19.79 $19.31 1
39 33821 CONNECTOR ACT $9.69 $9.46 1
40 45176 WASHER, (.453 x .812 x .105) Stainless Steel ACT $1.50 $1.47 2
41 859135 NUT, (.437-20) 817618 SS $6.09 $5.95 2
42 8M0133358 STUD, (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 1
43 62494 CLIP, Hose Support ACT $7.49 $7.32 1
44 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 1
45 82670912 NUT, (.375-16) 68411 SS $6.79 $6.64 1
46 848183 J CLIP, Port - Fuel Line To Mount ACT $18.69 $18.24 2
47 8M0082339 COMPOUND, Heat Transfer (6 Grams) 805701 NLA $8.99 $8.77 AR
48 852368 SCREW, (#10-24 x .750) ACT $1.70 $1.66 2
- 842129A1 GASKET/SEAL SET, Engine Overhaul NLA $0.00 $0.00 1
