| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

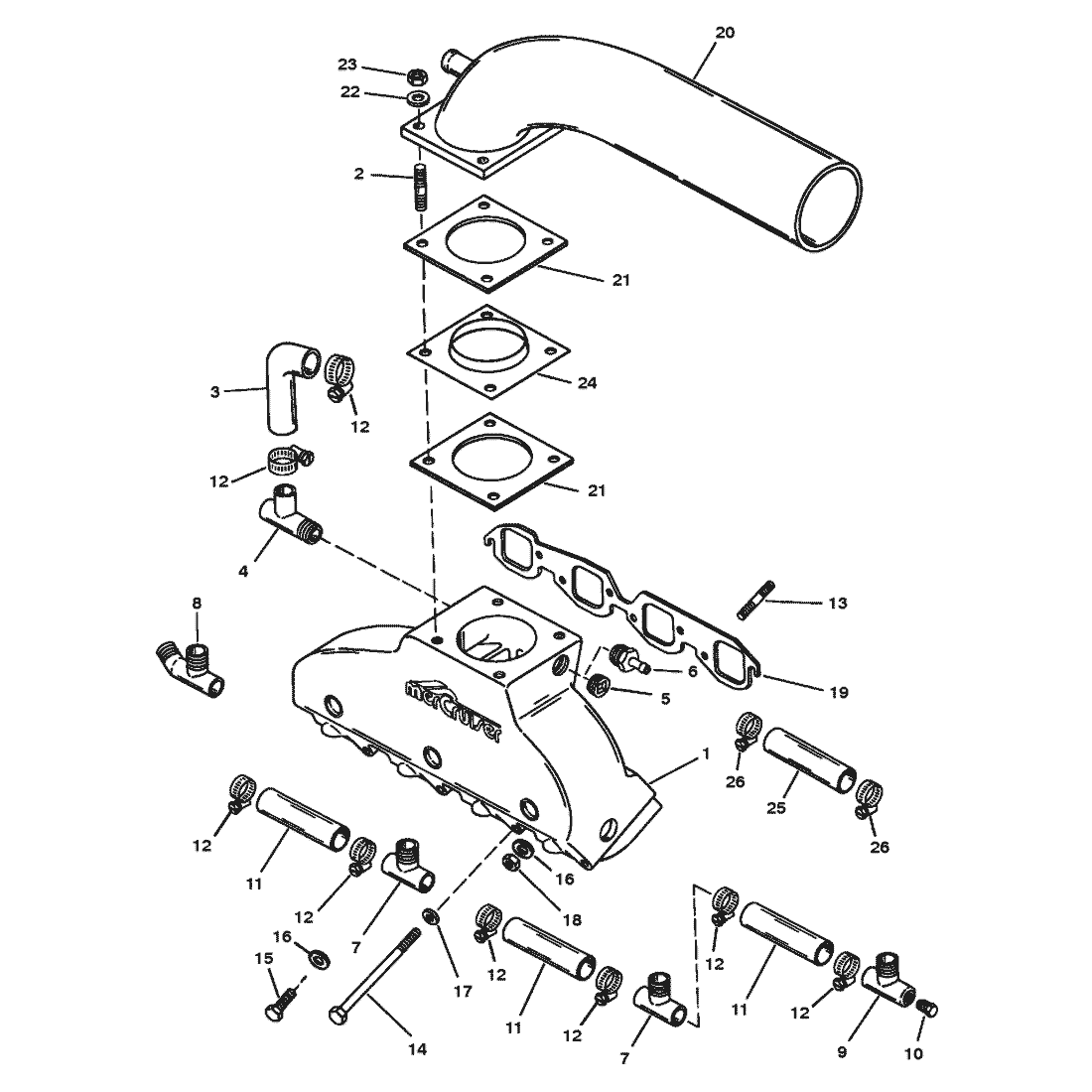

| 1 | 8M0084206 | MANIFOLD ASSEMBLY-Exhaust (PORT) | 814901A5 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 814901T6 | MANIFOLD ASSEMBLY-Exhaust (STARBOARD) | 814901A6 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | 815214 | --STUD | ACT | $14.77 | $14.55 | 8 | |||
| 3 | 8152121 | --HOSE-Manifold to Exhaust Pipe | ACT | $103.68 | $99.07 | 2 | |||
| 4 | 816035 | --FITTING | ACT | $220.88 | $211.07 | 2 | |||
| 5 | 815203 | --PLUG-Pipe | NLA |
|
$0.00 | $0.00 | 2 | ||
| 6 | 818768 | --FITTING (Straight) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 7 | 815208 | --FITTING-Tee | NLA |
|
$0.00 | $0.00 | 4 | ||
| 8 | 815210 | --FITTING-Tee | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 815209 | --FITTING-Tee | NLA |
|
$0.00 | $0.00 | 2 | ||
| 10 | 815211 | --PLUG-Pipe-Drain | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 815215 | --HOSE | NLA |
|
$0.00 | $0.00 | 6 | ||
| 12 | 815207 | --CLAMP | NLA |
|
$0.00 | $0.00 | 16 | ||
| 13 | 821279 | --STUD (2.187 In.) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 14 | 821107 | --SCREW (.375-16 x 3.00) | ACT | $8.29 | $8.17 | 8 | |||
| 15 | 812567 | --SCREW (.375-16 x 1.625) | ACT | $11.59 | $11.32 | 4 | |||
| 16 | 20572 | --WASHER | ACT | $1.60 | $1.57 | 8 | |||
| 17 | 37828 | --WASHER | ACT | $0.80 | $0.79 | 8 | |||
| 18 | 25269 | --NUT (.375-24) | NLA |
|
$3.15 | $3.08 | 4 | ||
| 19 | 46820 | GASKET-Exhaust Manifold to Head | ACT | $24.29 | $23.82 | 2 | |||
| 20 | 818498A1 | ELBOW KIT-Exhaust (STANDARD) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 20 | 818499A1 | ELBOW KIT-Exhaust (3.00 In.) | NLA |
|
$0.00 | $0.00 | OPT | ||
| 20 | 818500A1 | ELBOW KIT-Exhaust (6.00 In.) | NLA |
|
$0.00 | $0.00 | OPT | ||
| 21 | 848147 | --GASKET-Exhaust Elbow | ACT | $38.48 | $37.94 | 2 | |||
| 22 | 49112 | --WASHER | NLA |
|
$0.00 | $0.00 | 8 | ||
| 23 | 82670912 | --NUT (.375-16) | 68411 | SS |
|
$6.79 | $6.64 | 8 | |
| 24 | 816037 | --PLATE-Diffuser | ACT | $198.80 | $189.97 | 2 | |||
| 25 | 688941 | --HOSE-Bulk (Cut 6.00 In.) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 8M0188618 | --CLAMP | 815504105 | SS |
|
$4.09 | $4.00 | 2 | |
| 6 | 818768 | --FITTING (Straight) | NLA |
|
$0.00 | $0.00 | 2 | ||
| - | 818572A98 | Gasket Set | 818572A96 | SS |
|
$0.00 | $0.00 | - |
