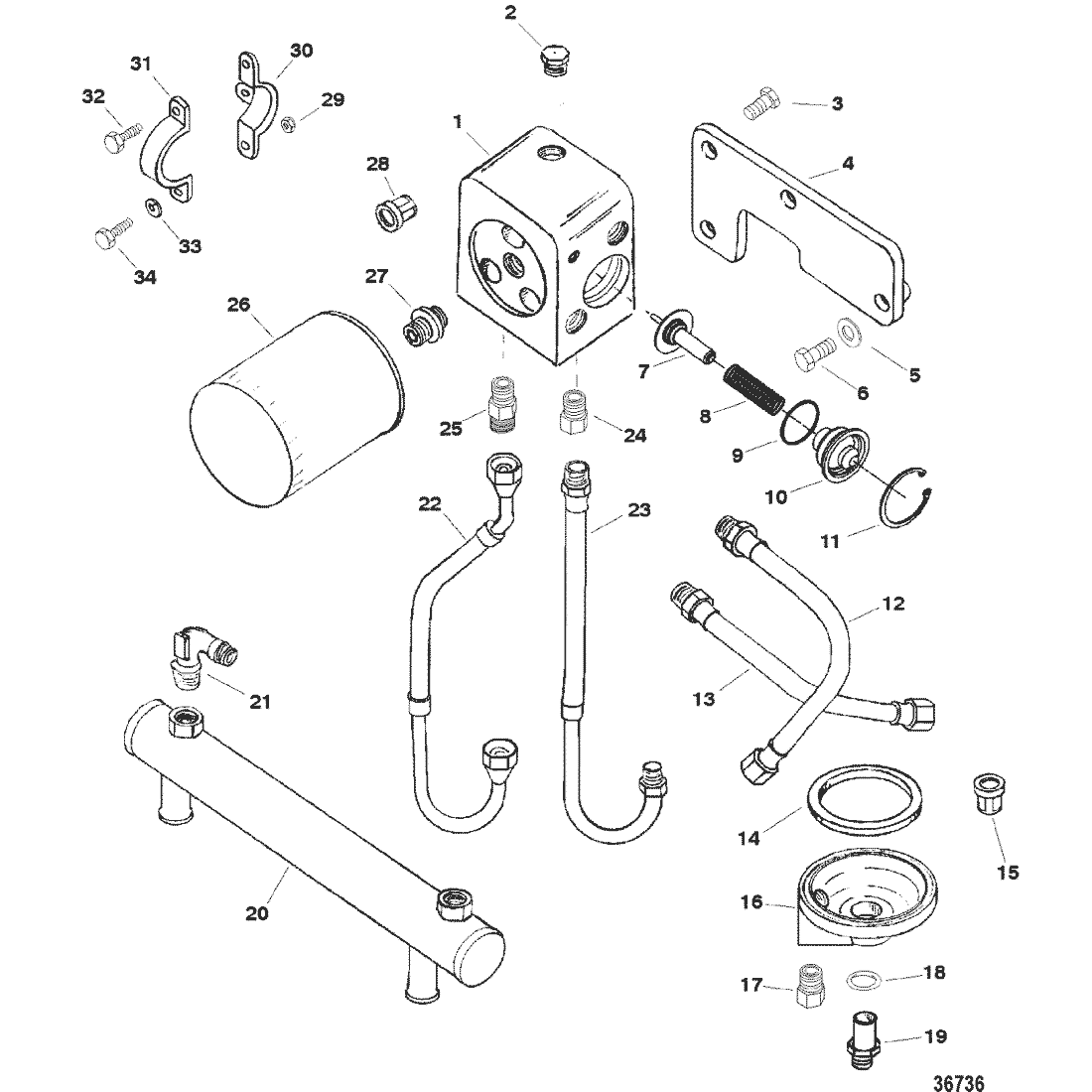

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 848555T | ADAPTOR, Oil Filter | ACT | $385.99 | $357.01 | 1 | |||
| 2 | 32804 | PLUG, (.500-14) | ACT | $17.09 | $16.68 | 1 | |||
| 3 | 99204 | SCREW, (.437-14 x 1.00) Stainless Steel | ACT | $5.09 | $4.98 | 2 | |||
| 4 | 8485562 | BRACKET, Oil Adaptor | ACT | $165.26 | $152.95 | 1 | |||
| 5 | 45176 | WASHER, (.453 x .812 x .105) Stainless Steel | ACT | $1.50 | $1.47 | 2 | |||
| 6 | 825427 | SCREW, (.437-14 x 1.250) Stainless Steel | ACT | $6.99 | $6.83 | 2 | |||
| 7 | 8M0231826 | THERMOSTAT | 816163 | SS |
|
$84.38 | $80.64 | 1 | |
| 8 | 816162 | SPRING | ACT | $8.49 | $8.29 | 1 | |||
| 9 | 864701 | O-RING, (1.112 x .103) | 47632 | SS |
|
$3.59 | $3.50 | 1 | |
| 10 | 8M0096522 | COVER, Oil Thermostat | 8161651 | SS |
|
$31.00 | $30.57 | 1 | |
| 11 | 848571 | RING, Retaining, Snap | ACT | $19.74 | $19.46 | 1 | |||
| 12 | 8485742 | HOSE ASSEMBLY (14.500 Inches) | ACT | $110.24 | $102.02 | 1 | |||
| 13 | 8485741 | HOSE ASSEMBLY (13.380 Inches) | ACT | $87.49 | $82.17 | 1 | |||
| 14 | 91892 | GASKET | SS |
|
$0.00 | $0.00 | 1 | ||
| 15 | 807211 | VALVE, Relief, By Pass | ACT |
|
$25.79 | $25.29 | 1 | ||
| 16 | 818400A1 | ADAPTOR | ACT |
|
$88.99 | $83.74 | 1 | ||
| 17 | 805563 | --CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | ACT | $17.89 | $17.46 | 1 | |||
| 18 | 42077 | SEAL, Swivel Tube | ACT | $12.49 | $12.19 | 1 | |||
| 19 | 806121 | FITTING | ACT | $31.19 | $30.61 | 1 | |||
| 20 | 848192T | COOLER, Oil | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 8M0186076 | ELBOW, 90 Degree | 706811 | SS |
|
$12.83 | $12.65 | 2 | |
| 22 | 848573 | HOSE ASSEMBLY | ACT |
|
$134.99 | $121.48 | 1 | ||
| 23 | 848572 | HOSE ASSEMBLY | ACT |
|
$103.99 | $93.69 | 1 | ||
| 24 | 805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | ACT | $17.89 | $17.46 | 1 | |||
| 25 | 806186 | FITTING | ACT | $56.99 | $53.58 | 1 | |||
| 26 | 16595Q | FILTER, Oil | 16595T | SS |
|
$20.79 | $20.38 | 1 | |
| 27 | 805632 | CONNECTOR, Oil Fitler | ACT | $47.99 | $47.00 | 1 | |||
| 28 | 99889 | VALVE, By Pass | ACT |
|
$39.99 | $39.20 | 1 | ||
| 29 | 30506 | NUT, (.250-28) | ACT |
|
$3.19 | $3.11 | 4 | ||
| 30 | 8161951 | BRACKET, Oil Cooler | NLA |
|
$0.00 | $0.00 | 2 | ||
| 30 | 8M0192189 | BRACKET, Oil Cooler | 12820 | SS |
|
$51.99 | $48.89 | 2 | |
| 31 | 56328A1 | BRACKET, Oil Cooler | ACT |
|
$24.29 | $23.82 | 2 | ||
| 32 | 805559 | SCREW, (.375-16 x .875) Stainless Steel | ACT | $10.29 | $10.05 | 2 | |||
| 33 | 26992 | LOCKWASHER, (.250) Stainless Steel | ACT | $1.20 | $1.18 | 4 | |||
| 34 | 49668 | SCREW, (.250-20 x .750) | ACT | $1.10 | $1.08 | 4 | |||
| 34 | 69028 | SCREW, (.250-28 x .750) Stainless Steel | ACT |
|
$2.89 | $2.82 | 4 | ||
| - | 818572A98 | GASKET SET, Engine Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
