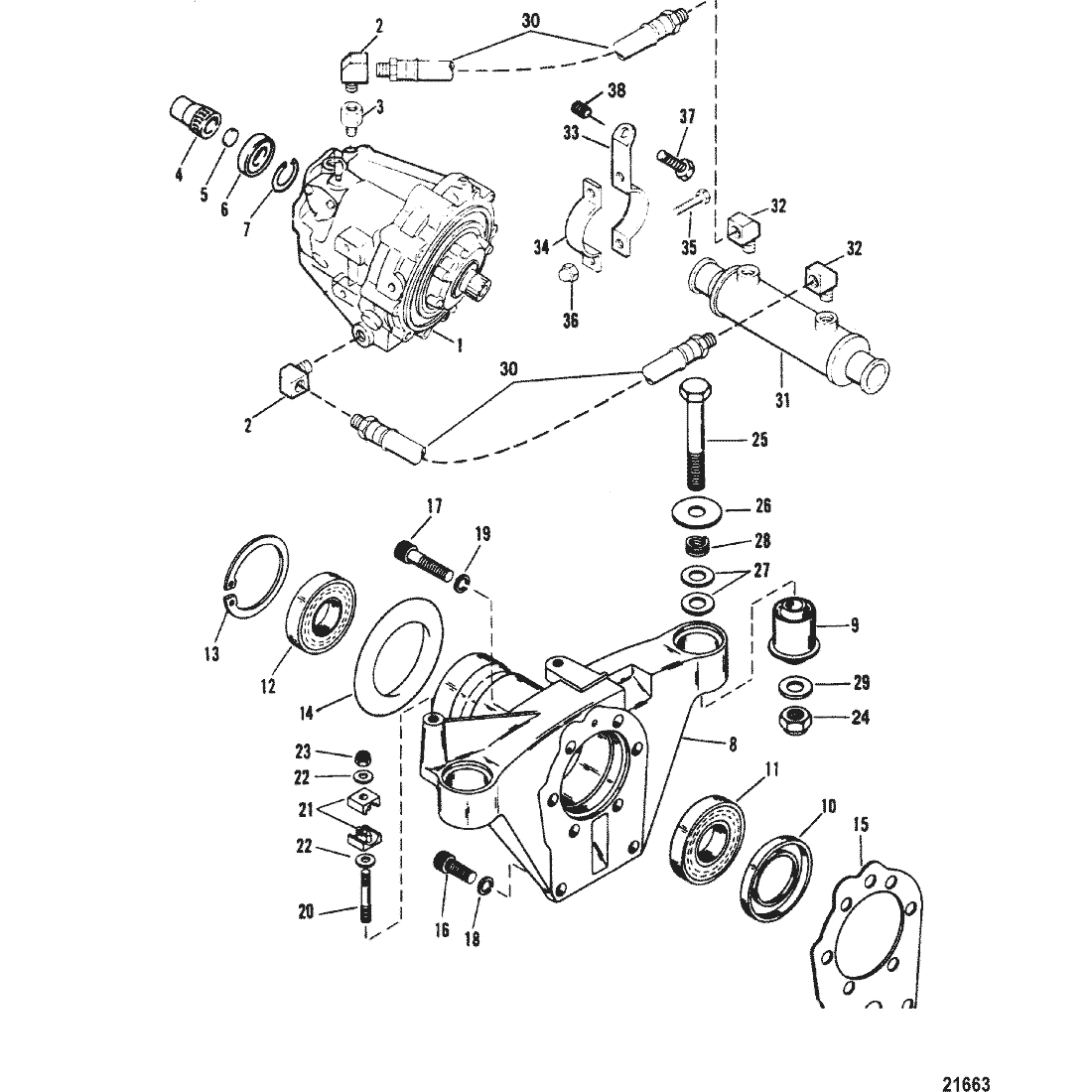

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 47754A9 | TRANSMISSION ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 22-47629 | --ELBOW, 90 Degree | ACT | $18.17 | $17.84 | 2 | |||
| 3 | 22-88517 | --FITTING, Reducing | ACT | $18.60 | $18.14 | 1 | |||
| 4 | 57758A2 | --COUPLING ASSEMBLY, Engine To Transmission | ACT |
|
$1,059.90 | $942.72 | 1 | ||
| 5 | 19-47463 | ----EXPANSION PLUG | ACT | $11.90 | $11.61 | 1 | |||
| 6 | 30-47470 | ----BEARING, Ball | ACT | $149.92 | $141.18 | 1 | |||
| 7 | 53-47469 | ----RING | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 98322A2 | --TAILSTOCK ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 35852 | ----MOUNT | SS |
|
$0.00 | $0.00 | 2 | ||
| 10 | 26-47465 | ----SEAL, Oil | ACT | $29.00 | $28.48 | 1 | |||
| 11 | 30-57762T | ----BEARING, Ball (3.156) | 57762 | SS/ACT |
|
$120.75 | $113.72 | 1 | |
| 12 | 30-32537T | ----BEARING, Ball (2.843) | 32537 | SS/ACT |
|
$98.92 | $95.14 | 1 | |
| 13 | 53-54481 | ----RING | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | 25-54067 | ----SEAL | ACT | $17.70 | $17.26 | 1 | |||
| 15 | 27-47903 | --GASKET | ACT | $10.30 | $10.05 | 1 | |||
| 16 | 10-29081 | --SCREW, (.437-14 x 1.250) | ACT | $5.00 | $4.88 | 6 | |||
| 17 | 10-99524 | --SCREW, (.437-14 x 2.00) | ACT | $10.30 | $10.04 | 2 | |||
| 18 | 13-30381 | --LOCKWASHER, Hi Collar (.437) | ACT | $4.76 | $4.63 | 6 | |||
| 19 | 13-32993 | --LOCKWASHER, (.437) | ACT | $1.60 | $1.57 | 2 | |||
| 20 | 16-99801 | STUD | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 41058 | CLAMP BLOCK, Shift Cable | SS |
|
$0.00 | $0.00 | 2 | ||
| 22 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | ACT | $1.70 | $1.66 | 2 | |||
| 23 | 11-35888 | NUT, (.250-28) Stainless Steel | ACT | $6.60 | $6.44 | 1 | |||
| 24 | 11-8M0214915 | NUT, (.625-18) | 22339 | SS/ACT |
|
$8.10 | $7.90 | 2 | |
| 25 | 10-47467 | SCREW, (.625-18 x 5.500) | ACT | $19.40 | $18.92 | 2 | |||
| 26 | 12-47475 | WASHER, (1.120 x 2.250 x .19) | ACT | $5.20 | $5.08 | 2 | |||
| 27 | 12-47466 | WASHER, (1.125 x 1.750 x .16), Neoprene | ACT | $7.50 | $7.32 | 4 | |||
| 28 | 13-34846 | LOCKWASHER, Thackeray Spring (.636) | ACT | $1.40 | $1.37 | 2 | |||
| 29 | 12-33171 | WASHER, (.6406 x 1.750 x .125) | ACT | $4.90 | $4.78 | 2 | |||
| 30 | 32-475166 | HOSE ASSEMBLY, (30.00 Inches) | ACT | $132.33 | $124.62 | 2 | |||
| 31 | 63832A1 | COOLER, Transmission Oil | ACT | $685.64 | $645.06 | 1 | |||
| 32 | 22-63835 | ELBOW, 45 Degree | ACT | $22.67 | $22.26 | 1 | |||
| 32 | 22-47629 | ELBOW, 90 Degree | ACT | $18.17 | $17.84 | 1 | |||
| 33 | 63820T1 | BRACKET, Long | SS |
|
$0.00 | $0.00 | 1 | ||
| 34 | 56328A1 | BRACKET, Short | ACT | $23.33 | $22.92 | 3 | |||
| 35 | 10-60300 | SCREW, (.250-28 x .750) | ACT | $4.80 | $4.69 | 2 | |||
| 36 | 11-30506 | NUT, (.250-28) | ACT | $3.10 | $3.03 | 2 | |||
| 37 | 10-35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625) | ACT | $1.50 | $1.47 | 1 | |||
| 38 | 22-325611 | PLUG, Pipe, Bracket Mounting | ACT |
|
$18.88 | $18.61 | 1 |
