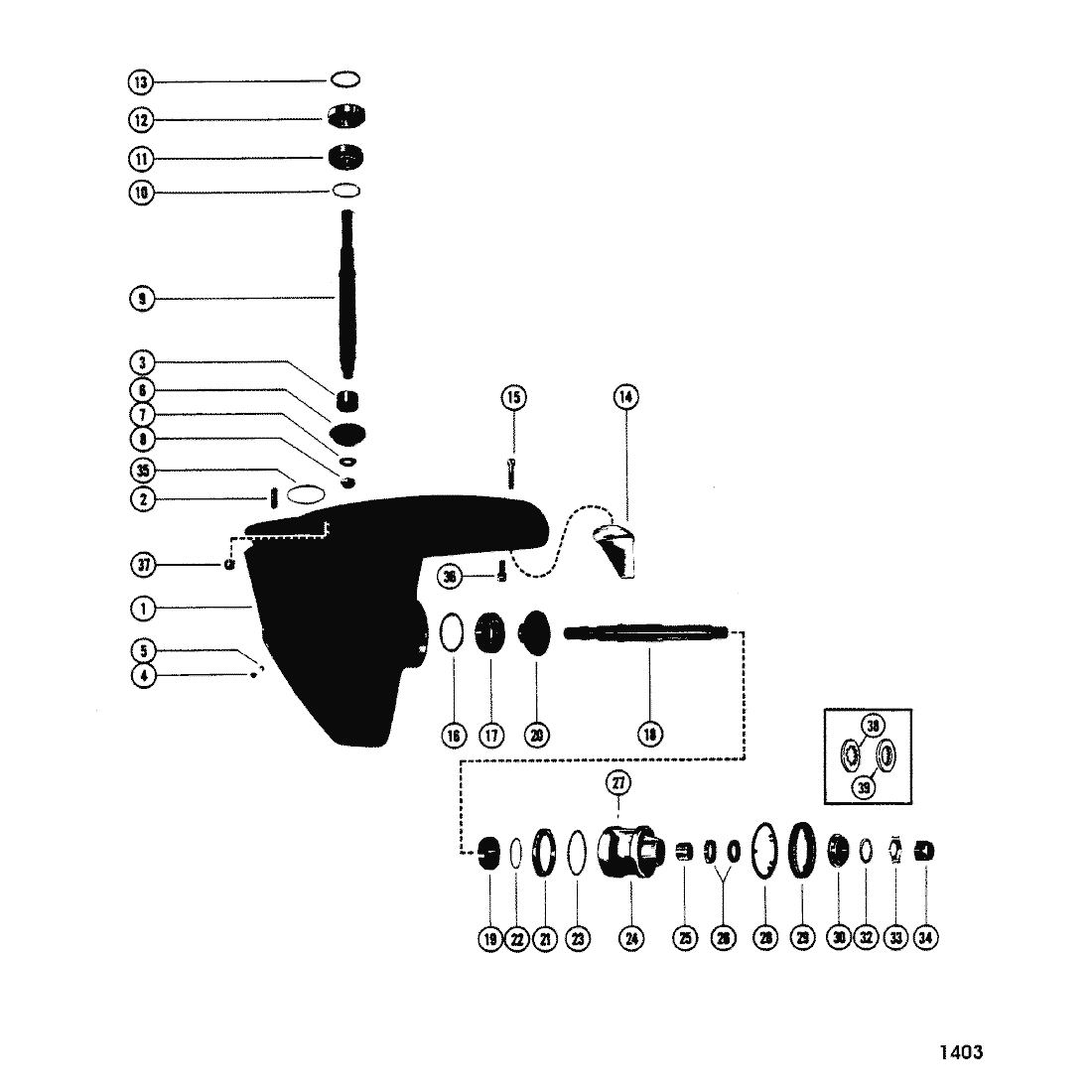

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| -- | 1646-5321A14 | GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION) | SS |
 |
$0.00 | $0.00 | 1 | ||
| -- | 1646-5321A13 | GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND RATATION) | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 1646-5321A6 | --GEAR HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 16-8M0041668 | --STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING (1-7/8") | ACT | $14.90 | $14.53 | 1 | |||
| 3 | 31-68290A1 | --BEARING, DRIVE SHAFT | ACT | $208.75 | $196.58 | 1 | |||
| 4 | 10-79953Q04 | --SCREW, (.375-16 x .250), VENT - GEAR HOUSING | 79953 | SS/ACT |
|
$7.20 | $7.03 | 1 | |
| 5 | 12-191833 | --WASHER, VENT SCREW | 20260 | SS/ACT |
|
$1.40 | $1.37 | 1 | |
| 6 | 43-70934T1 | --GEAR (16 TEETH) | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 12-54048 | --WASHER | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 11-55819 | --NUT, PINION GEAR TO DRIVE SHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 45-66666 | --DRIVESHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 15-66672A1 | --SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING | ACT | $11.97 | $11.66 | AR | |||
| 11 | 31-66670A1 | --BEARING ASSEMBLY, Roller, DRIVE SHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 31-68266A1 | --BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT | ACT | $102.50 | $96.53 | 1 | |||
| 13 | 25-54030 | --O-RING, (2.987 x .103), GEAR HOUSING | ACT | $5.70 | $5.56 | 1 | |||
| 14 | 31640Q4 | --TRIM TAB ASSEMBLY, GEAR HOUSING | 31640A1 | SS/ACT |
|
$17.92 | $17.60 | 1 | |
| 15 | 10-41350 | --SCREW, (.437-14 x 2.50) Stainless Steel, TRIM TAB TO GEAR HOUSING (2-1/2") | ACT | $26.33 | $25.86 | 1 | |||
| 16 | 15-47397A1 | --SHIM SET, ROLLER BEARING (LEFT HAND ROTATION) | ACT | $19.30 | $18.82 | AR | |||
| 17 | 31-35928T1 | --BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION) | 35928A1 | SS/ACT |
|
$87.92 | $84.56 | 1 | |
| 18 | 44-92327T1 | --PROPELLER SHAFT (LEFT HAND ROTATION) | ACT/SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 31-8M0103470 | --BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION) | 66668A1 | SS/ACT |
|
$44.25 | $43.45 | 1 | |
| 16 | 15-36178A02 | --SHIM ASSEMBLY, ROLLER BEARING (RIGHT HAND ROTATION) | 39899A1 | SS/ACT |
|
$17.30 | $16.87 | AR | |
| 17 | 31-68266A1 | --BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION) | ACT | $102.50 | $96.53 | 1 | |||
| 18 | 44-92328 | --PROPELLER SHAFT (RIGHT HAND ROTATION) | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 31-35928T1 | --BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION) | 35928A1 | SS/ACT |
|
$87.92 | $84.56 | 1 | |
| 20 | 43-70933 | --GEAR (18 TEETH) | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | 12-66667 | --THRUST RING | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 67440T | --LOAD RING, THRUST RING | ACT | $40.17 | $39.44 | 1 | |||
| 23 | 25-8M0214920 | --O-RING, BEARING CARRIER | 31534 | SS/ACT |
|
$6.10 | $5.95 | 1 | |
| 24 | 66663A1 | --CARRIER ASSEMBLY, Bearing | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 31-30956T | ----BEARING, Needle, BEARING CARRIER | 30956 | SS/ACT |
|
$20.43 | $19.93 | 1 | |
| 26 | 26-8M0204670 | ----SEAL, BEARING CARRIER | 76868 | SS/ACT |
|
$18.50 | $18.04 | 2 | |
| 27 | 28-30281 | --KEY, LOCATING - BEARING CARRIER | ACT | $2.90 | $2.83 | 1 | |||
| 28 | 14-79447 | --TAB WASHER, GEAR HOUSING COVER | ACT | $13.20 | $12.88 | 1 | |||
| 29 | 8M2011027 | --RETAINER, GEAR HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 92950 | THRUST HUB | SS |
|
$0.00 | $0.00 | 1 | ||
| 32 | 12-31211Q03 | WASHER, Splined, BEARING HUB | 31211A2 | SS/ACT |
|
$14.11 | $13.87 | 1 | |
| 33 | 14-816629Q | TAB WASHER, PROPELLER NUT | 31210 | SS/ACT |
|
$5.62 | $5.52 | 1 | |
| 34 | 11-52707Q1 | PROP NUT KIT, (.750-16), PROPELLER | 52707A1 | SS/ACT |
|
$15.63 | $15.36 | 1 | |
| 35 | 25-54029 | O-RING, (2.800 x .103), GEAR HOUSING | ACT | $4.00 | $3.91 | 1 | |||
| 36 | 10-47557 | SCREW, (.500-13 x 1.500), GEAR HOUSING (1-1/2") | SS |
|
$0.00 | $0.00 | 1 | ||
| 37 | 11-8M0204653 | NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD | 34933 | SS/ACT |
|
$5.10 | $4.98 | 1 | |
| 38 | 12-39701 | WASHER, SPLINED | ACT |
|
$14.41 | $14.14 | 1 | ||
| 39 | 12-39698 | WASHER, FLAT | ACT |
|
$14.41 | $14.14 | 1 |
